GN 2262 Rigid Couplings Aluminum, Slotted, for High Rotational Speeds

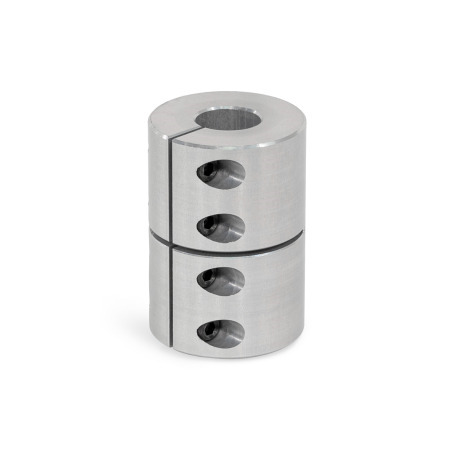

Rigid Couplings GN 2262: Aluminum, Slotted, for High Rotational Speeds

Bore code: B - Without keyway

Couplings - Overview of Types Keyways WN 6885 / DIN 6885-1 ISO Fundamental Tolerances

Product description

Rigid couplings GN 2262 connect supported shafts or are used as couplings for shaft extensions. They transmit angular positions at high speeds precisely and with zero backlash, without compensating for alignment errors and runout tolerances. The slotted design makes them very easy to install.

With the bore code K, the keyway is always integrated into both bores d₂ and d₃.

Specification

Coupling
AluminumAL
Anodized finish, natural color

Socket cap screws ISO 4762
Steel, blackened finish

Operating temperature
-40 °F to +212 °F (-40 °C to +100 °C)

RoHS

GN 2262 Aluminum Rigid Couplings, Slotted, for High Rotational Speeds sketch

Hide technical drawing

Part Options / Table

Bore code

B	Without keyway
K	With keyway

Part Number B - Without keyway	Part Number K - With keyway	d₁	d₂ -d₃ H8 Recommended shaft tolerance h7	d₄	l₁	l₂ Max. shaft insertion depth	l₃	Tightening torque of the screws in Nm ≈	Rated torque in Nm	Max. rotational speed (min^-1)	Moment of inertia in kgm²


2262-16-B6-6-AL	2262-16-K6-6-AL	0.63	6-6 H8 / h7	M 2	0.87	0.43	0.20	0.5	1	39000	3.4 x 10^{^-7}
2262-20-B8-8-AL	2262-20-K8-8-AL	0.79	8-8 H8 / h7	M 2	0.94	0.47	0.28	0.5	2.5	31000	9.2 x 10^{^-7}
2262-25-B10-10-AL	2262-25-K10-10-AL	0.98	10-10 H8 / h7	M 2.5	1.42	0.71	0.35	1	4.5	25000	3.4 x 10^{^-6}
2262-25-B12-12-AL	2262-25-K12-12-AL	0.98	12-12 H8 / h7	M 2.5	1.42	0.71	0.35	1	4.5	25000	3.4 x 10^{^-6}
2262-32-B14-14-AL	2262-32-K14-14-AL	1.26	14-14 H8 / h7	M 3	1.57	0.79	0.43	1.5	10	19000	1 x 10^{^-5}
2262-32-B15-15-AL	2262-32-K15-15-AL	1.26	15-15 H8 / h7	M 3	1.57	0.79	0.43	1.5	10	19000	1 x 10^{^-5}

Show / Hide columns

Metric

Dimensions in: Inch (change to Metric)

d₁	d₂ -d₃ H8 Recommended shaft tolerance h7	d₄	l₁	l₂ Max. shaft insertion depth	l₃	Tightening torque of the screws in Nm ≈	Rated torque in Nm	Max. rotational speed (min^-1)	Moment of inertia in kgm²

0.63	6-6	M 2	0.87	0.43	0.20	0.5	1	39000	3.4 x 10^{^-7}
0.79	8-8	M 2	0.94	0.47	0.28	0.5	2.5	31000	9.2 x 10^{^-7}
0.98	10-10	M 2.5	1.42	0.71	0.35	1	4.5	25000	3.4 x 10^{^-6}
0.98	12-12	M 2.5	1.42	0.71	0.35	1	4.5	25000	3.4 x 10^{^-6}
1.26	14-14	M 3	1.57	0.79	0.43	1.5	10	19000	1 x 10^{^-5}
1.26	15-15	M 3	1.57	0.79	0.43	1.5	10	19000	1 x 10^{^-5}
