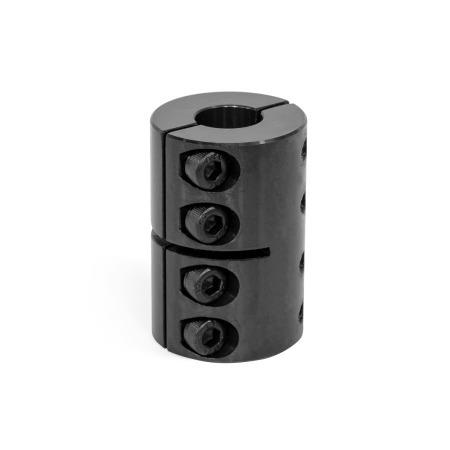

Rigid Couplings GN 2264

Bore code: B - Without keyway
Material: ST - Steel

Product Family Stainless Steel

Standard parts made of rustproof stainless steel have been designed for use in the food sector, in the chemical industry, for aggressive ambient conditions or for outdoor use.

corrosion-resistant
precise fit
environmentally friendly

Show all Stainless Steel products

Couplings - Overview of Types Keyways WN 6885 / DIN 6885-1 ISO Fundamental Tolerances Stainless Steel Characteristics

Product description

Rigid couplings GN 2264 connect supported shafts or are used as couplings for shaft extensions. They transmit angular positions and high torques precisely and with zero backlash, without compensating for alignment errors and runout tolerances. Due to their split design, they can be used where axial mounting is not possible.

With the bore code K, the keyway is always integrated into both bores d₂ and d₃. For applications with strong vibrations, thread locking is recommended for the clamping screws.

Specification

Coupling

SteelST
Blackened finish
Stainless steelNI AISI 303
Plain finish

Socket cap screws ISO 4762

Steel, blackened finish for ST
Stainless steel A2 for NI

Operating temperature
-40 °F to +347 °F (-40 °C to +175 °C)

RoHS

Your Contact

You are looking for a Winco partner near you?

Part Number B - Without keyway	Part Number K - With keyway	d₁	d₂ - d₃ H7	d₄	l₁ ±0.04	l₂ Max. shaft insertion depth	l₃	Tightening torque of the screws in Nm≈ ST	NI	Rated torque in Nm ST	NI	Max. rotational speed (min^-1)	Moment of inertia in kgm² ST	NI

2264-18-B6-6-ST	2264-18-K6-6-ST	0.71	6-6 H7	M 3	1.18 ±0.04	0.57	0.22	2	-	30	-	4000	1.75 x 10^{^-6}	-
2264-24-B8-8-ST	2264-24-K8-8-ST	0.94	8-8 H7	M 3	1.38 ±0.04	0.67	0.33	3	-	50	-	4000	7.21 x 10^{^-6}	-
2264-29-B10-10-ST	2264-29-K10-10-ST	1.14	10-10 H7	M 4	1.77 ±0.04	0.85	0.39	4.5	-	100	-	4000	1.97 x 10^{^-5}	-
2264-29-B12-12-ST	2264-29-K12-12-ST	1.14	12-12 H7	M 4	1.77 ±0.04	0.85	0.39	4.5	-	100	-	4000	1.97 x 10^{^-5}	-
2264-34-B14-14-ST	2264-34-K14-14-ST	1.34	14-14 H7	M 5	1.97 ±0.04	0.94	0.45	9	-	190	-	4000	3.82 x 10^{^-5}	-
2264-34-B15-15-ST	2264-34-K15-15-ST	1.34	15-15 H7	M 5	1.97 ±0.04	0.94	0.45	9	-	190	-	4000	3.82 x 10^{^-5}	-
2264-34-B16-16-ST	2264-34-K16-16-ST	1.34	16-16 H7	M 5	1.97 ±0.04	0.94	0.45	9	-	190	-	4000	3.82 x 10^{^-5}	-
2264-42-B20-20-ST	2264-42-K20-20-ST	1.65	20-20 H7	M 6	2.56 ±0.04	1.24	0.63	15	-	350	-	4000	1.25 x 10^{^-4}	-
2264-45-B25-25-ST	2264-45-K25-25-ST	1.77	25-25 H7	M 6	2.95 ±0.04	1.44	0.69	15	-	390	-	4000	1.97 x 10^{^-4}	-
2264-53-B30-30-ST	2264-53-K30-30-ST	2.09	30-30 H7	M 6	3.27 ±0.04	1.59	0.81	15	-	475	-	4000	4.23 x 10^{^-4}	-
2264-67-B35-35-ST	2264-67-K35-35-ST	2.64	35-35 H7	M 8	3.74 ±0.04	1.83	0.98	40	-	1100	-	4000	1.23 x 10^{^-3}	-
2264-77-B40-40-ST	2264-77-K40-40-ST	3.03	40-40 H7	M 8	4.25 ±0.04	2.09	1.18	40	-	1325	-	4000	2.51 x 10^{^-3}	-
2264-85-B50-50-ST	2264-85-K50-50-ST	3.35	50-50 H7	M 10	4.88 ±0.04	2.40	1.30	84	-	2250	-	4000	4.09 x 10^{^-3}	-

Part Number B - Without keyway	Part Number K - With keyway	d₁	d₂ - d₃ H7	d₄	l₁ ±0.04	l₂ Max. shaft insertion depth	l₃	Tightening torque of the screws in Nm≈ ST	NI	Rated torque in Nm ST	NI	Max. rotational speed (min^-1)	Moment of inertia in kgm² ST	NI

2264-18-B6-6-NI	2264-18-K6-6-NI	0.71	6-6 H7	M 3	1.18 ±0.04	0.57	0.22	-	1.6	-	25	4000	-	1.78 x 10^{^-6}
2264-24-B8-8-NI	2264-24-K8-8-NI	0.94	8-8 H7	M 3	1.38 ±0.04	0.67	0.33	-	1.6	-	40	4000	-	7.31 x 10^{^-6}
2264-29-B10-10-NI	2264-29-K10-10-NI	1.14	10-10 H7	M 4	1.77 ±0.04	0.85	0.39	-	3.9	-	90	4000	-	1.99 x 10^{^-5}
2264-29-B12-12-NI	2264-29-K12-12-NI	1.14	12-12 H7	M 4	1.77 ±0.04	0.85	0.39	-	3.9	-	90	4000	-	1.99 x 10^{^-5}
2264-34-B14-14-NI	2264-34-K14-14-NI	1.34	14-14 H7	M 5	1.97 ±0.04	0.94	0.45	-	7.6	-	160	4000	-	3.87 x 10^{^-5}
2264-34-B15-15-NI	2264-34-K15-15-NI	1.34	15-15 H7	M 5	1.97 ±0.04	0.94	0.45	-	7.6	-	160	4000	-	3.87 x 10^{^-5}
2264-34-B16-16-NI	2264-34-K16-16-NI	1.34	16-16 H7	M 5	1.97 ±0.04	0.94	0.45	-	7.6	-	160	4000	-	3.87 x 10^{^-5}
2264-42-B20-20-NI	2264-42-K20-20-NI	1.65	20-20 H7	M 6	2.56 ±0.04	1.24	0.63	-	13.2	-	300	4000	-	1.26 x 10^{^-4}
2264-45-B25-25-NI	2264-45-K25-25-NI	1.77	25-25 H7	M 6	2.95 ±0.04	1.44	0.69	-	13.2	-	325	4000	-	1.99 x 10^{^-4}
2264-53-B30-30-NI	2264-53-K30-30-NI	2.09	30-30 H7	M 6	3.27 ±0.04	1.59	0.81	-	13.2	-	400	4000	-	4.29 x 10^{^-4}
2264-67-B35-35-NI	2264-67-K35-35-NI	2.64	35-35 H7	M 8	3.74 ±0.04	1.83	0.98	-	32	-	925	4000	-	1.25 x 10^{^-3}
2264-77-B40-40-NI	2264-77-K40-40-NI	3.03	40-40 H7	M 8	4.25 ±0.04	2.09	1.18	-	32	-	1100	4000	-	2.54 x 10^{^-3}
2264-85-B50-50-NI	2264-85-K50-50-NI	3.35	50-50 H7	M 10	4.88 ±0.04	2.40	1.30	-	63	-	1875	4000	-	4.14 x 10^{^-3}

d₁	d₂ - d₃ H7	d₄	l₁ ±0.04	l₂ Max. shaft insertion depth	l₃	Tightening torque of the screws in Nm≈ ST	NI	Rated torque in Nm ST	NI	Max. rotational speed (min^-1)	Moment of inertia in kgm² ST	NI

0.71	6-6	M 3	1.18	0.57	0.22	2	1.6	30	25	4000	1.75 x 10^{^-6}	1.78 x 10^{^-6}
0.94	8-8	M 3	1.38	0.67	0.33	3	1.6	50	40	4000	7.21 x 10^{^-6}	7.31 x 10^{^-6}
1.14	10-10	M 4	1.77	0.85	0.39	4.5	3.9	100	90	4000	1.97 x 10^{^-5}	1.99 x 10^{^-5}
1.14	12-12	M 4	1.77	0.85	0.39	4.5	3.9	100	90	4000	1.97 x 10^{^-5}	1.99 x 10^{^-5}
1.34	14-14	M 5	1.97	0.94	0.45	9	7.6	190	160	4000	3.82 x 10^{^-5}	3.87 x 10^{^-5}
1.34	15-15	M 5	1.97	0.94	0.45	9	7.6	190	160	4000	3.82 x 10^{^-5}	3.87 x 10^{^-5}
1.34	16-16	M 5	1.97	0.94	0.45	9	7.6	190	160	4000	3.82 x 10^{^-5}	3.87 x 10^{^-5}
1.65	20-20	M 6	2.56	1.24	0.63	15	13.2	350	300	4000	1.25 x 10^{^-4}	1.26 x 10^{^-4}
1.77	25-25	M 6	2.95	1.44	0.69	15	13.2	390	325	4000	1.97 x 10^{^-4}	1.99 x 10^{^-4}
2.09	30-30	M 6	3.27	1.59	0.81	15	13.2	475	400	4000	4.23 x 10^{^-4}	4.29 x 10^{^-4}
2.64	35-35	M 8	3.74	1.83	0.98	40	32	1100	925	4000	1.23 x 10^{^-3}	1.25 x 10^{^-3}
3.03	40-40	M 8	4.25	2.09	1.18	40	32	1325	1100	4000	2.51 x 10^{^-3}	2.54 x 10^{^-3}
3.35	50-50	M 10	4.88	2.40	1.30	84	63	2250	1875	4000	4.09 x 10^{^-3}	4.14 x 10^{^-3}
