Rigid Couplings GN 2260

Bore code: B - Without keyway
Material: ST - Steel

Product Family Stainless Steel

Standard parts made of rustproof stainless steel have been designed for use in the food sector, in the chemical industry, for aggressive ambient conditions or for outdoor use.

corrosion-resistant
precise fit
environmentally friendly

Show all Stainless Steel products

Couplings - Overview of Types Keyways WN 6885 / DIN 6885-1 ISO Fundamental Tolerances Stainless Steel Characteristics

Product description

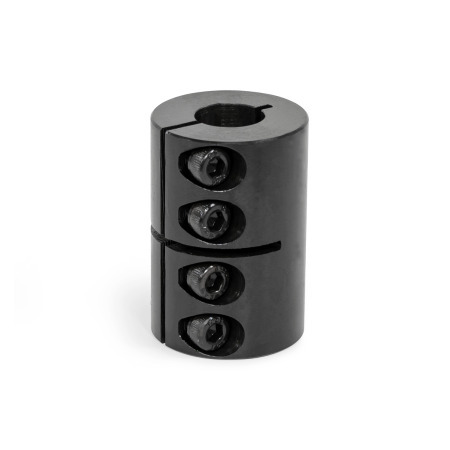

Rigid couplings GN 2260 connect supported shafts or are used as couplings for shaft extensions. They transmit angular positions and high torques precisely and with zero backlash, without compensating for alignment errors and runout tolerances. The slotted design makes them very easy to install.

With the bore code K, the keyway is always integrated into both bores d₂ and d₃. For applications with strong vibrations, thread locking is recommended for the clamping screws.

Specification

Coupling

SteelST
Blackened finish
Stainless steelNI AISI 303
Plain finish

Socket cap screws ISO 4762

Steel, blackened finish for ST
Stainless steel A2 for NI

Operating temperature
-40 °F to +347 °F (-40 °C to +175 °C)

RoHS

Your Contact

You are looking for a Winco partner near you?

Part Number B - Without keyway	Part Number K - With keyway	d₁	d₂ - d₃ H7	d₄	l₁ ±0.04	l₂ Max. shaft insertion depth	l₃	Tightening torque of the screws in Nm≈ ST	NI	Rated torque in Nm ST	NI	Max. rotational speed (min^-1)	Moment of inertia in kgm² ST	NI

2260-18-B6-6-ST	2260-18-K6-6-ST	0.71	6-6 H7	M 3	1.18 ±0.04	0.57	0.22	2	-	30	-	157.48	2.02 x 10^{^-6}	-
2260-24-B8-8-ST	2260-24-K8-8-ST	0.94	8-8 H7	M 3	1.38 ±0.04	0.67	0.33	3	-	50	-	157.48	7.91 x 10^{^-6}	-
2260-29-B10-10-ST	2260-29-K10-10-ST	1.14	10-10 H7	M 4	1.77 ±0.04	0.85	0.39	4.5	-	100	-	157.48	2.16 x 10^{^-5}	-
2260-29-B12-12-ST	2260-29-K12-12-ST	1.14	12-12 H7	M 4	1.77 ±0.04	0.85	0.39	4.5	-	100	-	157.48	2.16 x 10^{^-5}	-
2260-34-B14-14-ST	2260-34-K14-14-ST	1.34	14-14 H7	M 5	1.97 ±0.04	0.94	0.45	9	-	190	-	157.48	4.33 x 10^{^-5}	-
2260-34-B15-15-ST	2260-34-K15-15-ST	1.34	15-15 H7	M 5	1.97 ±0.04	0.94	0.45	9	-	190	-	157.48	4.33 x 10^{^-5}	-
2260-34-B16-16-ST	2260-34-K16-16-ST	1.34	16-16 H7	M 5	1.97 ±0.04	0.94	0.45	9	-	190	-	157.48	4.12 x 10^{^-5}	-
2260-42-B20-20-ST	2260-42-K20-20-ST	1.65	20-20 H7	M 6	2.56 ±0.04	1.24	0.63	15	-	350	-	157.48	1.37 x 10^{^-4}	-
2260-45-B25-25-ST	2260-45-K25-25-ST	1.77	25-25 H7	M 6	2.95 ±0.04	1.44	0.69	15	-	390	-	157.48	2.12 x 10^{^-4}	-
2260-53-B30-30-ST	2260-53-K30-30-ST	2.09	30-30 H7	M 6	3.27 ±0.04	1.59	0.81	15	-	475	-	157.48	4.51 x 10^{^-4}	-
2260-67-B35-35-ST	2260-67-K35-35-ST	2.64	35-35 H7	M 8	3.74 ±0.04	1.83	0.98	40	-	1100	-	157.48	1.33 x 10^{^-3}	-
2260-77-B40-40-ST	2260-77-K40-40-ST	3.03	40-40 H7	M 8	4.25 ±0.04	2.09	1.18	40	-	1325	-	157.48	2.65 x 10^{^-3}	-
2260-85-B50-50-ST	2260-85-K50-50-ST	3.35	50-50 H7	M 10	4.88 ±0.04	2.40	1.30	84	-	2250	-	157.48	4.36 x 10^{^-3}	-

Part Number B - Without keyway	Part Number K - With keyway	d₁	d₂ - d₃ H7	d₄	l₁ ±0.04	l₂ Max. shaft insertion depth	l₃	Tightening torque of the screws in Nm≈ ST	NI	Rated torque in Nm ST	NI	Max. rotational speed (min^-1)	Moment of inertia in kgm² ST	NI

2260-18-B6-6-NI	2260-18-K6-6-NI	0.71	6-6 H7	M 3	1.18 ±0.04	0.57	0.22	-	1.6	-	25	157.48	-	2.04 x 10^{^-6}
2260-24-B8-8-NI	2260-24-K8-8-NI	0.94	8-8 H7	M 3	1.38 ±0.04	0.67	0.33	-	1.6	-	40	157.48	-	8.01 x 10^{^-6}
2260-29-B10-10-NI	2260-29-K10-10-NI	1.14	10-10 H7	M 4	1.77 ±0.04	0.85	0.39	-	3.9	-	90	157.48	-	2.19 x 10^{^-5}
2260-29-B12-12-NI	2260-29-K12-12-NI	1.14	12-12 H7	M 4	1.77 ±0.04	0.85	0.39	-	3.9	-	90	157.48	-	2.19 x 10^{^-5}
2260-34-B14-14-NI	2260-34-K14-14-NI	1.34	14-14 H7	M 5	1.97 ±0.04	0.94	0.45	-	7.6	-	160	157.48	-	4.39 x 10^{^-5}
2260-34-B15-15-NI	2260-34-K15-15-NI	1.34	15-15 H7	M 5	1.97 ±0.04	0.94	0.45	-	7.6	-	160	157.48	-	4.38 x 10^{^-5}
2260-34-B16-16-NI	2260-34-K16-16-NI	1.34	16-16 H7	M 5	1.97 ±0.04	0.94	0.45	-	7.6	-	160	157.48	-	4.38 x 10^{^-5}
2260-42-B20-20-NI	2260-42-K20-20-NI	1.65	20-20 H7	M 6	2.56 ±0.04	1.24	0.63	-	13.2	-	300	157.48	-	1.39 x 10^{^-4}
2260-45-B25-25-NI	2260-45-K25-25-NI	1.77	25-25 H7	M 6	2.95 ±0.04	1.44	0.69	-	13.2	-	325	157.48	-	2.15 x 10^{^-4}
2260-53-B30-30-NI	2260-53-K30-30-NI	2.09	30-30 H7	M 6	3.27 ±0.04	1.59	0.81	-	13.2	-	400	157.48	-	4.57 x 10^{^-4}
2260-67-B35-35-NI	2260-67-K35-35-NI	2.64	35-35 H7	M 8	3.74 ±0.04	1.83	0.98	-	32	-	925	157.48	-	1.34 x 10^{^-3}
2260-77-B40-40-NI	2260-77-K40-40-NI	3.03	40-40 H7	M 8	4.25 ±0.04	2.09	1.18	-	32	-	1100	157.48	-	2.69 x 10^{^-3}
2260-85-B50-50-NI	2260-85-K50-50-NI	3.35	50-50 H7	M 10	4.88 ±0.04	2.40	1.30	-	63	-	1875	157.48	-	1.41 x 10^{^-3}

d₁	d₂ - d₃ H7	d₄	l₁ ±0.04	l₂ Max. shaft insertion depth	l₃	Tightening torque of the screws in Nm≈ ST	NI	Rated torque in Nm ST	NI	Max. rotational speed (min^-1)	Moment of inertia in kgm² ST	NI

0.71	6-6	M 3	1.18	0.57	0.22	2	1.6	30	25	157.48	2.02 x 10^{^-6}	2.04 x 10^{^-6}
0.94	8-8	M 3	1.38	0.67	0.33	3	1.6	50	40	157.48	7.91 x 10^{^-6}	8.01 x 10^{^-6}
1.14	10-10	M 4	1.77	0.85	0.39	4.5	3.9	100	90	157.48	2.16 x 10^{^-5}	2.19 x 10^{^-5}
1.14	12-12	M 4	1.77	0.85	0.39	4.5	3.9	100	90	157.48	2.16 x 10^{^-5}	2.19 x 10^{^-5}
1.34	14-14	M 5	1.97	0.94	0.45	9	7.6	190	160	157.48	4.33 x 10^{^-5}	4.39 x 10^{^-5}
1.34	15-15	M 5	1.97	0.94	0.45	9	7.6	190	160	157.48	4.33 x 10^{^-5}	4.38 x 10^{^-5}
1.34	16-16	M 5	1.97	0.94	0.45	9	7.6	190	160	157.48	4.12 x 10^{^-5}	4.38 x 10^{^-5}
1.65	20-20	M 6	2.56	1.24	0.63	15	13.2	350	300	157.48	1.37 x 10^{^-4}	1.39 x 10^{^-4}
1.77	25-25	M 6	2.95	1.44	0.69	15	13.2	390	325	157.48	2.12 x 10^{^-4}	2.15 x 10^{^-4}
2.09	30-30	M 6	3.27	1.59	0.81	15	13.2	475	400	157.48	4.51 x 10^{^-4}	4.57 x 10^{^-4}
2.64	35-35	M 8	3.74	1.83	0.98	40	32	1100	925	157.48	1.33 x 10^{^-3}	1.34 x 10^{^-3}
3.03	40-40	M 8	4.25	2.09	1.18	40	32	1325	1100	157.48	2.65 x 10^{^-3}	2.69 x 10^{^-3}
3.35	50-50	M 10	4.88	2.40	1.30	84	63	2250	1875	157.48	4.36 x 10^{^-3}	1.41 x 10^{^-3}
