Product description

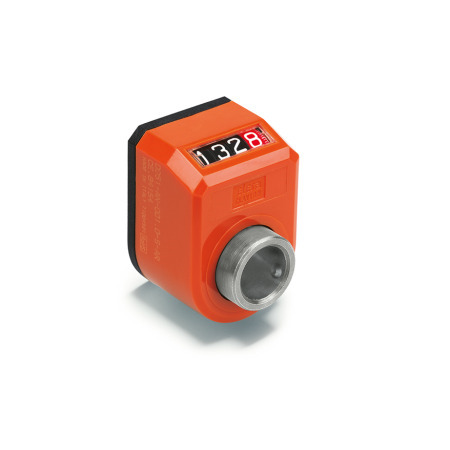

Digital position indicators EN 954.2 have a direct coupled drive with digital indications. The digits are easy to read and appear enlarged due to the magnifying effect of the viewing window.
Both housing sections are ultrasonically welded, making the housing particularly stable and compact. The foam rubber seal prevents the transmission of vibration to the counter and serves as a seal.
Specification
Housing
Plastic, Polyamide (PA)
- Color
- Orange, RAL 2004, shiny finishOR
- Gray, RAL 7035, shiny finishGR
- Black-gray, RAL 7021, shiny finishSG
- Orange, RAL 2004, shiny finishOR
- Operating temperature
32 °F to 176 °F (0 °C to +80 °C) - Oil and solvent resistant
Sight glass
Plastic, polyamide (PA-T), transparent
Counter
- White numbers
- Black number wheels integers
- Red decimals with additional scale
Shaft receptacle
Stainless steel AISI 303
Sealed with an O-ring
Set screw DIN 916
Stainless steel AISI 303
RoHS
Accessory
Mounting Adaptors EN 952.1
Spacer Plate EN 954.1
Clamping Plates GN 954.7
Control Knobs GN 957
Control Knobs EN 957.1
On request
Other counter indication
