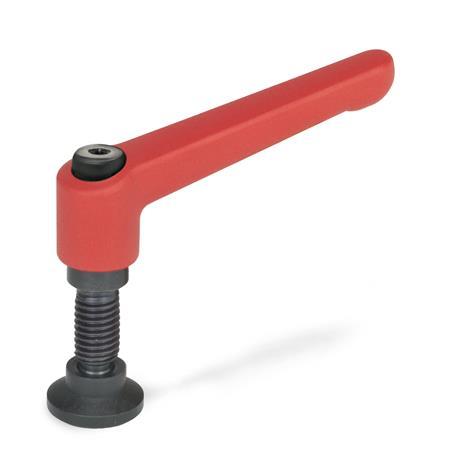

Type: KD - Ball end with swivel thrust pad
Product description
Adjustable levers GN 306 have proven to be ideal wherever parts have to be clamped in a confined space or in a particular lever position. The insert is connected to the lever via serrations that can easily be disengaged.
Pulling the lever upwards disengages the serrations, allowing it to be swiveled to the ideal clamping position. When releasing the lever, the serrations automatically re-engage.

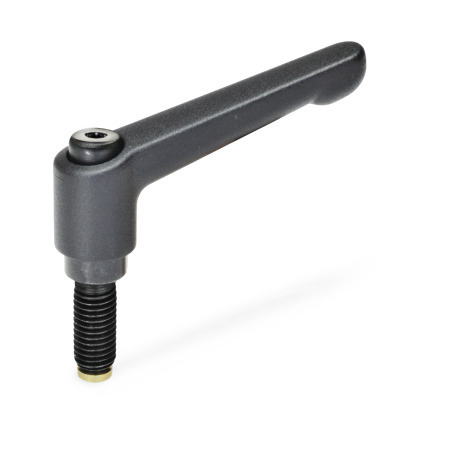

The brass and plastic tipped studs (types MS / KU) help to avoid damage to the workpiece being clamped.
The hardened tipped stud (type DZ) provides an oval point-shaped pressure point.
The swivel thrust pad (type KD) is easily clipped on and taken off. Thrust pads are supplied unmounted.
Specification
Lever body
Zinc die-cast
Powder coated
- Black, RAL 9005, textured finishSW
- Orange, RAL 2004, textured finishOS
- Red, RAL 3000, textured finishRS
- Silver, RAL 9006, textured finishSR
Threaded stud / Retaining screw
Steel (5.8), blackened finish
Thrust point
- Brass for type MS
- Plastic, Polyacetal (POM) for type KU
- Steel, hardened (oval point) for type DZ
Thrust pad for type KD
Plastic, Polyacetal (POM)
- Operating temperature up to 176 °F (80 °C)
- Black, matte finish
RoHS
On request
- Inch threads
- Threaded stud in stainless steel
- Straight lever (GN 302)
