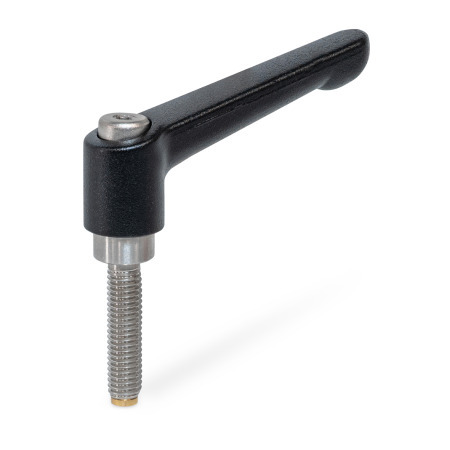

Adjustable levers GN 306 are used in devices for tool-free clamping, pressing or fixation. To achieve a convenient clamping position, the handle can be lifted by the dimension h4 and then swiveled. Upon releasing, it snaps back into the serration under spring pressure.
The tip of types MSN / KUN helps prevent pressure marks or damage to the clamped workpiece.
The thrust pad of types KDN / RDN enlarges the contact surface to protect surfaces from damage. In combination with the spherical end, the thrust pad forms a ball joint that adapts to uneven clamping surfaces. It also prevents the rotational movement from being transferred to the clamping surface during clamping.
The rubber coating of type RDN also prevents slipping, provides a dampening effect and reduces noise. In this version, the disk is encased in vulcanized rubber to ensure high load capacity and dimensional stability.
The thrust pads are removable and are supplied unattached.
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).
Weight: 0.070 lbs
If weight is not listed, please contact our Sales Department for additional information regarding weight. Phone: 1-800-397-6993
