Digital Position Indicators EN 9534

Original design DD51 / DD52R

Installation position: R - On the chamfer, below
Color: O - Orange, RAL 2004, shiny finish

Product Family Stainless Steel

Standard parts made of rustproof stainless steel have been designed for use in the food sector, in the chemical industry, for aggressive ambient conditions or for outdoor use.

corrosion-resistant
precise fit
environmentally friendly

Show all Stainless Steel products

ISO Fundamental Tolerances Plastic Characteristics Stainless Steel Characteristics

Product description

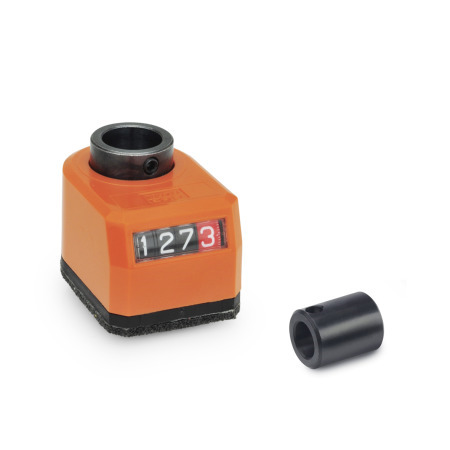

Digital position indicators EN 9534 are designed for attachment to configurable profile linear actuators. They are mounted to the spindle stud of the linear actuator using an adapter bushing and a set screw. The directly driven counter with digital position display must be matched to the pitch of the threaded spindle.

The housing is welded by ultrasound, making it particularly sturdy, tight and compact. The foam rubber seal prevents the transmission of vibration to the counter and serves as a seal.

Specification

Hollow shaft

SteelS, blackened finish
Stainless steelN AISI 303
Sealed with an O-ring

Housing
Plastic, polyamide (PA)

Orange, RAL 2004, shiny finishO
Gray, RAL 7035, shiny finishG
Operating temperature
32 °F to 176 °F (0 °C to +80 °C)
Oil and solvent resistant

Sight glass
Plastic, polyamide (PA-T), transparent

Counter

Digits white
Pre-decimal positions highlighted black
Decimal positions highlighted red
with additional scale

Adapter bushing

Steel, blackened finish for ST
Stainless steel AISI 304 for NI

Set screw DIN 916

Steel, blackened finish for S
Stainless steel for N

RoHS

Your Contact

You are looking for a Winco partner near you?

Part Number N - On the chamfer, above	Part Number R - On the chamfer, below	s Linear actuator diameter	p Spindle pitch Linear actuator	Counter	b	d₂ H7	d₃	l₁	l₂	l₃	m₁	m₂	m₃	Set screw	Max. rpm

9534-30-1.5-R-S-N-O	9534-30-1.5-R-S-R-O	1.18	0.06	001.5	1.30	0.31 H7	0.79	1.30	1.02	0.22	1.20	0.65	0.87	M 4	1500
9534-30-1.5-R-N-N-O	9534-30-1.5-R-N-R-O	1.18	0.06	001.5	1.30	0.31 H7	0.79	1.30	1.02	0.22	1.20	0.65	0.87	M 4	1500
9534-30-1.5-R-S-N-G	9534-30-1.5-R-S-R-G	1.18	0.06	001.5	1.30	0.31 H7	0.79	1.30	1.02	0.22	1.20	0.65	0.87	M 4	1500
9534-30-1.5-R-N-N-G	9534-30-1.5-R-N-R-G	1.18	0.06	001.5	1.30	0.31 H7	0.79	1.30	1.02	0.22	1.20	0.65	0.87	M 4	1500
9534-30-3-R-S-N-O	9534-30-3-R-S-R-O	1.18	0.12	003.0	1.30	0.31 H7	0.79	1.30	1.02	0.22	1.20	0.65	0.87	M 4	1500
9534-30-3-R-N-N-O	9534-30-3-R-N-R-O	1.18	0.12	003.0	1.30	0.31 H7	0.79	1.30	1.02	0.22	1.20	0.65	0.87	M 4	1500
9534-30-3-R-S-N-G	9534-30-3-R-S-R-G	1.18	0.12	003.0	1.30	0.31 H7	0.79	1.30	1.02	0.22	1.20	0.65	0.87	M 4	1500
9534-30-3-R-N-N-G	9534-30-3-R-N-R-G	1.18	0.12	003.0	1.30	0.31 H7	0.79	1.30	1.02	0.22	1.20	0.65	0.87	M 4	1500
9534-50-2-R-S-N-O	9534-50-2-R-S-R-O	1.97	0.08	0002.0	1.89	0.47 H7	1.14	1.46	1.18	0.24	1.71	0.91	1.18	M 5	625
9534-50-2-R-N-N-O	9534-50-2-R-N-R-O	1.97	0.08	0002.0	1.89	0.47 H7	1.14	1.46	1.18	0.24	1.71	0.91	1.18	M 5	625
9534-50-2-R-S-N-G	9534-50-2-R-S-R-G	1.97	0.08	0002.0	1.89	0.47 H7	1.14	1.46	1.18	0.24	1.71	0.91	1.18	M 5	625
9534-50-2-R-N-N-G	9534-50-2-R-N-R-G	1.97	0.08	0002.0	1.89	0.47 H7	1.14	1.46	1.18	0.24	1.71	0.91	1.18	M 5	625
9534-50-4-R-S-N-O	9534-50-4-R-S-R-O	1.97	0.16	0004.0	1.89	0.47 H7	1.14	1.46	1.18	0.24	1.71	0.91	1.18	M 5	625
9534-50-4-R-N-N-O	9534-50-4-R-N-R-O	1.97	0.16	0004.0	1.89	0.47 H7	1.14	1.46	1.18	0.24	1.71	0.91	1.18	M 5	625
9534-50-4-R-S-N-G	9534-50-4-R-S-R-G	1.97	0.16	0004.0	1.89	0.47 H7	1.14	1.46	1.18	0.24	1.71	0.91	1.18	M 5	625
9534-50-4-R-N-N-G	9534-50-4-R-N-R-G	1.97	0.16	0004.0	1.89	0.47 H7	1.14	1.46	1.18	0.24	1.71	0.91	1.18	M 5	625

Part Number N - On the chamfer, above	Part Number R - On the chamfer, below	s Linear actuator diameter	p Spindle pitch Linear actuator	Counter	b	d₂ H7	d₃	l₁	l₂	l₃	m₁	m₂	m₃	Set screw	Max. rpm

9534-30-1.5-L-S-N-O	9534-30-1.5-L-S-R-O	1.18	0.06	001.5	1.30	0.31 H7	0.79	1.30	1.02	0.22	1.20	0.65	0.87	M 4	1500
9534-30-1.5-L-N-N-O	9534-30-1.5-L-N-R-O	1.18	0.06	001.5	1.30	0.31 H7	0.79	1.30	1.02	0.22	1.20	0.65	0.87	M 4	1500
9534-30-1.5-L-S-N-G	9534-30-1.5-L-S-R-G	1.18	0.06	001.5	1.30	0.31 H7	0.79	1.30	1.02	0.22	1.20	0.65	0.87	M 4	1500
9534-30-1.5-L-N-N-G	9534-30-1.5-L-N-R-G	1.18	0.06	001.5	1.30	0.31 H7	0.79	1.30	1.02	0.22	1.20	0.65	0.87	M 4	1500
9534-30-3-L-S-N-O	9534-30-3-L-S-R-O	1.18	0.12	003.0	1.30	0.31 H7	0.79	1.30	1.02	0.22	1.20	0.65	0.87	M 4	1500
9534-30-3-L-N-N-O	9534-30-3-L-N-R-O	1.18	0.12	003.0	1.30	0.31 H7	0.79	1.30	1.02	0.22	1.20	0.65	0.87	M 4	1500
9534-30-3-L-S-N-G	9534-30-3-L-S-R-G	1.18	0.12	003.0	1.30	0.31 H7	0.79	1.30	1.02	0.22	1.20	0.65	0.87	M 4	1500
9534-30-3-L-N-N-G	9534-30-3-L-N-R-G	1.18	0.12	003.0	1.30	0.31 H7	0.79	1.30	1.02	0.22	1.20	0.65	0.87	M 4	1500
9534-50-2-L-S-N-O	9534-50-2-L-S-R-O	1.97	0.08	0002.0	1.89	0.47 H7	1.14	1.46	1.18	0.24	1.71	0.91	1.18	M 5	625
9534-50-2-L-N-N-O	9534-50-2-L-N-R-O	1.97	0.08	0002.0	1.89	0.47 H7	1.14	1.46	1.18	0.24	1.71	0.91	1.18	M 5	625
9534-50-2-L-S-N-G	9534-50-2-L-S-R-G	1.97	0.08	0002.0	1.89	0.47 H7	1.14	1.46	1.18	0.24	1.71	0.91	1.18	M 5	625
9534-50-2-L-N-N-G	9534-50-2-L-N-R-G	1.97	0.08	0002.0	1.89	0.47 H7	1.14	1.46	1.18	0.24	1.71	0.91	1.18	M 5	625
9534-50-4-L-S-N-O	9534-50-4-L-S-R-O	1.97	0.16	0004.0	1.89	0.47 H7	1.14	1.46	1.18	0.24	1.71	0.91	1.18	M 5	625
9534-50-4-L-N-N-O	9534-50-4-L-N-R-O	1.97	0.16	0004.0	1.89	0.47 H7	1.14	1.46	1.18	0.24	1.71	0.91	1.18	M 5	625
9534-50-4-L-S-N-G	9534-50-4-L-S-R-G	1.97	0.16	0004.0	1.89	0.47 H7	1.14	1.46	1.18	0.24	1.71	0.91	1.18	M 5	625
9534-50-4-L-N-N-G	9534-50-4-L-N-R-G	1.97	0.16	0004.0	1.89	0.47 H7	1.14	1.46	1.18	0.24	1.71	0.91	1.18	M 5	625

s Linear actuator diameter	p Spindle pitch Linear actuator	Counter	b	d₂ H7	d₃	l₁	l₂	l₃	m₁	m₂	m₃	Set screw	Max. rpm

1.18	0.06	001.5	1.30	0.31	0.79	1.30	1.02	0.22	1.20	0.65	0.87	M 4	1500
1.18	0.12	003.0	1.30	0.31	0.79	1.30	1.02	0.22	1.20	0.65	0.87	M 4	1500
1.97	0.08	0002.0	1.89	0.47	1.14	1.46	1.18	0.24	1.71	0.91	1.18	M 5	625
1.97	0.16	0004.0	1.89	0.47	1.14	1.46	1.18	0.24	1.71	0.91	1.18	M 5	625
