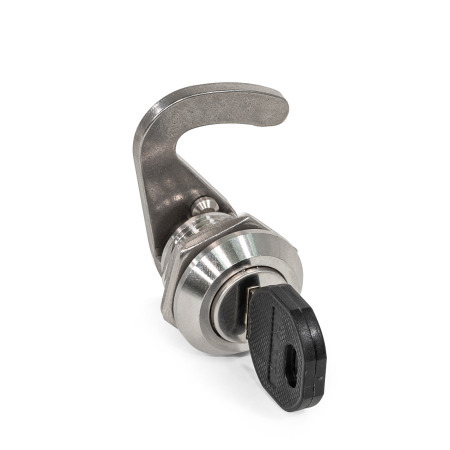

Type: SC - With key (Keyed alike)
Material: N - Stainless steel
Identification no.: 1 - Without latch bracket
Material: N - Stainless steel
Identification no.: 1 - Without latch bracket
Operating Instruction GN 115.8
Construction and Assembly Instructions
IP Protection Classes
Stainless Steel Characteristics
Product description
Cam locks with hook GN 115.8 with hook and latch bracket are mainly used for sliding doors and flaps. The locking action is in radial direction to the axis of rotation, resulting in a wide variety of different uses.
The latches are delivered with 2 keys and loosely enclosed hook. The key can be removed in both end positions.
Types with a standard lock allow every lock to be opened with the same key.
Specification
Cam lock housing
Stainless steelN
- AISI 303 for type SC
- AISI 316 for type SCKN / SCTN
Operating elements for type SCKN / SCTN
Stainless steel AISI 316
Other parts
Stainless steel AISI 304
Key
Nickel silver with plastic handpiece
Protection class IP65
RoHS
On request
- Cam locks with other hook distance A
- Hook with other pivoting radius R
