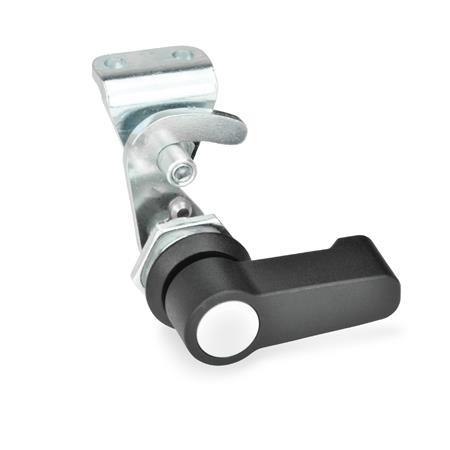

Type: HG - With lever
Identification no.: 2 - With latch bracket
Finish (Housing collar): SW - Black, RAL 9005, textured finish
Identification no.: 2 - With latch bracket
Finish (Housing collar): SW - Black, RAL 9005, textured finish
Standard Sheet GN 115.8
Print This Page
Operating Instruction GN 115.8
IP Protection Classes
Plastic Characteristics
Product description
Cam latches with hook GN 115.8 and latch bracket are mainly used for sliding doors and flaps. The latching action is in a radial direction to the axis of rotation, resulting in a wide variety of different uses.
The latches GN 115.8 are supplied with loosely enclosed hook.
Specification
Cam latch housing
Zinc die-cast
Housing collar
- Chrome plated finishCR
- Powder coated
Black, RAL 9005, textured finishSW
Other parts
Steel, zinc plated, blue passivated finish
Operating elements
Plastic, Polyamide (PA)
Black, matte finish
Cover cap for Type RG / KG / HG
Plastic
Light gray, matte finish
Protection class IP 65
RoHS
On request
- Cam latches with other hook distance A
- Hook with other pivoting radius R
