EN 449.4 Snap Latches Plastic, with Gripping Tray

Snap Latches EN 449.4: Plastic, with Gripping Tray
Original design
code: CMS / CMS-CLEAN
Color: SW - Black
Accessories-for-profile-systems

Accessories for Profile Systems

Standard elements in this product family are compatible with the most common aluminium profile systems. Using matching assembly sets, the Winco standard elements are easily and cost-effectively connected with the profiles without the time-consuming compiling of individual parts in the order.

  • compatible with the common profile systems
  • for groove widths of 6, 8 and 10 mm
  • for profiles 30, 40 and 45 mm
Show All Compatible Products
Plastic Characteristics

Product description

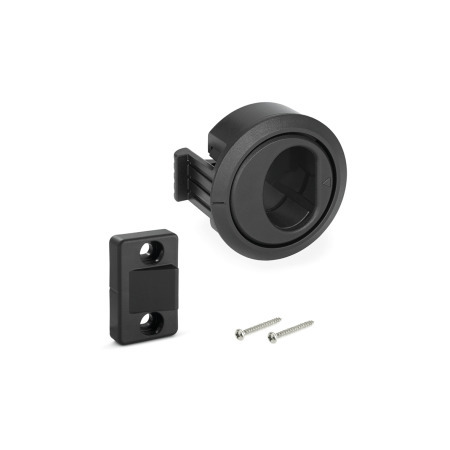

Snap latches EN 449.4 combine the function of a gripping tray with that of a snap latch to provide an easy way to keep doors and covers closed.

The door can be opened by pulling towards the operator at the release point, this release point is identified by the triangle marker on the exterior latch.

The mounting hole must be created according to the dimensions specified in the mounting information. For mounting, first insert the front body into the hole in the door, then push in the housing from the opposite side. Use the two supplied self-tapping screws to join the housing with the front body.

Finally, orient the snap element based on the reference marks and mount it on the frame or profile.

Specification

Front body
Plastic, Polyacetal (POM)

  • BlackSWSW , similar RAL 9005, matte finish
    UV resistant
  • WhiteWSWS , similar RAL 9002, matte finish

Housing / Snap element
Plastic, Polyamide (PA)

  • Glass fiber reinforced
  • Black, similar RAL 9005, matte finish for SW
    UV resistant
  • White, similar RAL 9002, matte finish for WS

Operating temperature
-20 °F to +140 °F (-20 °C to +60 °C)

Self-tapping screws ISO 7049-ST3.5x19
Stainless steel

RoHS

EN 449.4 Plastic Snap Latches, with Gripping Tray sketch
Hide technical drawing
EN 449.4 Plastic Snap Latches, with Gripping Tray sketch

Part Options / Table
Show / Hide columns

Metric

Dimensions in: Inch (change to Metric)
d1l1Wall thickness
Nominal size
s
in mm		a
Profile cross section		bd2d3d4h1h2h3h4l2l3l4l5l6m1m2
2.320.59A 11...101.181.732.241.970.201.300.980.140.911.100.201.340.310.771.180.25
2.320.79A 11...101.571.732.241.970.201.300.980.140.911.100.201.340.310.771.180.25

Build & Price
Diameter d1
Length l1
Nominal size
Color
Black
White
Diameter d1
Length l1
Nominal size
Color
Black
White

Selected Part

Total (net)
Can$24.30
Available within 1-2 weeks
Create Project List
Save as Favorites
Recommend a product
Please note our quantity discounts (Canadian Dollars).
MinMaxPrice
16Can$24.30
799Can$23.42
100249Can$22.09
≥ 250Can$19.88
Prop 65: Not compliant
WARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov
RoHS: Compliant
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).
Weight: 0.129 lbs
If weight is not listed, please contact our Sales Department for additional information regarding weight.
Phone: 1-800-397-6993

CAD Download

Other Data Formats

Email CAD File

To receive an email with a CAD download without creating an account, please enter your e-mail address. Max of 3 CAD files per day unless you create an account.

CAD Download Tutorial About CAD Downloads

Need Help?

Our service team is available from Monday to Friday between 8:00 AM and 5:30 PM Eastern Time: 800-397-6993

Special Requests | Contact our sales team

EN 449.4-59-15-A1-SWEN 449.4-59-15-A1-WSEN 449.4-59-20-A1-SWEN 449.4-59-20-A1-WS
