GN 22i Universal Connectors Zinc Die-Cast, with Double T-Nut, for Aluminum Profiles (i-Modular System)

Universal Connectors GN 22i: Zinc Die-Cast, with Double T-Nut, for Aluminum Profiles (i-Modular System)

i-Modular System (Item compatible)

Assembly Instructions / Profile Machining

Product description

Universal connectors GN 22i fasten aluminum profiles at right angles and secure them against twisting. Only one profile has to be machined.

The connection can be freely positioned and slid along the slot. If panels are used in the slot, they must be suitably pocketed.

Universal connectors are supplied in bundles. The table shows the quantity included in each bundle.

Specification

Housing
Zinc die-cast, zinc platedZZ

Screws / T-nut
Steel, zinc plated, blue passivated finishSZ

RoHS

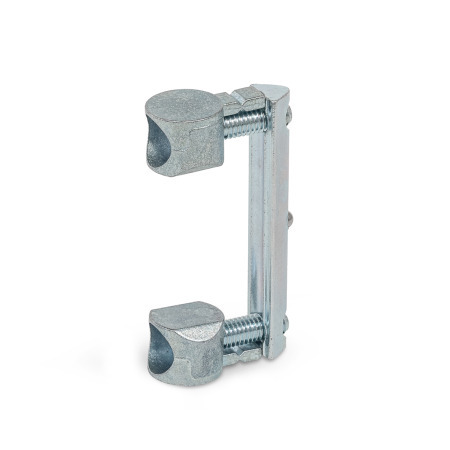

GN 22i Zinc Die-Cast Universal Connectors, with Double T-Nut, for Aluminum Profiles (i-Modular System) sketch

Hide technical drawing

Part Options / Table

Type

V	With anti-twist protection

Coding

D	With 2 screws and double T-nut

Part Number	s	n	Bundle Pieces	d₁	d₂	l₁	l₂	m₁	m₂ +0.02	A/F in mm	t +0.02	Tightening torque in Nm

22I-306-V-D-ZZSZ-2	1.18	0.24	2	0.63	M 6	1.00	1.10	0.67	0.59 +0.02	4	0.50 +0.02	8
22I-408-V-D-ZZSZ-2	1.57	0.31	2	0.79	M 8	1.32	1.42	0.94	0.79 +0.02	5	0.63 +0.02	25
22I-606-V-D-ZZSZ-2	2.36	0.24	2	0.63	M 6	1.00	2.28	1.85	0.59 +0.02	4	0.50 +0.02	8
22I-808-V-D-ZZSZ-2	3.15	0.31	2	0.79	M 8	1.32	2.99	2.52	0.79 +0.02	5	0.63 +0.02	25

Show / Hide columns

Metric

Dimensions in: Inch (change to Metric)

s	n	Bundle Pieces	d₁	d₂	l₁	l₂	m₁	m₂ +0.02	A/F in mm	t +0.02	Tightening torque in Nm

1.18	0.24	2	0.63	M 6	1.00	1.10	0.67	0.59	4	0.50	8
1.57	0.31	2	0.79	M 8	1.32	1.42	0.94	0.79	5	0.63	25
2.36	0.24	2	0.63	M 6	1.00	2.28	1.85	0.59	4	0.50	8
3.15	0.31	2	0.79	M 8	1.32	2.99	2.52	0.79	5	0.63	25
