GN 41 Leveling Feet Stainless Steel, Tapped Socket or Threaded Stud Type

Leveling Feet GN 41: Stainless Steel, Tapped Socket or Threaded Stud Type

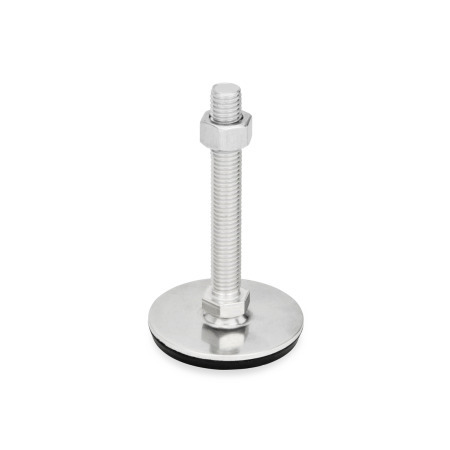

Type (Base): D3 - With rubber pad, vulcanized, black
Version (Stud / Socket): SK - With nut, external hex at the bottom

Product Family Stainless Steel

Standard parts made of rustproof stainless steel have been designed for use in the food sector, in the chemical industry, for aggressive ambient conditions or for outdoor use.

corrosion-resistant
precise fit
environmentally friendly

Show all Stainless Steel products

Standard Sheet GN 41 Print This Page Plastic Characteristics Stainless Steel Characteristics Load Rating Information

Product description

Leveling feet GN 41 are intended for use in aggressive environments. The wide range of possible combinations of the base and the stud / socket versions make these leveling feet universally applicable.

The base with the rubber pad / cap protects sensitive surfaces and reduces lateral slippage. The type B0 can also be fastened to the mounting surface via the two mounting holes provided.

These leveling feet are supplied fully assembled and cannot be disassembled.

Specification

Base
Stainless steel AISI 304
Plain, tumbled finish

Threaded stud / tapped socket
Stainless steel AISI 303

Hex nut
ANSI / ASME B18.2.2
Stainless steel AISI 304

Rubber cap
TPE (Santoprene^®) ≈ 80 Shore A
- Clipped on
- Black

Rubber pad
NBR (Perbunan^®) 70 ±5 Shore A
- Vulcanized, non-skid
- Black

RoHS

On request

Stud versions T / TK, V / VK and W with certain minimum quantities

GN 41 Inch Thread, Stainless Steel Leveling Feet, Tapped Socket or Threaded Stud Type sketch

Hide technical drawing

Part Options / Table

Type (Base)

B0	Without rubber pad / cap, with 2 mounting holes
D0	Without rubber pad / cap
D1	With rubber cap, clipped on, black
D3	With rubber pad, vulcanized, black

Version (Stud / Socket)

S	Without nut, external hex at the bottom
SK	With nut, external hex at the bottom
U	Without nut, internal hex at the top, wrench flat at the bottom
UK	With nut, internal hex at the top, wrench flat at the bottom
X	External hex, tapped socket type

Part Number X - External hex, tapped socket type	Part Number S - Without nut, external hex at the bottom	Part Number SK - With nut, external hex at the bottom	Part Number U - Without nut, internal hex at the top, wrench flat at the bottom	Part Number UK - With nut, internal hex at the top, wrench flat at the bottom	d₁	d₂	l₁ Version S / SK	Version U / UK	l₇ Version X	d₃	m	h₁

41-40-5/16X18-25-B0-X					1.57	5/16 x 18	-	-	0.98	-	1.18	0.08
	41-40-3/8X16-75-B0-S	41-40-3/8X16-75-B0-SK			1.57	3/8 x 16	2.95	-	-	-	1.18	0.08
	41-40-3/8X16-100-B0-S	41-40-3/8X16-100-B0-SK			1.57	3/8 x 16	3.94	-	-	-	1.18	0.08
	41-40-3/8X16-125-B0-S	41-40-3/8X16-125-B0-SK			1.57	3/8 x 16	4.92	-	-	-	1.18	0.08
	41-40-3/8X16-150-B0-S	41-40-3/8X16-150-B0-SK			1.57	3/8 x 16	5.91	-	-	-	1.18	0.08
41-40-3/8X16-28-B0-X					1.57	3/8 x 16	-	-	1.10	-	1.18	0.08
	41-40-1/2X13-75-B0-S	41-40-1/2X13-75-B0-SK			1.57	1/2 x 13	2.95	-	-	-	1.18	0.08
	41-40-1/2X13-100-B0-S	41-40-1/2X13-100-B0-SK			1.57	1/2 x 13	3.94	-	-	-	1.18	0.08
	41-40-1/2X13-125-B0-S	41-40-1/2X13-125-B0-SK			1.57	1/2 x 13	4.92	-	-	-	1.18	0.08
	41-40-1/2X13-150-B0-S	41-40-1/2X13-150-B0-SK			1.57	1/2 x 13	5.91	-	-	-	1.18	0.08
41-40-1/2X13-31-B0-X					1.57	1/2 x 13	-	-	1.22	-	1.18	0.08
41-50-5/16X18-25-B0-X					1.97	5/16 x 18	-	-	0.98	-	1.50	0.10
	41-50-3/8X16-75-B0-S	41-50-3/8X16-75-B0-SK			1.97	3/8 x 16	2.95	-	-	-	1.50	0.10
	41-50-3/8X16-100-B0-S	41-50-3/8X16-100-B0-SK			1.97	3/8 x 16	3.94	-	-	-	1.50	0.10
	41-50-3/8X16-125-B0-S	41-50-3/8X16-125-B0-SK			1.97	3/8 x 16	4.92	-	-	-	1.50	0.10
	41-50-3/8X16-150-B0-S	41-50-3/8X16-150-B0-SK			1.97	3/8 x 16	5.91	-	-	-	1.50	0.10
41-50-3/8X16-28-B0-X					1.97	3/8 x 16	-	-	1.10	-	1.50	0.10
	41-50-1/2X13-75-B0-S	41-50-1/2X13-75-B0-SK			1.97	1/2 x 13	2.95	-	-	-	1.50	0.10
	41-50-1/2X13-100-B0-S	41-50-1/2X13-100-B0-SK			1.97	1/2 x 13	3.94	-	-	-	1.50	0.10
	41-50-1/2X13-125-B0-S	41-50-1/2X13-125-B0-SK			1.97	1/2 x 13	4.92	-	-	-	1.50	0.10
	41-50-1/2X13-150-B0-S	41-50-1/2X13-150-B0-SK			1.97	1/2 x 13	5.91	-	-	-	1.50	0.10
41-50-1/2X13-32-B0-X					1.97	1/2 x 13	-	-	1.26	-	1.50	0.10
			41-50-5/8X11-75-B0-U	41-50-5/8X11-75-B0-UK	1.97	5/8 x 11	-	2.95	-	-	1.50	0.10
			41-50-5/8X11-100-B0-U	41-50-5/8X11-100-B0-UK	1.97	5/8 x 11	-	3.94	-	-	1.50	0.10
			41-50-5/8X11-125-B0-U	41-50-5/8X11-125-B0-UK	1.97	5/8 x 11	-	4.92	-	-	1.50	0.10
			41-50-5/8X11-150-B0-U	41-50-5/8X11-150-B0-UK	1.97	5/8 x 11	-	5.91	-	-	1.50	0.10
41-50-5/8X11-37-B0-X					1.97	5/8 x 11	-	-	1.46	-	1.50	0.10
41-60-5/16X18-25-B0-X					2.36	5/16 x 18	-	-	0.98	-	1.89	0.10
	41-60-3/8X16-75-B0-S	41-60-3/8X16-75-B0-SK			2.36	3/8 x 16	2.95	-	-	-	1.89	0.10
	41-60-3/8X16-100-B0-S	41-60-3/8X16-100-B0-SK			2.36	3/8 x 16	3.94	-	-	-	1.89	0.10
	41-60-3/8X16-125-B0-S	41-60-3/8X16-125-B0-SK			2.36	3/8 x 16	4.92	-	-	-	1.89	0.10
	41-60-3/8X16-150-B0-S	41-60-3/8X16-150-B0-SK			2.36	3/8 x 16	5.91	-	-	-	1.89	0.10
41-60-3/8X16-28-B0-X					2.36	3/8 x 16	-	-	1.10	-	1.89	0.10
	41-60-1/2X13-75-B0-S	41-60-1/2X13-75-B0-SK			2.36	1/2 x 13	2.95	-	-	-	1.89	0.10
	41-60-1/2X13-100-B0-S	41-60-1/2X13-100-B0-SK			2.36	1/2 x 13	3.94	-	-	-	1.89	0.10
	41-60-1/2X13-125-B0-S	41-60-1/2X13-125-B0-SK			2.36	1/2 x 13	4.92	-	-	-	1.89	0.10
	41-60-1/2X13-150-B0-S	41-60-1/2X13-150-B0-SK			2.36	1/2 x 13	5.91	-	-	-	1.89	0.10
41-60-1/2X13-32-B0-X					2.36	1/2 x 13	-	-	1.26	-	1.89	0.10
			41-60-5/8X11-75-B0-U	41-60-5/8X11-75-B0-UK	2.36	5/8 x 11	-	2.95	-	-	1.89	0.10
			41-60-5/8X11-100-B0-U	41-60-5/8X11-100-B0-UK	2.36	5/8 x 11	-	3.94	-	-	1.89	0.10
			41-60-5/8X11-125-B0-U	41-60-5/8X11-125-B0-UK	2.36	5/8 x 11	-	4.92	-	-	1.89	0.10
			41-60-5/8X11-150-B0-U	41-60-5/8X11-150-B0-UK	2.36	5/8 x 11	-	5.91	-	-	1.89	0.10
41-60-5/8X11-37-B0-X					2.36	5/8 x 11	-	-	1.46	-	1.89	0.10
41-80-5/16X18-26-B0-X					3.15	5/16 x 18	-	-	1.02	-	2.52	0.12
	41-80-3/8X16-75-B0-S	41-80-3/8X16-75-B0-SK			3.15	3/8 x 16	2.95	-	-	-	2.52	0.12
	41-80-3/8X16-100-B0-S	41-80-3/8X16-100-B0-SK			3.15	3/8 x 16	3.94	-	-	-	2.52	0.12
	41-80-3/8X16-125-B0-S	41-80-3/8X16-125-B0-SK			3.15	3/8 x 16	4.92	-	-	-	2.52	0.12
	41-80-3/8X16-150-B0-S	41-80-3/8X16-150-B0-SK			3.15	3/8 x 16	5.91	-	-	-	2.52	0.12
41-80-3/8X16-29-B0-X					3.15	3/8 x 16	-	-	1.14	-	2.52	0.12
	41-80-1/2X13-75-B0-S	41-80-1/2X13-75-B0-SK			3.15	1/2 x 13	2.95	-	-	-	2.52	0.12
	41-80-1/2X13-100-B0-S	41-80-1/2X13-100-B0-SK			3.15	1/2 x 13	3.94	-	-	-	2.52	0.12
	41-80-1/2X13-125-B0-S	41-80-1/2X13-125-B0-SK			3.15	1/2 x 13	4.92	-	-	-	2.52	0.12
	41-80-1/2X13-150-B0-S	41-80-1/2X13-150-B0-SK			3.15	1/2 x 13	5.91	-	-	-	2.52	0.12
41-80-1/2X13-32-B0-X					3.15	1/2 x 13	-	-	1.26	-	2.52	0.12
			41-80-5/8X11-75-B0-U	41-80-5/8X11-75-B0-UK	3.15	5/8 x 11	-	2.95	-	-	2.52	0.12
			41-80-5/8X11-100-B0-U	41-80-5/8X11-100-B0-UK	3.15	5/8 x 11	-	3.94	-	-	2.52	0.12
			41-80-5/8X11-125-B0-U	41-80-5/8X11-125-B0-UK	3.15	5/8 x 11	-	4.92	-	-	2.52	0.12
			41-80-5/8X11-150-B0-U	41-80-5/8X11-150-B0-UK	3.15	5/8 x 11	-	5.91	-	-	2.52	0.12
41-80-5/8X11-38-B0-X					3.15	5/8 x 11	-	-	1.50	-	2.52	0.12
			41-80-3/4X10-100-B0-U	41-80-3/4X10-100-B0-UK	3.15	3/4 x 10	-	3.94	-	-	2.52	0.12
			41-80-3/4X10-125-B0-U	41-80-3/4X10-125-B0-UK	3.15	3/4 x 10	-	4.92	-	-	2.52	0.12
			41-80-3/4X10-150-B0-U	41-80-3/4X10-150-B0-UK	3.15	3/4 x 10	-	5.91	-	-	2.52	0.12
41-80-3/4X10-45-B0-X					3.15	3/4 x 10	-	-	1.77	-	2.52	0.12

Part Number X - External hex, tapped socket type	Part Number S - Without nut, external hex at the bottom	Part Number SK - With nut, external hex at the bottom	Part Number U - Without nut, internal hex at the top, wrench flat at the bottom	Part Number UK - With nut, internal hex at the top, wrench flat at the bottom	d₁	d₂	l₁ Version S / SK	Version U / UK	l₇ Version X	d₃	m	h₁

41-40-5/16X18-25-D0-X					1.57	5/16 x 18	-	-	0.98	-	1.18	0.08
	41-40-3/8X16-75-D0-S	41-40-3/8X16-75-D0-SK			1.57	3/8 x 16	2.95	-	-	-	1.18	0.08
	41-40-3/8X16-100-D0-S	41-40-3/8X16-100-D0-SK			1.57	3/8 x 16	3.94	-	-	-	1.18	0.08
	41-40-3/8X16-125-D0-S	41-40-3/8X16-125-D0-SK			1.57	3/8 x 16	4.92	-	-	-	1.18	0.08
	41-40-3/8X16-150-D0-S	41-40-3/8X16-150-D0-SK			1.57	3/8 x 16	5.91	-	-	-	1.18	0.08
41-40-3/8X16-28-D0-X					1.57	3/8 x 16	-	-	1.10	-	1.18	0.08
	41-40-1/2X13-75-D0-S	41-40-1/2X13-75-D0-SK			1.57	1/2 x 13	2.95	-	-	-	1.18	0.08
	41-40-1/2X13-100-D0-S	41-40-1/2X13-100-D0-SK			1.57	1/2 x 13	3.94	-	-	-	1.18	0.08
	41-40-1/2X13-125-D0-S	41-40-1/2X13-125-D0-SK			1.57	1/2 x 13	4.92	-	-	-	1.18	0.08
	41-40-1/2X13-150-D0-S	41-40-1/2X13-150-D0-SK			1.57	1/2 x 13	5.91	-	-	-	1.18	0.08
41-40-1/2X13-31-D0-X					1.57	1/2 x 13	-	-	1.22	-	1.18	0.08
			41-40-5/8X11-75-D0-U	41-40-5/8X11-75-D0-UK	1.57*	5/8 x 11	-	2.95	-	-	1.18	0.08
			41-40-5/8X11-100-D0-U	41-40-5/8X11-100-D0-UK	1.57*	5/8 x 11	-	3.94	-	-	1.18	0.08
			41-40-5/8X11-125-D0-U	41-40-5/8X11-125-D0-UK	1.57*	5/8 x 11	-	4.92	-	-	1.18	0.08
			41-40-5/8X11-150-D0-U	41-40-5/8X11-150-D0-UK	1.57*	5/8 x 11	-	5.91	-	-	1.18	0.08
41-40-5/8X11-37-D0-X					1.57*	5/8 x 11	-	-	1.46	-	1.18	0.08
41-50-5/16X18-25-D0-X					1.97	5/16 x 18	-	-	0.98	-	1.50	0.10
	41-50-3/8X16-75-D0-S	41-50-3/8X16-75-D0-SK			1.97	3/8 x 16	2.95	-	-	-	1.50	0.10
	41-50-3/8X16-100-D0-S	41-50-3/8X16-100-D0-SK			1.97	3/8 x 16	3.94	-	-	-	1.50	0.10
	41-50-3/8X16-125-D0-S	41-50-3/8X16-125-D0-SK			1.97	3/8 x 16	4.92	-	-	-	1.50	0.10
	41-50-3/8X16-150-D0-S	41-50-3/8X16-150-D0-SK			1.97	3/8 x 16	5.91	-	-	-	1.50	0.10
41-50-3/8X16-28-D0-X					1.97	3/8 x 16	-	-	1.10	-	1.50	0.10
	41-50-1/2X13-75-D0-S	41-50-1/2X13-75-D0-SK			1.97	1/2 x 13	2.95	-	-	-	1.50	0.10
	41-50-1/2X13-100-D0-S	41-50-1/2X13-100-D0-SK			1.97	1/2 x 13	3.94	-	-	-	1.50	0.10
	41-50-1/2X13-125-D0-S	41-50-1/2X13-125-D0-SK			1.97	1/2 x 13	4.92	-	-	-	1.50	0.10
	41-50-1/2X13-150-D0-S	41-50-1/2X13-150-D0-SK			1.97	1/2 x 13	5.91	-	-	-	1.50	0.10
41-50-1/2X13-32-D0-X					1.97	1/2 x 13	-	-	1.26	-	1.50	0.10
			41-50-5/8X11-75-D0-U	41-50-5/8X11-75-D0-UK	1.97	5/8 x 11	-	2.95	-	-	1.50	0.10
			41-50-5/8X11-100-D0-U	41-50-5/8X11-100-D0-UK	1.97	5/8 x 11	-	3.94	-	-	1.50	0.10
			41-50-5/8X11-125-D0-U	41-50-5/8X11-125-D0-UK	1.97	5/8 x 11	-	4.92	-	-	1.50	0.10
			41-50-5/8X11-150-D0-U	41-50-5/8X11-150-D0-UK	1.97	5/8 x 11	-	5.91	-	-	1.50	0.10
41-50-5/8X11-37-D0-X					1.97	5/8 x 11	-	-	1.46	-	1.50	0.10
41-60-5/16X18-25-D0-X					2.36	5/16 x 18	-	-	0.98	-	1.89	0.10
	41-60-3/8X16-75-D0-S	41-60-3/8X16-75-D0-SK			2.36	3/8 x 16	2.95	-	-	-	1.89	0.10
	41-60-3/8X16-100-D0-S	41-60-3/8X16-100-D0-SK			2.36	3/8 x 16	3.94	-	-	-	1.89	0.10
	41-60-3/8X16-125-D0-S	41-60-3/8X16-125-D0-SK			2.36	3/8 x 16	4.92	-	-	-	1.89	0.10
	41-60-3/8X16-150-D0-S	41-60-3/8X16-150-D0-SK			2.36	3/8 x 16	5.91	-	-	-	1.89	0.10
41-60-3/8X16-28-D0-X					2.36	3/8 x 16	-	-	1.10	-	1.89	0.10
	41-60-1/2X13-75-D0-S	41-60-1/2X13-75-D0-SK			2.36	1/2 x 13	2.95	-	-	-	1.89	0.10
	41-60-1/2X13-100-D0-S	41-60-1/2X13-100-D0-SK			2.36	1/2 x 13	3.94	-	-	-	1.89	0.10
	41-60-1/2X13-125-D0-S	41-60-1/2X13-125-D0-SK			2.36	1/2 x 13	4.92	-	-	-	1.89	0.10
	41-60-1/2X13-150-D0-S	41-60-1/2X13-150-D0-SK			2.36	1/2 x 13	5.91	-	-	-	1.89	0.10
41-60-1/2X13-32-D0-X					2.36	1/2 x 13	-	-	1.26	-	1.89	0.10
			41-60-5/8X11-75-D0-U	41-60-5/8X11-75-D0-UK	2.36	5/8 x 11	-	2.95	-	-	1.89	0.10
			41-60-5/8X11-100-D0-U	41-60-5/8X11-100-D0-UK	2.36	5/8 x 11	-	3.94	-	-	1.89	0.10
			41-60-5/8X11-125-D0-U	41-60-5/8X11-125-D0-UK	2.36	5/8 x 11	-	4.92	-	-	1.89	0.10
			41-60-5/8X11-150-D0-U	41-60-5/8X11-150-D0-UK	2.36	5/8 x 11	-	5.91	-	-	1.89	0.10
41-60-5/8X11-37-D0-X					2.36	5/8 x 11	-	-	1.46	-	1.89	0.10
41-80-5/16X18-26-D0-X					3.15	5/16 x 18	-	-	1.02	-	2.52	0.12
	41-80-3/8X16-75-D0-S	41-80-3/8X16-75-D0-SK			3.15	3/8 x 16	2.95	-	-	-	2.52	0.12
	41-80-3/8X16-100-D0-S	41-80-3/8X16-100-D0-SK			3.15	3/8 x 16	3.94	-	-	-	2.52	0.12
	41-80-3/8X16-125-D0-S	41-80-3/8X16-125-D0-SK			3.15	3/8 x 16	4.92	-	-	-	2.52	0.12
	41-80-3/8X16-150-D0-S	41-80-3/8X16-150-D0-SK			3.15	3/8 x 16	5.91	-	-	-	2.52	0.12
41-80-3/8X16-29-D0-X					3.15	3/8 x 16	-	-	1.14	-	2.52	0.12
	41-80-1/2X13-75-D0-S	41-80-1/2X13-75-D0-SK			3.15	1/2 x 13	2.95	-	-	-	2.52	0.12
	41-80-1/2X13-100-D0-S	41-80-1/2X13-100-D0-SK			3.15	1/2 x 13	3.94	-	-	-	2.52	0.12
	41-80-1/2X13-125-D0-S	41-80-1/2X13-125-D0-SK			3.15	1/2 x 13	4.92	-	-	-	2.52	0.12
	41-80-1/2X13-150-D0-S	41-80-1/2X13-150-D0-SK			3.15	1/2 x 13	5.91	-	-	-	2.52	0.12
41-80-1/2X13-32-D0-X					3.15	1/2 x 13	-	-	1.26	-	2.52	0.12
			41-80-5/8X11-75-D0-U	41-80-5/8X11-75-D0-UK	3.15	5/8 x 11	-	2.95	-	-	2.52	0.12
			41-80-5/8X11-100-D0-U	41-80-5/8X11-100-D0-UK	3.15	5/8 x 11	-	3.94	-	-	2.52	0.12
			41-80-5/8X11-125-D0-U	41-80-5/8X11-125-D0-UK	3.15	5/8 x 11	-	4.92	-	-	2.52	0.12
			41-80-5/8X11-150-D0-U	41-80-5/8X11-150-D0-UK	3.15	5/8 x 11	-	5.91	-	-	2.52	0.12
41-80-5/8X11-38-D0-X					3.15	5/8 x 11	-	-	1.50	-	2.52	0.12
			41-80-3/4X10-100-D0-U	41-80-3/4X10-100-D0-UK	3.15	3/4 x 10	-	3.94	-	-	2.52	0.12
			41-80-3/4X10-125-D0-U	41-80-3/4X10-125-D0-UK	3.15	3/4 x 10	-	4.92	-	-	2.52	0.12
			41-80-3/4X10-150-D0-U	41-80-3/4X10-150-D0-UK	3.15	3/4 x 10	-	5.91	-	-	2.52	0.12
41-80-3/4X10-45-D0-X					3.15	3/4 x 10	-	-	1.77	-	2.52	0.12

Part Number X - External hex, tapped socket type	Part Number S - Without nut, external hex at the bottom	Part Number SK - With nut, external hex at the bottom	Part Number U - Without nut, internal hex at the top, wrench flat at the bottom	Part Number UK - With nut, internal hex at the top, wrench flat at the bottom	d₁	d₂	l₁ Version S / SK	Version U / UK	l₇ Version X	d₃	m	h₁

41-40-5/16X18-25-D1-X					1.57	5/16 x 18	-	-	0.98	-	1.18	0.08
	41-40-3/8X16-75-D1-S	41-40-3/8X16-75-D1-SK			1.57	3/8 x 16	2.95	-	-	-	1.18	0.08
	41-40-3/8X16-100-D1-S	41-40-3/8X16-100-D1-SK			1.57	3/8 x 16	3.94	-	-	-	1.18	0.08
	41-40-3/8X16-125-D1-S	41-40-3/8X16-125-D1-SK			1.57	3/8 x 16	4.92	-	-	-	1.18	0.08
	41-40-3/8X16-150-D1-S	41-40-3/8X16-150-D1-SK			1.57	3/8 x 16	5.91	-	-	-	1.18	0.08
41-40-3/8X16-28-D1-X					1.57	3/8 x 16	-	-	1.10	-	1.18	0.08
	41-40-1/2X13-75-D1-S	41-40-1/2X13-75-D1-SK			1.57	1/2 x 13	2.95	-	-	-	1.18	0.08
	41-40-1/2X13-100-D1-S	41-40-1/2X13-100-D1-SK			1.57	1/2 x 13	3.94	-	-	-	1.18	0.08
	41-40-1/2X13-125-D1-S	41-40-1/2X13-125-D1-SK			1.57	1/2 x 13	4.92	-	-	-	1.18	0.08
	41-40-1/2X13-150-D1-S	41-40-1/2X13-150-D1-SK			1.57	1/2 x 13	5.91	-	-	-	1.18	0.08
41-40-1/2X13-31-D1-X					1.57	1/2 x 13	-	-	1.22	-	1.18	0.08
			41-40-5/8X11-75-D1-U	41-40-5/8X11-75-D1-UK	1.57*	5/8 x 11	-	2.95	-	-	1.18	0.08
			41-40-5/8X11-100-D1-U	41-40-5/8X11-100-D1-UK	1.57*	5/8 x 11	-	3.94	-	-	1.18	0.08
			41-40-5/8X11-125-D1-U	41-40-5/8X11-125-D1-UK	1.57*	5/8 x 11	-	4.92	-	-	1.18	0.08
			41-40-5/8X11-150-D1-U	41-40-5/8X11-150-D1-UK	1.57*	5/8 x 11	-	5.91	-	-	1.18	0.08
41-40-5/8X11-37-D1-X					1.57*	5/8 x 11	-	-	1.46	-	1.18	0.08
41-50-5/16X18-25-D1-X					1.97	5/16 x 18	-	-	0.98	-	1.50	0.10
	41-50-3/8X16-75-D1-S	41-50-3/8X16-75-D1-SK			1.97	3/8 x 16	2.95	-	-	-	1.50	0.10
	41-50-3/8X16-100-D1-S	41-50-3/8X16-100-D1-SK			1.97	3/8 x 16	3.94	-	-	-	1.50	0.10
	41-50-3/8X16-125-D1-S	41-50-3/8X16-125-D1-SK			1.97	3/8 x 16	4.92	-	-	-	1.50	0.10
	41-50-3/8X16-150-D1-S	41-50-3/8X16-150-D1-SK			1.97	3/8 x 16	5.91	-	-	-	1.50	0.10
41-50-3/8X16-28-D1-X					1.97	3/8 x 16	-	-	1.10	-	1.50	0.10
	41-50-1/2X13-75-D1-S	41-50-1/2X13-75-D1-SK			1.97	1/2 x 13	2.95	-	-	-	1.50	0.10
	41-50-1/2X13-100-D1-S	41-50-1/2X13-100-D1-SK			1.97	1/2 x 13	3.94	-	-	-	1.50	0.10
	41-50-1/2X13-125-D1-S	41-50-1/2X13-125-D1-SK			1.97	1/2 x 13	4.92	-	-	-	1.50	0.10
	41-50-1/2X13-150-D1-S	41-50-1/2X13-150-D1-SK			1.97	1/2 x 13	5.91	-	-	-	1.50	0.10
41-50-1/2X13-32-D1-X					1.97	1/2 x 13	-	-	1.26	-	1.50	0.10
			41-50-5/8X11-75-D1-U	41-50-5/8X11-75-D1-UK	1.97	5/8 x 11	-	2.95	-	-	1.50	0.10
			41-50-5/8X11-100-D1-U	41-50-5/8X11-100-D1-UK	1.97	5/8 x 11	-	3.94	-	-	1.50	0.10
			41-50-5/8X11-125-D1-U	41-50-5/8X11-125-D1-UK	1.97	5/8 x 11	-	4.92	-	-	1.50	0.10
			41-50-5/8X11-150-D1-U	41-50-5/8X11-150-D1-UK	1.97	5/8 x 11	-	5.91	-	-	1.50	0.10
41-50-5/8X11-37-D1-X					1.97	5/8 x 11	-	-	1.46	-	1.50	0.10
41-60-5/16X18-25-D1-X					2.36	5/16 x 18	-	-	0.98	-	1.89	0.10
	41-60-3/8X16-75-D1-S	41-60-3/8X16-75-D1-SK			2.36	3/8 x 16	2.95	-	-	-	1.89	0.10
	41-60-3/8X16-100-D1-S	41-60-3/8X16-100-D1-SK			2.36	3/8 x 16	3.94	-	-	-	1.89	0.10
	41-60-3/8X16-125-D1-S	41-60-3/8X16-125-D1-SK			2.36	3/8 x 16	4.92	-	-	-	1.89	0.10
	41-60-3/8X16-150-D1-S	41-60-3/8X16-150-D1-SK			2.36	3/8 x 16	5.91	-	-	-	1.89	0.10
41-60-3/8X16-28-D1-X					2.36	3/8 x 16	-	-	1.10	-	1.89	0.10
	41-60-1/2X13-75-D1-S	41-60-1/2X13-75-D1-SK			2.36	1/2 x 13	2.95	-	-	-	1.89	0.10
	41-60-1/2X13-100-D1-S	41-60-1/2X13-100-D1-SK			2.36	1/2 x 13	3.94	-	-	-	1.89	0.10
	41-60-1/2X13-125-D1-S	41-60-1/2X13-125-D1-SK			2.36	1/2 x 13	4.92	-	-	-	1.89	0.10
	41-60-1/2X13-150-D1-S	41-60-1/2X13-150-D1-SK			2.36	1/2 x 13	5.91	-	-	-	1.89	0.10
41-60-1/2X13-32-D1-X					2.36	1/2 x 13	-	-	1.26	-	1.89	0.10
			41-60-5/8X11-75-D1-U	41-60-5/8X11-75-D1-UK	2.36	5/8 x 11	-	2.95	-	-	1.89	0.10
			41-60-5/8X11-100-D1-U	41-60-5/8X11-100-D1-UK	2.36	5/8 x 11	-	3.94	-	-	1.89	0.10
			41-60-5/8X11-125-D1-U	41-60-5/8X11-125-D1-UK	2.36	5/8 x 11	-	4.92	-	-	1.89	0.10
			41-60-5/8X11-150-D1-U	41-60-5/8X11-150-D1-UK	2.36	5/8 x 11	-	5.91	-	-	1.89	0.10
41-60-5/8X11-37-D1-X					2.36	5/8 x 11	-	-	1.46	-	1.89	0.10
41-80-5/16X18-26-D1-X					3.15	5/16 x 18	-	-	1.02	-	2.52	0.12
	41-80-3/8X16-75-D1-S	41-80-3/8X16-75-D1-SK			3.15	3/8 x 16	2.95	-	-	-	2.52	0.12
	41-80-3/8X16-100-D1-S	41-80-3/8X16-100-D1-SK			3.15	3/8 x 16	3.94	-	-	-	2.52	0.12
	41-80-3/8X16-125-D1-S	41-80-3/8X16-125-D1-SK			3.15	3/8 x 16	4.92	-	-	-	2.52	0.12
	41-80-3/8X16-150-D1-S	41-80-3/8X16-150-D1-SK			3.15	3/8 x 16	5.91	-	-	-	2.52	0.12
41-80-3/8X16-29-D1-X					3.15	3/8 x 16	-	-	1.14	-	2.52	0.12
	41-80-1/2X13-75-D1-S	41-80-1/2X13-75-D1-SK			3.15	1/2 x 13	2.95	-	-	-	2.52	0.12
	41-80-1/2X13-100-D1-S	41-80-1/2X13-100-D1-SK			3.15	1/2 x 13	3.94	-	-	-	2.52	0.12
	41-80-1/2X13-125-D1-S	41-80-1/2X13-125-D1-SK			3.15	1/2 x 13	4.92	-	-	-	2.52	0.12
	41-80-1/2X13-150-D1-S	41-80-1/2X13-150-D1-SK			3.15	1/2 x 13	5.91	-	-	-	2.52	0.12
41-80-1/2X13-32-D1-X					3.15	1/2 x 13	-	-	1.26	-	2.52	0.12
			41-80-5/8X11-75-D1-U	41-80-5/8X11-75-D1-UK	3.15	5/8 x 11	-	2.95	-	-	2.52	0.12
			41-80-5/8X11-100-D1-U	41-80-5/8X11-100-D1-UK	3.15	5/8 x 11	-	3.94	-	-	2.52	0.12
			41-80-5/8X11-125-D1-U	41-80-5/8X11-125-D1-UK	3.15	5/8 x 11	-	4.92	-	-	2.52	0.12
			41-80-5/8X11-150-D1-U	41-80-5/8X11-150-D1-UK	3.15	5/8 x 11	-	5.91	-	-	2.52	0.12
41-80-5/8X11-38-D1-X					3.15	5/8 x 11	-	-	1.50	-	2.52	0.12
			41-80-3/4X10-100-D1-U	41-80-3/4X10-100-D1-UK	3.15	3/4 x 10	-	3.94	-	-	2.52	0.12
			41-80-3/4X10-125-D1-U	41-80-3/4X10-125-D1-UK	3.15	3/4 x 10	-	4.92	-	-	2.52	0.12
			41-80-3/4X10-150-D1-U	41-80-3/4X10-150-D1-UK	3.15	3/4 x 10	-	5.91	-	-	2.52	0.12
41-80-3/4X10-45-D1-X					3.15	3/4 x 10	-	-	1.77	-	2.52	0.12

Part Number X - External hex, tapped socket type	Part Number S - Without nut, external hex at the bottom	Part Number SK - With nut, external hex at the bottom	Part Number U - Without nut, internal hex at the top, wrench flat at the bottom	Part Number UK - With nut, internal hex at the top, wrench flat at the bottom	d₁	d₂	l₁ Version S / SK	Version U / UK	l₇ Version X	d₃	m	h₁

41-40-5/16X18-25-D3-X					1.57	5/16 x 18	-	-	0.98	-	1.18	0.08
	41-40-3/8X16-75-D3-S	41-40-3/8X16-75-D3-SK			1.57	3/8 x 16	2.95	-	-	-	1.18	0.08
	41-40-3/8X16-100-D3-S	41-40-3/8X16-100-D3-SK			1.57	3/8 x 16	3.94	-	-	-	1.18	0.08
	41-40-3/8X16-125-D3-S	41-40-3/8X16-125-D3-SK			1.57	3/8 x 16	4.92	-	-	-	1.18	0.08
	41-40-3/8X16-150-D3-S	41-40-3/8X16-150-D3-SK			1.57	3/8 x 16	5.91	-	-	-	1.18	0.08
41-40-3/8X16-28-D3-X					1.57	3/8 x 16	-	-	1.10	-	1.18	0.08
	41-40-1/2X13-75-D3-S	41-40-1/2X13-75-D3-SK			1.57	1/2 x 13	2.95	-	-	-	1.18	0.08
	41-40-1/2X13-100-D3-S	41-40-1/2X13-100-D3-SK			1.57	1/2 x 13	3.94	-	-	-	1.18	0.08
	41-40-1/2X13-125-D3-S	41-40-1/2X13-125-D3-SK			1.57	1/2 x 13	4.92	-	-	-	1.18	0.08
	41-40-1/2X13-150-D3-S	41-40-1/2X13-150-D3-SK			1.57	1/2 x 13	5.91	-	-	-	1.18	0.08
41-40-1/2X13-31-D3-X					1.57	1/2 x 13	-	-	1.22	-	1.18	0.08
			41-40-5/8X11-75-D3-U	41-40-5/8X11-75-D3-UK	1.57*	5/8 x 11	-	2.95	-	-	1.18	0.08
			41-40-5/8X11-100-D3-U	41-40-5/8X11-100-D3-UK	1.57*	5/8 x 11	-	3.94	-	-	1.18	0.08
			41-40-5/8X11-125-D3-U	41-40-5/8X11-125-D3-UK	1.57*	5/8 x 11	-	4.92	-	-	1.18	0.08
			41-40-5/8X11-150-D3-U	41-40-5/8X11-150-D3-UK	1.57*	5/8 x 11	-	5.91	-	-	1.18	0.08
41-40-5/8X11-37-D3-X					1.57*	5/8 x 11	-	-	1.46	-	1.18	0.08
41-50-5/16X18-25-D3-X					1.97	5/16 x 18	-	-	0.98	-	1.50	0.10
	41-50-3/8X16-75-D3-S	41-50-3/8X16-75-D3-SK			1.97	3/8 x 16	2.95	-	-	-	1.50	0.10
	41-50-3/8X16-100-D3-S	41-50-3/8X16-100-D3-SK			1.97	3/8 x 16	3.94	-	-	-	1.50	0.10
	41-50-3/8X16-125-D3-S	41-50-3/8X16-125-D3-SK			1.97	3/8 x 16	4.92	-	-	-	1.50	0.10
	41-50-3/8X16-150-D3-S	41-50-3/8X16-150-D3-SK			1.97	3/8 x 16	5.91	-	-	-	1.50	0.10
41-50-3/8X16-28-D3-X					1.97	3/8 x 16	-	-	1.10	-	1.50	0.10
	41-50-1/2X13-75-D3-S	41-50-1/2X13-75-D3-SK			1.97	1/2 x 13	2.95	-	-	-	1.50	0.10
	41-50-1/2X13-100-D3-S	41-50-1/2X13-100-D3-SK			1.97	1/2 x 13	3.94	-	-	-	1.50	0.10
	41-50-1/2X13-125-D3-S	41-50-1/2X13-125-D3-SK			1.97	1/2 x 13	4.92	-	-	-	1.50	0.10
	41-50-1/2X13-150-D3-S	41-50-1/2X13-150-D3-SK			1.97	1/2 x 13	5.91	-	-	-	1.50	0.10
41-50-1/2X13-32-D3-X					1.97	1/2 x 13	-	-	1.26	-	1.50	0.10
			41-50-5/8X11-75-D3-U	41-50-5/8X11-75-D3-UK	1.97	5/8 x 11	-	2.95	-	-	1.50	0.10
			41-50-5/8X11-100-D3-U	41-50-5/8X11-100-D3-UK	1.97	5/8 x 11	-	3.94	-	-	1.50	0.10
			41-50-5/8X11-125-D3-U	41-50-5/8X11-125-D3-UK	1.97	5/8 x 11	-	4.92	-	-	1.50	0.10
			41-50-5/8X11-150-D3-U	41-50-5/8X11-150-D3-UK	1.97	5/8 x 11	-	5.91	-	-	1.50	0.10
41-50-5/8X11-37-D3-X					1.97	5/8 x 11	-	-	1.46	-	1.50	0.10
41-60-5/16X18-25-D3-X					2.36	5/16 x 18	-	-	0.98	-	1.89	0.10
	41-60-3/8X16-75-D3-S	41-60-3/8X16-75-D3-SK			2.36	3/8 x 16	2.95	-	-	-	1.89	0.10
	41-60-3/8X16-100-D3-S	41-60-3/8X16-100-D3-SK			2.36	3/8 x 16	3.94	-	-	-	1.89	0.10
	41-60-3/8X16-125-D3-S	41-60-3/8X16-125-D3-SK			2.36	3/8 x 16	4.92	-	-	-	1.89	0.10
	41-60-3/8X16-150-D3-S	41-60-3/8X16-150-D3-SK			2.36	3/8 x 16	5.91	-	-	-	1.89	0.10
41-60-3/8X16-28-D3-X					2.36	3/8 x 16	-	-	1.10	-	1.89	0.10
	41-60-1/2X13-75-D3-S	41-60-1/2X13-75-D3-SK			2.36	1/2 x 13	2.95	-	-	-	1.89	0.10
	41-60-1/2X13-100-D3-S	41-60-1/2X13-100-D3-SK			2.36	1/2 x 13	3.94	-	-	-	1.89	0.10
	41-60-1/2X13-125-D3-S	41-60-1/2X13-125-D3-SK			2.36	1/2 x 13	4.92	-	-	-	1.89	0.10
	41-60-1/2X13-150-D3-S	41-60-1/2X13-150-D3-SK			2.36	1/2 x 13	5.91	-	-	-	1.89	0.10
41-60-1/2X13-32-D3-X					2.36	1/2 x 13	-	-	1.26	-	1.89	0.10
			41-60-5/8X11-75-D3-U	41-60-5/8X11-75-D3-UK	2.36	5/8 x 11	-	2.95	-	-	1.89	0.10
			41-60-5/8X11-100-D3-U	41-60-5/8X11-100-D3-UK	2.36	5/8 x 11	-	3.94	-	-	1.89	0.10
			41-60-5/8X11-125-D3-U	41-60-5/8X11-125-D3-UK	2.36	5/8 x 11	-	4.92	-	-	1.89	0.10
			41-60-5/8X11-150-D3-U	41-60-5/8X11-150-D3-UK	2.36	5/8 x 11	-	5.91	-	-	1.89	0.10
41-60-5/8X11-37-D3-X					2.36	5/8 x 11	-	-	1.46	-	1.89	0.10
41-80-5/16X18-26-D3-X					3.15	5/16 x 18	-	-	1.02	-	2.52	0.12
	41-80-3/8X16-75-D3-S	41-80-3/8X16-75-D3-SK			3.15	3/8 x 16	2.95	-	-	-	2.52	0.12
	41-80-3/8X16-100-D3-S	41-80-3/8X16-100-D3-SK			3.15	3/8 x 16	3.94	-	-	-	2.52	0.12
	41-80-3/8X16-125-D3-S	41-80-3/8X16-125-D3-SK			3.15	3/8 x 16	4.92	-	-	-	2.52	0.12
	41-80-3/8X16-150-D3-S	41-80-3/8X16-150-D3-SK			3.15	3/8 x 16	5.91	-	-	-	2.52	0.12
41-80-3/8X16-29-D3-X					3.15	3/8 x 16	-	-	1.14	-	2.52	0.12
	41-80-1/2X13-75-D3-S	41-80-1/2X13-75-D3-SK			3.15	1/2 x 13	2.95	-	-	-	2.52	0.12
	41-80-1/2X13-100-D3-S	41-80-1/2X13-100-D3-SK			3.15	1/2 x 13	3.94	-	-	-	2.52	0.12
	41-80-1/2X13-125-D3-S	41-80-1/2X13-125-D3-SK			3.15	1/2 x 13	4.92	-	-	-	2.52	0.12
	41-80-1/2X13-150-D3-S	41-80-1/2X13-150-D3-SK			3.15	1/2 x 13	5.91	-	-	-	2.52	0.12
41-80-1/2X13-32-D3-X					3.15	1/2 x 13	-	-	1.26	-	2.52	0.12
			41-80-5/8X11-75-D3-U	41-80-5/8X11-75-D3-UK	3.15	5/8 x 11	-	2.95	-	-	2.52	0.12
			41-80-5/8X11-100-D3-U	41-80-5/8X11-100-D3-UK	3.15	5/8 x 11	-	3.94	-	-	2.52	0.12
			41-80-5/8X11-125-D3-U	41-80-5/8X11-125-D3-UK	3.15	5/8 x 11	-	4.92	-	-	2.52	0.12
			41-80-5/8X11-150-D3-U	41-80-5/8X11-150-D3-UK	3.15	5/8 x 11	-	5.91	-	-	2.52	0.12
41-80-5/8X11-38-D3-X					3.15	5/8 x 11	-	-	1.50	-	2.52	0.12
			41-80-3/4X10-100-D3-U	41-80-3/4X10-100-D3-UK	3.15	3/4 x 10	-	3.94	-	-	2.52	0.12
			41-80-3/4X10-125-D3-U	41-80-3/4X10-125-D3-UK	3.15	3/4 x 10	-	4.92	-	-	2.52	0.12
			41-80-3/4X10-150-D3-U	41-80-3/4X10-150-D3-UK	3.15	3/4 x 10	-	5.91	-	-	2.52	0.12
41-80-3/4X10-45-D3-X					3.15	3/4 x 10	-	-	1.77	-	2.52	0.12

Show / Hide columns

Inch

Dimensions in: Inch (change to Metric)

d₁	d₂	l₁ Version S / SK				Version U / UK				l₇ Version X	d₃	m	h₁

1.57	5/16 x 18	-	-	-	-	-	-	-	-	0.98	0.21	1.18	0.08
1.57	3/8 x 16	2.95	3.94	4.92	5.91	-	-	-	-	1.10	0.21	1.18	0.08
1.57	1/2 x 13	2.95	3.94	4.92	5.91	-	-	-	-	1.22	0.21	1.18	0.08
1.57*	5/8 x 11	-	-	-	-	2.95	3.94	4.92	5.91	1.46	0.21	1.18	0.08
1.97	5/16 x 18	-	-	-	-	-	-	-	-	0.98	0.26	1.50	0.10
1.97	3/8 x 16	2.95	3.94	4.92	5.91	-	-	-	-	1.10	0.26	1.50	0.10
1.97	1/2 x 13	2.95	3.94	4.92	5.91	-	-	-	-	1.26	0.26	1.50	0.10
1.97	5/8 x 11	-	-	-	-	2.95	3.94	4.92	5.91	1.46	0.26	1.50	0.10
2.36	5/16 x 18	-	-	-	-	-	-	-	-	0.98	0.26	1.89	0.10
2.36	3/8 x 16	2.95	3.94	4.92	5.91	-	-	-	-	1.10	0.26	1.89	0.10
2.36	1/2 x 13	2.95	3.94	4.92	5.91	-	-	-	-	1.26	0.26	1.89	0.10
2.36	5/8 x 11	-	-	-	-	2.95	3.94	4.92	5.91	1.46	0.26	1.89	0.10
3.15	5/16 x 18	-	-	-	-	-	-	-	-	1.02	0.33	2.52	0.12
3.15	3/8 x 16	2.95	3.94	4.92	5.91	-	-	-	-	1.14	0.33	2.52	0.12
3.15	1/2 x 13	2.95	3.94	4.92	5.91	-	-	-	-	1.26	0.33	2.52	0.12
3.15	5/8 x 11	-	-	-	-	2.95	3.94	4.92	5.91	1.50	0.33	2.52	0.12
3.15	3/4 x 10	-	-	-	-	3.94	4.92	5.91	-	1.77	0.33	2.52	0.12

Show / Hide columns

Dimensions in: Inch (change to Metric)

d₁	d₂	h₃	h₄	h₆	s	A/F₁ (inches)	A/F₂ (inches)	A/F₃ (inches)	A/F₇ (inches)	t

1.57	5/16 x 18	-	-	0.14	0.06	-	-	-	1/2	0.31
1.57	3/8 x 16	0.43	-	0.14	0.06	11/16	-	-	1/2	0.39
1.57	1/2 x 13	0.43	-	0.14	0.06	11/16	-	-	5/8	0.47
1.57	5/8 x 11	-	0.67	0.14	0.06	-	1/2	5/16	7/8	0.63
1.97	5/16 x 18	-	-	0.16	0.08	-	-	-	1/2	0.31
1.97	3/8 x 16	0.43	-	0.16	0.08	11/16	-	-	1/2	0.39
1.97	1/2 x 13	0.43	-	0.16	0.08	11/16	-	-	5/8	0.47
1.97	5/8 x 11	-	0.67	0.16	0.08	-	1/2	5/16	7/8	0.63
2.36	5/16 x 18	-	-	0.18	0.08	-	-	-	1/2	0.31
2.36	3/8 x 16	0.43	-	0.18	0.08	11/16	-	-	1/2	0.39
2.36	1/2 x 13	0.43	-	0.18	0.08	11/16	-	-	5/8	0.47
2.36	5/8 x 11	-	0.67	0.18	0.08	-	1/2	5/16	7/8	0.63
3.15	5/16 x 18	-	-	0.20	0.08	-	-	-	1/2	0.31
3.15	3/8 x 16	0.47	-	0.20	0.08	11/16	-	-	1/2	0.39
3.15	1/2 x 13	0.47	-	0.20	0.08	11/16	-	-	5/8	0.47
3.15	5/8 x 11	-	0.71	0.20	0.08	-	1/2	5/16	7/8	0.63
3.15	3/4 x 10	-	0.75	0.20	0.08	-	9/16	7/16	1	0.79

Show / Hide columns

Dimensions in: Inch (change to Metric)

d₁	d₂	Static load Version S / SK	Version U / UK	Version X

1.57	5/16 x 18	1798 lbf (8 kN)	-	1798 lbf (8 kN)
1.57	3/8 x 16	2698 lbf (12 kN)	-	2698 lbf (12 kN)
1.57	1/2 x 13	2698 lbf (12 kN)	-	2698 lbf (12 kN)
1.57	5/8 x 11	-	2698 lbf (12 kN)	2698 lbf (12 kN)
1.97	5/16 x 18	1798 lbf (8 kN)	-	1798 lbf (8 kN)
1.97	3/8 x 16	3147 lbf (14 kN)	-	3147 lbf (14 kN)
1.97	1/2 x 13	3147 lbf (14 kN)	-	3147 lbf (14 kN)
1.97	5/8 x 11	-	3147 lbf (14 kN)	3147 lbf (14 kN)
2.36	5/16 x 18	1798 lbf (8 kN)	-	1798 lbf (8 kN)
2.36	3/8 x 16	3147 lbf (14 kN)	-	3147 lbf (14 kN)
2.36	1/2 x 13	3597 lbf (16 kN)	-	3597 lbf (16 kN)
2.36	5/8 x 11	-	3597 lbf (16 kN)	3597 lbf (16 kN)
3.15	5/16 x 18	1798 lbf (8 kN)	-	1798 lbf (8 kN)
3.15	3/8 x 16	3147 lbf (14 kN)	-	3147 lbf (14 kN)
3.15	1/2 x 13	4496 lbf (20 kN)	-	4496 lbf (20 kN)
3.15	5/8 x 11	-	4496 lbf (20 kN)	4496 lbf (20 kN)
3.15	3/4 x 10	-	4496 lbf (20 kN)	4496 lbf (20 kN)

* Not available in type B0

Build & Price

Selected Part

Part Number

Total (net)

Can$12.48

Available within 1-2 weeks

Quantity

Create Project List

Save as Favorites

Please note our quantity discounts (Canadian Dollars).

Min	Max	Price
1	49	Can$12.48
50	99	Can$11.44
100	249	Can$10.40
≥ 250		Can$9.36

Prop 65: Not compliant

WARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov

RoHS: Compliant

This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).

Weight: 0.351 lbs

If weight is not listed, please contact our Sales Department for additional information regarding weight.
Phone: 1-800-397-6993

CAD Download

Other Data Formats

About CAD Downloads

Need Help?

Our service team is available from Monday to Friday between 8:00 AM and 5:30 PM Eastern Time: 800-397-6993

Special Requests | Contact our sales team

JW Winco Services

Request Callback

JW Winco Handbook

Your Contact

GN 41 Leveling Feet Stainless Steel, Tapped Socket or Threaded Stud Type

Product Family Stainless Steel

Product description

Specification

On request

Part Options / Table

Type (Base)

Version (Stud / Socket)

Type (Base): B0 - Without rubber pad / cap, with 2 mounting holes

Type (Base): D0 - Without rubber pad / cap

Type (Base): D1 - With rubber cap, clipped on, black

Type (Base): D3 - With rubber pad, vulcanized, black

Type (Base): B0 - Without rubber pad / cap, with 2 mounting holes

Type (Base): D0 - Without rubber pad / cap

Type (Base): D1 - With rubber cap, clipped on, black

Type (Base): D3 - With rubber pad, vulcanized, black

Type (Base): B0 - Without rubber pad / cap, with 2 mounting holes

Type (Base): D0 - Without rubber pad / cap

Type (Base): D1 - With rubber cap, clipped on, black

Type (Base): D3 - With rubber pad, vulcanized, black

Inch

Build & Price

Selected Part

CAD Download

CAD data

Login

Email CAD File

Need Help?

This could also be interesting...

Your Contact

JW Winco Services
