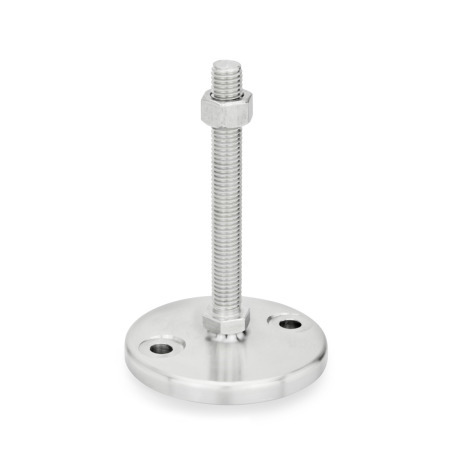

GN 23 Leveling Feet Stainless Steel, Tapped Socket or Threaded Stud Type, with Turned Base, with Mounting Holes

Leveling Feet GN 23: Stainless Steel, Tapped Socket or Threaded Stud Type, with Turned Base, with Mounting Holes

Type (Base): D0 - Fine turned, without rubber pad
Version (Stud / Socket): SK - With nut, external hex at the bottom

Product Family Stainless Steel

Standard parts made of rustproof stainless steel have been designed for use in the food sector, in the chemical industry, for aggressive ambient conditions or for outdoor use.

corrosion-resistant
precise fit
environmentally friendly

Show all Stainless Steel products

Load Rating Information Plastic Characteristics Stainless Steel Characteristics

Product description

Leveling feet GN 23 have a machined base and higher load ratings. The unique design of the base with the convex mounting area for the concave ended stud provides not only the ability for the stud to swivel, but also does not allow liquids to build up as it will with other ball socket leveling feet.

These leveling feet are supplied fully assembled and cannot be disassembled.

Specification

Base
Stainless steel AISI 304

Threaded stud / tapped socket
Stainless steel AISI 303

Hex nut
ANSI / ASME B18.2.2
Stainless steel AISI 304

Rubber pad inlay
NBR (Perbunan^®) 70 Shore A, black

RoHS

On request

Stud versions T / TK, V / VK and W with certain minimum quantities

GN 23 Inch Thread, Stainless Steel Leveling Feet, Tapped Socket or Threaded Stud Type, with Turned Base, with Mounting Holes sketch

Hide technical drawing

Part Options / Table

Type (Base)

D0	Fine turned, without rubber pad
D1	Fine turned, with rubber pad inlay, black

Version (Stud / Socket)

S	Without nut, external hex at the bottom
SK	With nut, external hex at the bottom
U	Without nut, internal hex at the top, wrench flat at the bottom
UK	With nut, internal hex at the top, wrench flat at the bottom
X	External hex, tapped socket type

Part Number D0 - Fine turned, without rubber pad	Part Number D1 - Fine turned, with rubber pad inlay, black	d₁	d₂	l₁ Version S / SK	Version U / UK	l₇ Version X	h₁	h₂	k

23-80-5/16X18-34-D0-X		3.15	5/16 x 18	-	-	1.34	0.33	-	2.15
	23-80-5/16X18-34-D1-X	3.15	5/16 x 18	-	-	1.34	-	0.08	2.15
23-80-3/8X16-37-D0-X		3.15	3/8 x 16	-	-	1.46	0.33	-	2.15
	23-80-3/8X16-37-D1-X	3.15	3/8 x 16	-	-	1.46	-	0.08	2.15
23-80-1/2X13-40-D0-X		3.15	1/2 x 13	-	-	1.57	0.33	-	2.15
	23-80-1/2X13-40-D1-X	3.15	1/2 x 13	-	-	1.57	-	0.08	2.15
23-80-5/8X11-46-D0-X		3.15	5/8 x 11	-	-	1.81	0.33	-	2.15
	23-80-5/8X11-46-D1-X	3.15	5/8 x 11	-	-	1.81	-	0.08	2.15
23-80-3/4X10-54-D0-X		3.15	3/4 x 10	-	-	2.13	0.33	-	2.15
	23-80-3/4X10-54-D1-X	3.15	3/4 x 10	-	-	2.13	-	0.08	2.15
23-100-5/16X18-35-D0-X		3.94	5/16 x 18	-	-	1.38	0.35	-	2.78
	23-100-5/16X18-35-D1-X	3.94	5/16 x 18	-	-	1.38	-	0.12	2.78
23-100-3/8X16-38-D0-X		3.94	3/8 x 16	-	-	1.50	0.35	-	2.78
	23-100-3/8X16-38-D1-X	3.94	3/8 x 16	-	-	1.50	-	0.12	2.78
23-100-1/2X13-41-D0-X		3.94	1/2 x 13	-	-	1.61	0.35	-	2.78
	23-100-1/2X13-41-D1-X	3.94	1/2 x 13	-	-	1.61	-	0.12	2.78
23-100-5/8X11-47-D0-X		3.94	5/8 x 11	-	-	1.85	0.35	-	2.78
	23-100-5/8X11-47-D1-X	3.94	5/8 x 11	-	-	1.85	-	0.12	2.78
23-100-3/4X10-55-D0-X		3.94	3/4 x 10	-	-	2.17	0.35	-	2.78
	23-100-3/4X10-55-D1-X	3.94	3/4 x 10	-	-	2.17	-	0.12	2.78
23-120-3/4X10-59-D0-X		4.72	3/4 x 10	-	-	2.32	0.47	-	3.76
	23-120-3/4X10-59-D1-X	4.72	3/4 x 10	-	-	2.32	-	0.14	3.76

Part Number D0 - Fine turned, without rubber pad	Part Number D1 - Fine turned, with rubber pad inlay, black	d₁	d₂	l₁ Version S / SK	Version U / UK	l₇ Version X	h₁	h₂	k

23-80-3/8X16-75-D0-S		3.15	3/8 x 16	2.95	-	-	0.33	-	2.15
	23-80-3/8X16-75-D1-S	3.15	3/8 x 16	2.95	-	-	-	0.08	2.15
23-80-3/8X16-100-D0-S		3.15	3/8 x 16	3.94	-	-	0.33	-	2.15
	23-80-3/8X16-100-D1-S	3.15	3/8 x 16	3.94	-	-	-	0.08	2.15
23-80-3/8X16-125-D0-S		3.15	3/8 x 16	4.92	-	-	0.33	-	2.15
	23-80-3/8X16-125-D1-S	3.15	3/8 x 16	4.92	-	-	-	0.08	2.15
23-80-3/8X16-150-D0-S		3.15	3/8 x 16	5.91	-	-	0.33	-	2.15
	23-80-3/8X16-150-D1-S	3.15	3/8 x 16	5.91	-	-	-	0.08	2.15
23-80-1/2X13-75-D0-S		3.15	1/2 x 13	2.95	-	-	0.33	-	2.15
	23-80-1/2X13-75-D1-S	3.15	1/2 x 13	2.95	-	-	-	0.08	2.15
23-80-1/2X13-100-D0-S		3.15	1/2 x 13	3.94	-	-	0.33	-	2.15
	23-80-1/2X13-100-D1-S	3.15	1/2 x 13	3.94	-	-	-	0.08	2.15
23-80-1/2X13-125-D0-S		3.15	1/2 x 13	4.92	-	-	0.33	-	2.15
	23-80-1/2X13-125-D1-S	3.15	1/2 x 13	4.92	-	-	-	0.08	2.15
23-80-1/2X13-150-D0-S		3.15	1/2 x 13	5.91	-	-	0.33	-	2.15
	23-80-1/2X13-150-D1-S	3.15	1/2 x 13	5.91	-	-	-	0.08	2.15
23-100-3/8X16-75-D0-S		3.94	3/8 x 16	2.95	-	-	0.35	-	2.78
	23-100-3/8X16-75-D1-S	3.94	3/8 x 16	2.95	-	-	-	0.12	2.78
23-100-3/8X16-100-D0-S		3.94	3/8 x 16	3.94	-	-	0.35	-	2.78
	23-100-3/8X16-100-D1-S	3.94	3/8 x 16	3.94	-	-	-	0.12	2.78
23-100-3/8X16-125-D0-S		3.94	3/8 x 16	4.92	-	-	0.35	-	2.78
	23-100-3/8X16-125-D1-S	3.94	3/8 x 16	4.92	-	-	-	0.12	2.78
23-100-3/8X16-150-D0-S		3.94	3/8 x 16	5.91	-	-	0.35	-	2.78
	23-100-3/8X16-150-D1-S	3.94	3/8 x 16	5.91	-	-	-	0.12	2.78
23-100-1/2X13-75-D0-S		3.94	1/2 x 13	2.95	-	-	0.35	-	2.78
	23-100-1/2X13-75-D1-S	3.94	1/2 x 13	2.95	-	-	-	0.12	2.78
23-100-1/2X13-100-D0-S		3.94	1/2 x 13	3.94	-	-	0.35	-	2.78
	23-100-1/2X13-100-D1-S	3.94	1/2 x 13	3.94	-	-	-	0.12	2.78
23-100-1/2X13-125-D0-S		3.94	1/2 x 13	4.92	-	-	0.35	-	2.78
	23-100-1/2X13-125-D1-S	3.94	1/2 x 13	4.92	-	-	-	0.12	2.78
23-100-1/2X13-150-D0-S		3.94	1/2 x 13	5.91	-	-	0.35	-	2.78
	23-100-1/2X13-150-D1-S	3.94	1/2 x 13	5.91	-	-	-	0.12	2.78

Part Number D0 - Fine turned, without rubber pad	Part Number D1 - Fine turned, with rubber pad inlay, black	d₁	d₂	l₁ Version S / SK	Version U / UK	l₇ Version X	h₁	h₂	k

23-80-3/8X16-75-D0-SK		3.15	3/8 x 16	2.95	-	-	0.33	-	2.15
	23-80-3/8X16-75-D1-SK	3.15	3/8 x 16	2.95	-	-	-	0.08	2.15
23-80-3/8X16-100-D0-SK		3.15	3/8 x 16	3.94	-	-	0.33	-	2.15
	23-80-3/8X16-100-D1-SK	3.15	3/8 x 16	3.94	-	-	-	0.08	2.15
23-80-3/8X16-125-D0-SK		3.15	3/8 x 16	4.92	-	-	0.33	-	2.15
	23-80-3/8X16-125-D1-SK	3.15	3/8 x 16	4.92	-	-	-	0.08	2.15
23-80-3/8X16-150-D0-SK		3.15	3/8 x 16	5.91	-	-	0.33	-	2.15
	23-80-3/8X16-150-D1-SK	3.15	3/8 x 16	5.91	-	-	-	0.08	2.15
23-80-1/2X13-75-D0-SK		3.15	1/2 x 13	2.95	-	-	0.33	-	2.15
	23-80-1/2X13-75-D1-SK	3.15	1/2 x 13	2.95	-	-	-	0.08	2.15
23-80-1/2X13-100-D0-SK		3.15	1/2 x 13	3.94	-	-	0.33	-	2.15
	23-80-1/2X13-100-D1-SK	3.15	1/2 x 13	3.94	-	-	-	0.08	2.15
23-80-1/2X13-125-D0-SK		3.15	1/2 x 13	4.92	-	-	0.33	-	2.15
	23-80-1/2X13-125-D1-SK	3.15	1/2 x 13	4.92	-	-	-	0.08	2.15
23-80-1/2X13-150-D0-SK		3.15	1/2 x 13	5.91	-	-	0.33	-	2.15
	23-80-1/2X13-150-D1-SK	3.15	1/2 x 13	5.91	-	-	-	0.08	2.15
23-100-3/8X16-75-D0-SK		3.94	3/8 x 16	2.95	-	-	0.35	-	2.78
	23-100-3/8X16-75-D1-SK	3.94	3/8 x 16	2.95	-	-	-	0.12	2.78
23-100-3/8X16-100-D0-SK		3.94	3/8 x 16	3.94	-	-	0.35	-	2.78
	23-100-3/8X16-100-D1-SK	3.94	3/8 x 16	3.94	-	-	-	0.12	2.78
23-100-3/8X16-125-D0-SK		3.94	3/8 x 16	4.92	-	-	0.35	-	2.78
	23-100-3/8X16-125-D1-SK	3.94	3/8 x 16	4.92	-	-	-	0.12	2.78
23-100-3/8X16-150-D0-SK		3.94	3/8 x 16	5.91	-	-	0.35	-	2.78
	23-100-3/8X16-150-D1-SK	3.94	3/8 x 16	5.91	-	-	-	0.12	2.78
23-100-1/2X13-75-D0-SK		3.94	1/2 x 13	2.95	-	-	0.35	-	2.78
	23-100-1/2X13-75-D1-SK	3.94	1/2 x 13	2.95	-	-	-	0.12	2.78
23-100-1/2X13-100-D0-SK		3.94	1/2 x 13	3.94	-	-	0.35	-	2.78
	23-100-1/2X13-100-D1-SK	3.94	1/2 x 13	3.94	-	-	-	0.12	2.78
23-100-1/2X13-125-D0-SK		3.94	1/2 x 13	4.92	-	-	0.35	-	2.78
	23-100-1/2X13-125-D1-SK	3.94	1/2 x 13	4.92	-	-	-	0.12	2.78
23-100-1/2X13-150-D0-SK		3.94	1/2 x 13	5.91	-	-	0.35	-	2.78
	23-100-1/2X13-150-D1-SK	3.94	1/2 x 13	5.91	-	-	-	0.12	2.78

Part Number D0 - Fine turned, without rubber pad	Part Number D1 - Fine turned, with rubber pad inlay, black	d₁	d₂	l₁ Version S / SK	Version U / UK	l₇ Version X	h₁	h₂	k

23-80-5/8X11-75-D0-U		3.15	5/8 x 11	-	2.95	-	0.33	-	2.15
	23-80-5/8X11-75-D1-U	3.15	5/8 x 11	-	2.95	-	-	0.08	2.15
23-80-5/8X11-100-D0-U		3.15	5/8 x 11	-	3.94	-	0.33	-	2.15
	23-80-5/8X11-100-D1-U	3.15	5/8 x 11	-	3.94	-	-	0.08	2.15
23-80-5/8X11-125-D0-U		3.15	5/8 x 11	-	4.92	-	0.33	-	2.15
	23-80-5/8X11-125-D1-U	3.15	5/8 x 11	-	4.92	-	-	0.08	2.15
23-80-5/8X11-150-D0-U		3.15	5/8 x 11	-	5.91	-	0.33	-	2.15
	23-80-5/8X11-150-D1-U	3.15	5/8 x 11	-	5.91	-	-	0.08	2.15
23-80-3/4X10-100-D0-U		3.15	3/4 x 10	-	3.94	-	0.33	-	2.15
	23-80-3/4X10-100-D1-U	3.15	3/4 x 10	-	3.94	-	-	0.08	2.15
23-80-3/4X10-125-D0-U		3.15	3/4 x 10	-	4.92	-	0.33	-	2.15
	23-80-3/4X10-125-D1-U	3.15	3/4 x 10	-	4.92	-	-	0.08	2.15
23-80-3/4X10-150-D0-U		3.15	3/4 x 10	-	5.91	-	0.33	-	2.15
	23-80-3/4X10-150-D1-U	3.15	3/4 x 10	-	5.91	-	-	0.08	2.15
23-100-5/8X11-75-D0-U		3.94	5/8 x 11	-	2.95	-	0.35	-	2.78
	23-100-5/8X11-75-D1-U	3.94	5/8 x 11	-	2.95	-	-	0.12	2.78
23-100-5/8X11-100-D0-U		3.94	5/8 x 11	-	3.94	-	0.35	-	2.78
	23-100-5/8X11-100-D1-U	3.94	5/8 x 11	-	3.94	-	-	0.12	2.78
23-100-5/8X11-125-D0-U		3.94	5/8 x 11	-	4.92	-	0.35	-	2.78
	23-100-5/8X11-125-D1-U	3.94	5/8 x 11	-	4.92	-	-	0.12	2.78
23-100-5/8X11-150-D0-U		3.94	5/8 x 11	-	5.91	-	0.35	-	2.78
	23-100-5/8X11-150-D1-U	3.94	5/8 x 11	-	5.91	-	-	0.12	2.78
23-100-3/4X10-100-D0-U		3.94	3/4 x 10	-	3.94	-	0.35	-	2.78
	23-100-3/4X10-100-D1-U	3.94	3/4 x 10	-	3.94	-	-	0.12	2.78
23-100-3/4X10-125-D0-U		3.94	3/4 x 10	-	4.92	-	0.35	-	2.78
	23-100-3/4X10-125-D1-U	3.94	3/4 x 10	-	4.92	-	-	0.12	2.78
23-100-3/4X10-150-D0-U		3.94	3/4 x 10	-	5.91	-	0.35	-	2.78
	23-100-3/4X10-150-D1-U	3.94	3/4 x 10	-	5.91	-	-	0.12	2.78
23-120-3/4X10-100-D0-U		4.72	3/4 x 10	-	3.94	-	0.47	-	3.76
	23-120-3/4X10-100-D1-U	4.72	3/4 x 10	-	3.94	-	-	0.14	3.76
23-120-3/4X10-125-D0-U		4.72	3/4 x 10	-	4.92	-	0.47	-	3.76
	23-120-3/4X10-125-D1-U	4.72	3/4 x 10	-	4.92	-	-	0.14	3.76
23-120-3/4X10-150-D0-U		4.72	3/4 x 10	-	5.91	-	0.47	-	3.76
	23-120-3/4X10-150-D1-U	4.72	3/4 x 10	-	5.91	-	-	0.14	3.76

Part Number D0 - Fine turned, without rubber pad	Part Number D1 - Fine turned, with rubber pad inlay, black	d₁	d₂	l₁ Version S / SK	Version U / UK	l₇ Version X	h₁	h₂	k

23-80-5/8X11-75-D0-UK		3.15	5/8 x 11	-	2.95	-	0.33	-	2.15
	23-80-5/8X11-75-D1-UK	3.15	5/8 x 11	-	2.95	-	-	0.08	2.15
23-80-5/8X11-100-D0-UK		3.15	5/8 x 11	-	3.94	-	0.33	-	2.15
	23-80-5/8X11-100-D1-UK	3.15	5/8 x 11	-	3.94	-	-	0.08	2.15
23-80-5/8X11-125-D0-UK		3.15	5/8 x 11	-	4.92	-	0.33	-	2.15
	23-80-5/8X11-125-D1-UK	3.15	5/8 x 11	-	4.92	-	-	0.08	2.15
23-80-5/8X11-150-D0-UK		3.15	5/8 x 11	-	5.91	-	0.33	-	2.15
	23-80-5/8X11-150-D1-UK	3.15	5/8 x 11	-	5.91	-	-	0.08	2.15
23-80-3/4X10-100-D0-UK		3.15	3/4 x 10	-	3.94	-	0.33	-	2.15
	23-80-3/4X10-100-D1-UK	3.15	3/4 x 10	-	3.94	-	-	0.08	2.15
23-80-3/4X10-125-D0-UK		3.15	3/4 x 10	-	4.92	-	0.33	-	2.15
	23-80-3/4X10-125-D1-UK	3.15	3/4 x 10	-	4.92	-	-	0.08	2.15
23-80-3/4X10-150-D0-UK		3.15	3/4 x 10	-	5.91	-	0.33	-	2.15
	23-80-3/4X10-150-D1-UK	3.15	3/4 x 10	-	5.91	-	-	0.08	2.15
23-100-5/8X11-75-D0-UK		3.94	5/8 x 11	-	2.95	-	0.35	-	2.78
	23-100-5/8X11-75-D1-UK	3.94	5/8 x 11	-	2.95	-	-	0.12	2.78
23-100-5/8X11-100-D0-UK		3.94	5/8 x 11	-	3.94	-	0.35	-	2.78
	23-100-5/8X11-100-D1-UK	3.94	5/8 x 11	-	3.94	-	-	0.12	2.78
23-100-5/8X11-125-D0-UK		3.94	5/8 x 11	-	4.92	-	0.35	-	2.78
	23-100-5/8X11-125-D1-UK	3.94	5/8 x 11	-	4.92	-	-	0.12	2.78
23-100-5/8X11-150-D0-UK		3.94	5/8 x 11	-	5.91	-	0.35	-	2.78
	23-100-5/8X11-150-D1-UK	3.94	5/8 x 11	-	5.91	-	-	0.12	2.78
23-100-3/4X10-100-D0-UK		3.94	3/4 x 10	-	3.94	-	0.35	-	2.78
	23-100-3/4X10-100-D1-UK	3.94	3/4 x 10	-	3.94	-	-	0.12	2.78
23-100-3/4X10-125-D0-UK		3.94	3/4 x 10	-	4.92	-	0.35	-	2.78
	23-100-3/4X10-125-D1-UK	3.94	3/4 x 10	-	4.92	-	-	0.12	2.78
23-100-3/4X10-150-D0-UK		3.94	3/4 x 10	-	5.91	-	0.35	-	2.78
	23-100-3/4X10-150-D1-UK	3.94	3/4 x 10	-	5.91	-	-	0.12	2.78
23-120-3/4X10-100-D0-UK		4.72	3/4 x 10	-	3.94	-	0.47	-	3.76
	23-120-3/4X10-100-D1-UK	4.72	3/4 x 10	-	3.94	-	-	0.14	3.76
23-120-3/4X10-125-D0-UK		4.72	3/4 x 10	-	4.92	-	0.47	-	3.76
	23-120-3/4X10-125-D1-UK	4.72	3/4 x 10	-	4.92	-	-	0.14	3.76
23-120-3/4X10-150-D0-UK		4.72	3/4 x 10	-	5.91	-	0.47	-	3.76
	23-120-3/4X10-150-D1-UK	4.72	3/4 x 10	-	5.91	-	-	0.14	3.76

Show / Hide columns

Inch

Dimensions in: Inch (change to Metric)

d₁	d₂	l₁ Version S / SK				Version U / UK				l₇ Version X	h₁	h₂	k

3.15	5/16 x 18	-	-	-	-	-	-	-	-	1.34	0.33	0.08	2.15
3.15	3/8 x 16	2.95	3.94	4.92	5.91	-	-	-	-	1.46	0.33	0.08	2.15
3.15	1/2 x 13	2.95	3.94	4.92	5.91	-	-	-	-	1.57	0.33	0.08	2.15
3.15	5/8 x 11	-	-	-	-	2.95	3.94	4.92	5.91	1.81	0.33	0.08	2.15
3.15	3/4 x 10	-	-	-	-	3.94	4.92	5.91	-	2.13	0.33	0.08	2.15
3.94	5/16 x 18	-	-	-	-	-	-	-	-	1.38	0.35	0.12	2.78
3.94	3/8 x 16	2.95	3.94	4.92	5.91	-	-	-	-	1.50	0.35	0.12	2.78
3.94	1/2 x 13	2.95	3.94	4.92	5.91	-	-	-	-	1.61	0.35	0.12	2.78
3.94	5/8 x 11	-	-	-	-	2.95	3.94	4.92	5.91	1.85	0.35	0.12	2.78
3.94	3/4 x 10	-	-	-	-	3.94	4.92	5.91	-	2.17	0.35	0.12	2.78
4.72	3/4 x 10	-	-	-	-	3.94	4.92	5.91	-	2.32	0.47	0.14	3.76

Show / Hide columns

Dimensions in: Inch (change to Metric)

d₁	d₂	h₃	h₄	A/F₁ (inches)	A/F₂ (inches)	A/F₃ (inches)	A/F₇ (inches)	t

3.15	5/16 x 18	-	-	-	-	-	1/2	0.31
3.15	3/8 x 16	0.77	-	11/16	-	-	1/2	0.39
3.15	1/2 x 13	0.77	-	11/16	-	-	5/8	0.47
3.15	5/8 x 11	-	1.00	-	1/2	5/16	7/8	0.63
3.15	3/4 x 10	-	1.06	-	9/16	7/16	1	0.79
3.94	5/16 x 18	-	-	-	-	-	1/2	0.31
3.94	3/8 x 16	0.81	-	11/16	-	-	1/2	0.39
3.94	1/2 x 13	0.81	-	11/16	-	-	5/8	0.47
3.94	5/8 x 11	-	1.04	-	1/2	5/16	7/8	0.63
3.94	3/4 x 10	-	1.10	-	9/16	7/16	1	0.79
4.72	3/4 x 10	-	1.26	-	9/16	7/16	1	0.79

Show / Hide columns

Dimensions in: Inch (change to Metric)

d₁	d₂	Static load Version S / SK	Version U / UK	Version X

3.15	5/16 x 18	1349 lbf (6 kN)	-	3822 lbf (17 kN)
3.15	3/8 x 16	2473 lbf (11 kN)	-	3822 lbf (17 kN)
3.15	1/2 x 13	3597 lbf (16 kN)	-	3822 lbf (17 kN)
3.15	5/8 x 11	-	3822 lbf (17 kN)	3822 lbf (17 kN)
3.15	3/4 x 10	-	6295 lbf (28 kN)	6295 lbf (28 kN)
3.94	5/16 x 18	1349 lbf (6 kN)	-	3822 lbf (17 kN)
3.94	3/8 x 16	2473 lbf (11 kN)	-	3822 lbf (17 kN)
3.94	1/2 x 13	3597 lbf (16 kN)	-	3822 lbf (17 kN)
3.94	5/8 x 11	-	3822 lbf (17 kN)	3822 lbf (17 kN)
3.94	3/4 x 10	-	6295 lbf (28 kN)	6295 lbf (28 kN)
4.72	3/4 x 10	-	6295 lbf (28 kN)	6295 lbf (28 kN)

Build & Price

Load Capacity for Leveling Feet

At a spindle thread size M 10 and higher, the static load of the leveling feet GN 21 / GN 22 / GN 23 / GN 24 is limited owing to the permissible contact pressure of the adjustment spindle acting on the base plate (at a spindle strength ≥ 500 N/mm2). The values given in the table (valid for type D0 without rubber underlay) assume a clean pressure load perpendicular to the base plate. Bending and buckling stress which often occurs in practice results in a lower load-bearing capacity of the adjustment spindle and may have to be taken into account.

The details given on strength are non-binding guide values without any liability. In general, they do not constitute a warranty of quality.

The user must determine from case to case if a product is suitable for the intended purpose or use. Environmental factors may influence the stated values.

Selected Part

Part Number

Total (net)

Can$99.12

Available within 1-2 weeks

Quantity

Create Project List

Save as Favorites

Please note our quantity discounts (Canadian Dollars).

Min	Max	Price
1	49	Can$99.12
50	99	Can$90.86
100	249	Can$82.60
≥ 250		Can$74.34

Prop 65: Not compliant

WARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov

RoHS: Compliant

This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).

Weight: 0.714 lbs

If weight is not listed, please contact our Sales Department for additional information regarding weight.
Phone: 1-800-397-6993

CAD Download

Other Data Formats

About CAD Downloads

Need Help?

Our service team is available from Monday to Friday between 8:00 AM and 5:30 PM Eastern Time: 800-397-6993

Special Requests | Contact our sales team

Request Callback

Your Contact

GN 23 Leveling Feet Stainless Steel, Tapped Socket or Threaded Stud Type, with Turned Base, with Mounting Holes

Product Family Stainless Steel

Product description

Specification

On request

Part Options / Table

Type (Base)

Version (Stud / Socket)

Version (Stud / Socket): X - External hex, tapped socket type

Version (Stud / Socket): S - Without nut, external hex at the bottom

Version (Stud / Socket): SK - With nut, external hex at the bottom

Version (Stud / Socket): U - Without nut, internal hex at the top, wrench flat at the bottom

Version (Stud / Socket): UK - With nut, internal hex at the top, wrench flat at the bottom

Version (Stud / Socket): X - External hex, tapped socket type

Version (Stud / Socket): S - Without nut, external hex at the bottom

Version (Stud / Socket): SK - With nut, external hex at the bottom

Version (Stud / Socket): U - Without nut, internal hex at the top, wrench flat at the bottom

Version (Stud / Socket): UK - With nut, internal hex at the top, wrench flat at the bottom

Version (Stud / Socket): X - External hex, tapped socket type

Version (Stud / Socket): S - Without nut, external hex at the bottom

Version (Stud / Socket): SK - With nut, external hex at the bottom

Version (Stud / Socket): U - Without nut, internal hex at the top, wrench flat at the bottom

Version (Stud / Socket): UK - With nut, internal hex at the top, wrench flat at the bottom

Inch

Build & Price

Load Capacity for Leveling Feet

Selected Part

CAD Download

CAD data

Login

Email CAD File

Need Help?

This could also be interesting...

GN 31

GN 41

GN 23

GN 21

Your Contact

JW Winco Services
