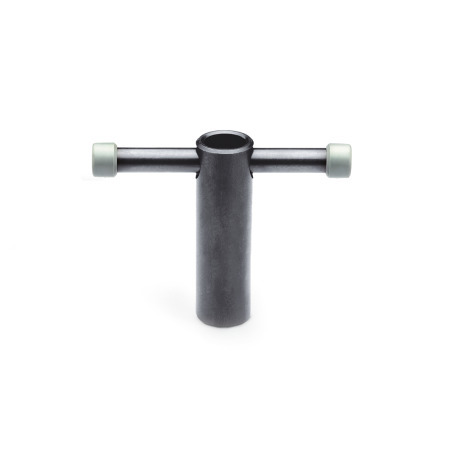

DIN 6307 Tommy Nuts Steel, Tapped Type, with Movable Bar

Tommy Nuts DIN 6307: Steel, Tapped Type, with Movable Bar

Stainless Steel Characteristics

Product description

Tommy nuts DIN 6307 are used for clamping and locking.

The sliding bar is protected against loss by the end caps and held in any position by the pressure spring.

Specification

Tommy nut
Steel

Property class 5.8
Blackened finish

Bar end caps
Plastic, Polyethylen (PE)
Gray

Pressure spring
Stainless steel AISI 301

RoHS

DIN 6307 Steel Tommy Nuts, Tapped Type, with Movable Bar sketch

Hide technical drawing

Part Options / Table

Part Number	d₁	d₂	d₃	l₁	l₂	l₃ min.	l₄	l₅

6307-M6	M 6	0.55	0.24	2.36	1.97	0.59	0.59	1.77
6307-M8	M 8	0.55	0.24	2.36	2.17	0.69	0.59	1.77
6307-M10	M 10	0.71	0.31	3.15	2.36	0.79	0.67	2.48
6307-M12	M 12	0.79	0.39	3.94	2.76	0.98	0.75	3.19
6307-M16	M 16	0.94	0.51	4.72	3.35	1.38	0.91	3.82
6307-M20	M 20	1.18	0.63	5.51	3.74	1.57	1.10	4.41

Show / Hide columns

Metric

Dimensions in: Inch (change to Metric)

d₁	d₂	d₃	l₁	l₂	l₃ min.	l₄	l₅

M 6	0.55	0.24	2.36	1.97	0.59	0.59	1.77
M 8	0.55	0.24	2.36	2.17	0.69	0.59	1.77
M 10	0.71	0.31	3.15	2.36	0.79	0.67	2.48
M 12	0.79	0.39	3.94	2.76	0.98	0.75	3.19
M 16	0.94	0.51	4.72	3.35	1.38	0.91	3.82
M 20	1.18	0.63	5.51	3.74	1.57	1.10	4.41

Build & Price

Selected Part

Part Number

Total (net)

Can$29.99

Delivery time 5-7 days: 10
Contact for delivery time >10

Quantity

Create Project List

Save as Favorites

Please note our quantity discounts (Canadian Dollars).

Min	Max	Price
1	99	Can$29.99
100	249	Can$27.49
250	499	Can$24.99
≥ 500		Can$22.49

Prop 65: Not compliant

WARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov

RoHS: Compliant

This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).

Weight: 0.127 lbs

If weight is not listed, please contact our Sales Department for additional information regarding weight.
