GN 62444.4 Reducers Brass / Plastic, for Cord Grips GN 62444, Metric Thread

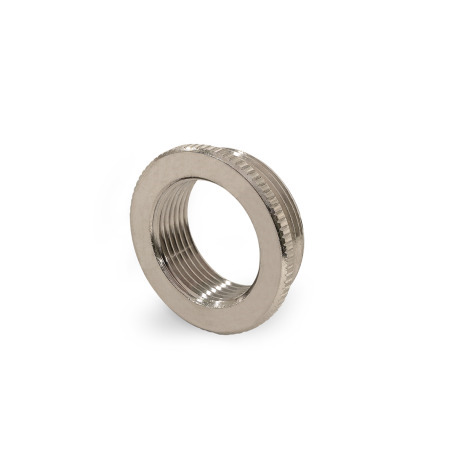

Reducers GN 62444.4: Brass / Plastic, for Cord Grips GN 62444, Metric Thread

Material: MS - Brass

Product description

Reducers GN 62444.4 enable a transition from a larger to a smaller internal thread, allowing the use of smaller cord grips than the housing was designed for. In combination with a mounting nut, fastening in a through hole is also possible.

Specification

BrassMS
Nickel-plated

PlasticKLG, polyamide (PA)

Glass fiber reinforced
Operating temperature
-22 °F to +212 °F (-30 °C to +100 °C)
Gray, RAL 7035

RoHS

GN 62444.4 Brass / Plastic Reducers, for Cord Grips GN 62444, Metric Thread sketch

Hide technical drawing

Part Options / Table

Part Number	Size	d₁	d₂	d₃	h MS	KLG	Length l MS	KLG	A/F

62444.4-M16-M12-MS	M 16-M 12	M 16 x 1.5	M 12 x 1.5	0.79	0.31	-	0.24	-	-
62444.4-M20-M16-MS	M 20-M 16	M 20 x 1.5	M 16 x 1.5	0.94	0.35	-	0.26	-	-
62444.4-M25-M20-MS	M 25-M 20	M 25 x 1.5	M 20 x 1.5	1.18	0.39	-	0.28	-	-
62444.4-M32-M25-MS	M 32-M 25	M 32 x 1.5	M 25 x 1.5	1.46	0.45	-	0.31	-	-
62444.4-M40-M32-MS	M 40-M 32	M 40 x 1.5	M 32 x 1.5	1.69	0.45	-	0.31	-	-
62444.4-M50-M40-MS	M 50-M 40	M 50 x 1.5	M 40 x 1.5	2.20	0.55	-	0.39	-	-
62444.4-M63-M50-MS	M 63-M 50	M 63 x 1.5	M 50 x 1.5	2.60	0.55	-	0.39	-	-

Part Number	Size	d₁	d₂	d₃	h MS	KLG	Length l MS	KLG	A/F

62444.4-M16-M12-KLG	M 16-M 12	M 16 x 1.5	M 12 x 1.5	0.79	-	0.47	-	0.31	0.94
62444.4-M20-M16-KLG	M 20-M 16	M 20 x 1.5	M 16 x 1.5	0.94	-	0.47	-	0.31	0.94
62444.4-M25-M20-KLG	M 25-M 20	M 25 x 1.5	M 20 x 1.5	1.18	-	0.55	-	0.31	1.26
62444.4-M32-M25-KLG	M 32-M 25	M 32 x 1.5	M 25 x 1.5	1.46	-	0.63	-	0.39	1.42
62444.4-M40-M32-KLG	M 40-M 32	M 40 x 1.5	M 32 x 1.5	1.69	-	0.75	-	0.47	1.81
62444.4-M50-M40-KLG	M 50-M 40	M 50 x 1.5	M 40 x 1.5	2.20	-	0.83	-	0.55	2.17
62444.4-M63-M50-KLG	M 63-M 50	M 63 x 1.5	M 50 x 1.5	2.60	-	0.87	-	0.59	2.56

Show / Hide columns

Metric

Size	d₁	d₂	d₃	h MS	KLG	Length l MS	KLG	A/F

M 16-M 12	M 16 x 1.5	M 12 x 1.5	0.79	0.31	0.47	0.24	0.31	0.94
M 20-M 16	M 20 x 1.5	M 16 x 1.5	0.94	0.35	0.47	0.26	0.31	0.94
M 25-M 20	M 25 x 1.5	M 20 x 1.5	1.18	0.39	0.55	0.28	0.31	1.26
M 32-M 25	M 32 x 1.5	M 25 x 1.5	1.46	0.45	0.63	0.31	0.39	1.42
M 40-M 32	M 40 x 1.5	M 32 x 1.5	1.69	0.45	0.75	0.31	0.47	1.81
M 50-M 40	M 50 x 1.5	M 40 x 1.5	2.20	0.55	0.83	0.39	0.55	2.17
M 63-M 50	M 63 x 1.5	M 50 x 1.5	2.60	0.55	0.87	0.39	0.59	2.56

Build & Price

Selected Part

Part Number

Total (net)

Can$2.13

Delivery time 5-7 days: 57 pcs.
Contact for delivery time >57 pcs.

Create Project List

Save as Favorites

Please note our quantity discounts (Canadian Dollars).

Min	Max	Price
1	99	Can$2.13
100	249	Can$1.95
250	499	Can$1.78
≥ 500		Can$1.60

Prop 65: Not compliant

WARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov

RoHS: Compliant

This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).

Weight: 0.006 lbs

If weight is not listed, please contact our Sales Department for additional information regarding weight.
