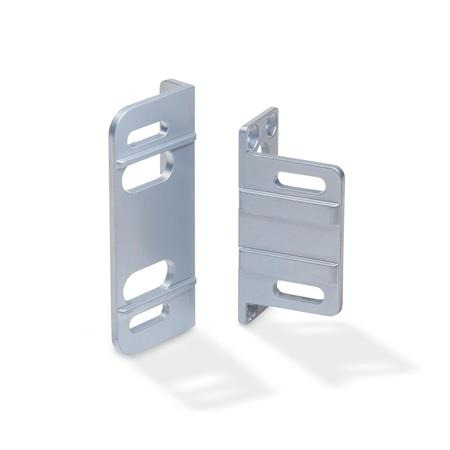

GN 139.4 Angled Mounting Plates Zinc Die-Cast, for GN 139.1 / GN 139.2 Hinges

Angled Mounting Plates GN 139.4: Zinc Die-Cast, for GN 139.1 / GN 139.2 Hinges

Accessories for Profile Systems

Standard elements in this product family are compatible with the most common aluminium profile systems. Using matching assembly sets, the Winco standard elements are easily and cost-effectively connected with the profiles without the time-consuming compiling of individual parts in the order.

compatible with the common profile systems
for groove widths of 6, 8 and 10 mm
for profiles 30, 40 and 45 mm

Show All Compatible Products

Product description

Angled mounting plates GN 139.4 allow hinges GN 139.1 and GN 139.2 to be attached between frame and door, i.e., in the door gap.

The long slotted holes also permit attachment to profile systems.

Countersunk screws to assemble the hinges to the mounting plate are included.

Specification

Zinc die-cast, powder coated
Silver metallic

RoHS

GN 139.4 Zinc Die-Cast Angled Mounting Plates, for GN 139.1 / GN 139.2 Hinges sketch

Hide technical drawing

Part Options / Table

Part Number	Length

139.4-101	3.98

Show / Hide columns

Metric

Dimensions in: Inch (change to Metric)

Length

3.98

Build & Price

Length l

3.98

Selected Part

Part Number

Total (net)

Can$47.59

Available within 1-2 weeks

Quantity

Create Project List

Save as Favorites

Please note our quantity discounts (Canadian Dollars).

Min	Max	Price
1	9	Can$47.59
10	24	Can$43.63
25	49	Can$39.66
≥ 50		Can$35.70

Prop 65: Not compliant

WARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov

RoHS: Compliant

This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).

Weight: 0.531 lbs

If weight is not listed, please contact our Sales Department for additional information regarding weight.
