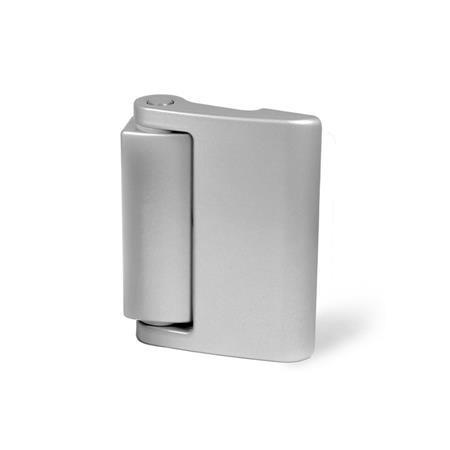

GN 139.2 Hinges without Switch Zinc Die-Cast, to Accompany GN 139.1 Hinges with Integrated Safety Switch

Hinges without Switch GN 139.2: Zinc Die-Cast, to Accompany GN 139.1 Hinges with Integrated Safety Switch
Accessories-for-profile-systems

Accessories for Profile Systems

Standard elements in this product family are compatible with the most common aluminium profile systems. Using matching assembly sets, the Winco standard elements are easily and cost-effectively connected with the profiles without the time-consuming compiling of individual parts in the order.

  • compatible with the common profile systems
  • for groove widths of 6, 8 and 10 mm
  • for profiles 30, 40 and 45 mm
Show All Compatible Products
Operating Instruction GN 139.1 List of Cam Latch / Cam Lock Types Load Rating Information Stainless Steel Characteristics

Product description

Hinges without switch GN 139.2 are identical to hinges with integrated safety switch GN 139.1 , except they do not include the connector plug. The hinges are tamper-proof because of the covered mounting from the backside.

The compact construction combines safety with an attractive design.

The version with broad hinge wings is intended for mounting on glass or polycarbonate doors.

Specification

  • Body
    Zinc die-cast
    Powder coated
    Silver metallic
  • Pin
    Stainless steel AISI 303

RoHS

GN 139.2 Zinc Die-Cast Hinges without Switch, to Accompany GN 139.1 Hinges with Integrated Safety Switch sketch
Hide technical drawing
GN 139.2 Zinc Die-Cast Hinges without Switch, to Accompany GN 139.1 Hinges with Integrated Safety Switch sketch

Part Options / Table
Show / Hide columns

Metric

Dimensions in: Inch (change to Metric)
l1
Small
hinge wing
Broad
hinge wing		l2l3l4l5
Small
hinge wing
Broad
hinge wing		h1h2m1m2m3
Small
hinge wing
Broad
hinge wing
1.933.113.981.183.190.591.180.470.892.800.671.061.97

Build & Price
Width l1
Length l2
Width l1
Length l2

Mechanical Features

Maximal load

Information with safety factor



Load
direction

 Drawing Mechanical features GN 139.1/139.2 Drawing Mechanical features2 GN 139.1/139.2 Drawing Mechanical features3 GN 139.1/139.2

Examples of calculation
→ see operating instruction

l1= 49 mm

337.21 lbf (1500 N)

224.81 lbf (1000 N)

224.81 lbf (1000 N)

l1= 79 mm

168.61 lbf (750 N)

112.40 lbf (500 N)

112.40 lbf (500 N)

Assembly

From the backside, 7 x threads M5, 6 mm deep

Recommended torque

5 Nm (Screws M5)

Selected Part

Total (net)
Can$79.36
In Stock: 13
In Stock
Create Project List
Save as Favorites
Recommend a product
Please note our quantity discounts (Canadian Dollars).
MinMaxPrice
19Can$79.36
1024Can$72.75
2549Can$66.14
≥ 50Can$59.52
Prop 65: Not compliant
WARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov
RoHS: Compliant
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).
Weight: 0.588 lbs
If weight is not listed, please contact our Sales Department for additional information regarding weight.
