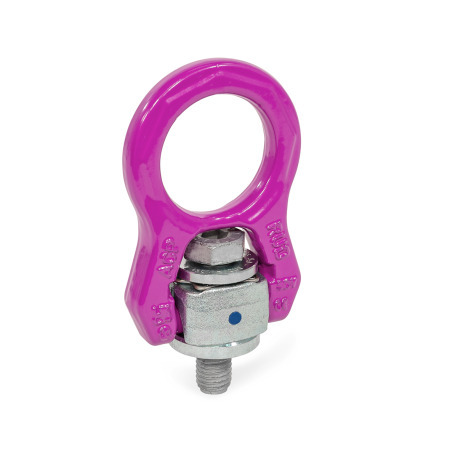

Safety Swivel Load Rings GN 586.2

Product description

Safety swivel load rings GN 586.2 are used with separate lifting gear and lashing equipment. They are screwed onto load-bearing equipment or directly onto the load and can absorb loads in any direction.

The integrated spring mechanism ensures that the load ring rotates in a load-friendly direction during lifting and lashing, preventing unfavorable lateral loads.

The nominal load capacity is indicated on the case. Swivel load rings GN 586.2 comply with the Machinery Directive 2006/42/EC and DGUV rules GS-HM-36.

The integrated RFID transponder clearly marks and identifies the lifting gear, e.g. during the prescribed regular inspection.

Specification

Load ring
Steel, German Material No. 1.6541

Forged, high-tensile tempered
100 % electro magnetic tensile tested to
EN 1677-1
Powder coated, pink

Bearing case
Steel

Forged, high-tensile tempered
100 % electro magnetic tensile tested to
EN 1677-1
Zinc plated

Screw
Steel

High-tensile tempered
Finish: Delta Tone

Spring
Steel

RFID transponder
Frequency 13.56 MHz (HF, IEC 15693)

RoHS

Your Contact

You are looking for a Winco partner near you?

Part Number	d₁	d₂	d₃	h₁	h₂	h₃	h₄	k₁	k₂	Length l	A/F₁	A/F₂	Tightening torque in Nm	Nominal load capacity in t (WLL) (Safety factor 4:1)

586.2-M8	M 8	1.18	1.50	3.70	3.27	1.30	0.46	0.41	2.36	0.45	0.20	0.51	30	0.7
586.2-M10	M 10	1.18	1.50	3.70	3.27	1.35	0.46	0.41	2.36	0.61	0.24	0.67	60	1
586.2-M12	M 12	1.18	1.50	3.70	3.27	1.40	0.46	0.41	2.36	0.73	0.31	0.75	80	1.35
586.2-M16	M 16	1.57	1.97	4.76	4.21	1.81	0.54	0.55	3.07	0.88	0.39	0.94	150	2.5
586.2-M20	M 20	1.77	1.97	5.31	4.65	2.20	0.65	0.67	3.31	1.04	0.47	1.18	300	4
586.2-M24	M 24	2.36	2.60	6.97	6.06	2.76	0.85	0.91	4.41	1.34	0.55	1.42	500	6.3
586.2-M30	M 30	2.95	2.95	8.35	7.20	3.44	1.14	1.06	5.24	1.63	0.67	1.81	800	8

d₁	d₂	d₃	h₁	h₂	h₃	h₄	k₁	k₂	Length l	A/F₁	A/F₂	Tightening torque in Nm	Nominal load capacity in t (WLL) (Safety factor 4:1)

M 8	1.18	1.50	3.70	3.27	1.30	0.46	0.41	2.36	0.45	0.20	0.51	30	0.7
M 10	1.18	1.50	3.70	3.27	1.35	0.46	0.41	2.36	0.61	0.24	0.67	60	1
M 12	1.18	1.50	3.70	3.27	1.40	0.46	0.41	2.36	0.73	0.31	0.75	80	1.35
M 16	1.57	1.97	4.76	4.21	1.81	0.54	0.55	3.07	0.88	0.39	0.94	150	2.5
M 20	1.77	1.97	5.31	4.65	2.20	0.65	0.67	3.31	1.04	0.47	1.18	300	4
M 24	2.36	2.60	6.97	6.06	2.76	0.85	0.91	4.41	1.34	0.55	1.42	500	6.3
M 30	2.95	2.95	8.35	7.20	3.44	1.14	1.06	5.24	1.63	0.67	1.81	800	8
