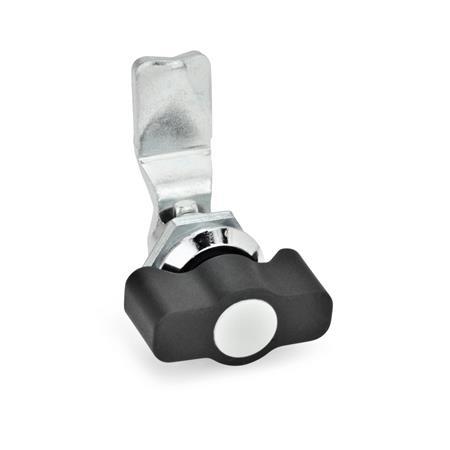

GN 115 Cam Latches Zinc Die-Cast, Chrome Plated Housing Collar, with Operating Elements

Cam latches GN 115 lock by a turning operation limited to 90° which moves the latch arm in the locked position behind the door frame. The bevels of the latch arm ease the closing of the door.

Latch arms are available with different bend angles to cover a latch arm distance A from 4 to 50 mm.

Products comes supplied with a loosely enclosed latch arm.

Specification

• Cam latch housing
  Zinc die-cast

• Housing collar
  Chrome plated finish

• Latch arm / assembly hardware
  Steel, zinc plated, blue passivated finish

• Operation elements
  Plastic
  Technopolymer (Polyamide PA)
  Black, matte finish

• Cover cap (Type RG, KG, HG)
  Plastic
  Technopolymer (Polyamide PA)
  Light gray

• Protection class IP65

RoHS
