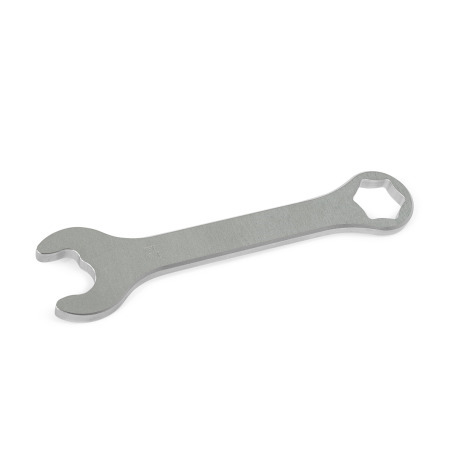

Combination Wrenches GN 3113

Product Family Hygienic Design

Standard Parts of the “Hygienic Design” product family are labeled with the HD icon. They combine high surface quality, freedom from dead spaces, non-scooped outer surfaces, and sealed bolting areas. A sealing concept based on FEM calculations ensures reliable contact pressure after installation.

suitable for use in hygienically sensitive areas
quick and easy cleaning
no dead spaces due to functional seals
certified according to EHEDG guidelines

Show all Hygienic Design products

Product description

Combination wrenches GN 3113 are used to assemble and adjust Hygienic Design standard parts with two or six wrench flats.

In conjunction with the aluminum material used, the rounded geometry of the wrench surfaces transfers the torque to the screw head without causing damage.

The combination wrenches are designed for manual operation with moderate torques.

Specification

AluminumAL
Matte finishM

Tumbled for A/F 7 ... A/F 19
Chamfered for A/F 22 ... A/F 30

RoHS

Part Number	A/F	b₁ ≈	b₂ ≈	d ≈	h	Length l ≈

3113-RM-7-SF-ALM	0.28	0.59	0.24	0.47	0.20	3.94
3113-RM-8-SF-ALM	0.31	0.67	0.28	0.51	0.20	4.13
3113-RM-10-SF-ALM	0.39	0.83	0.35	0.63	0.20	4.92
3113-RM-11-SF-ALM	0.43	0.91	0.37	0.71	0.20	5.31
3113-RM-13-SF-ALM	0.51	1.06	0.43	0.83	0.20	5.91
3113-RM-14-SF-ALM	0.55	1.18	0.47	0.91	0.20	6.10
3113-RM-15-SF-ALM	0.59	1.26	0.63	0.94	0.24	6.30
3113-RM-16-SF-ALM	0.63	1.30	0.55	1.02	0.24	6.50
3113-RM-17-SF-ALM	0.67	1.42	0.59	1.10	0.24	6.69
3113-RM-18-SF-ALM	0.71	1.50	0.59	1.14	0.24	6.89
3113-RM-19-SF-ALM	0.75	1.57	0.67	1.22	0.24	7.09
3113-RM-22-SF-ALM	0.87	1.81	0.75	1.42	0.31	7.28
3113-RM-24-SF-ALM	0.94	1.97	0.83	1.54	0.31	7.87
3113-RM-27-SF-ALM	1.06	2.20	0.91	1.73	0.31	8.66
3113-RM-30-SF-ALM	1.18	2.48	1.02	1.89	0.39	9.45

A/F	b₁ ≈	b₂ ≈	d ≈	h	Length l ≈

0.28	0.59	0.24	0.47	0.20	3.94
0.31	0.67	0.28	0.51	0.20	4.13
0.39	0.83	0.35	0.63	0.20	4.92
0.43	0.91	0.37	0.71	0.20	5.31
0.51	1.06	0.43	0.83	0.20	5.91
0.55	1.18	0.47	0.91	0.20	6.10
0.59	1.26	0.63	0.94	0.24	6.30
0.63	1.30	0.55	1.02	0.24	6.50
0.67	1.42	0.59	1.10	0.24	6.69
0.71	1.50	0.59	1.14	0.24	6.89
0.75	1.57	0.67	1.22	0.24	7.09
0.87	1.81	0.75	1.42	0.31	7.28
0.94	1.97	0.83	1.54	0.31	7.87
1.06	2.20	0.91	1.73	0.31	8.66
1.18	2.48	1.02	1.89	0.39	9.45

A/F

b₁ ≈

b₂ ≈

d ≈

Length l ≈

0.28

0.59

0.24

0.47

0.20

3.94

0.31

0.67

0.28

0.51

0.20

4.13

0.39

0.83

0.35

0.63

0.20

4.92

0.43

0.91

0.37

0.71

0.20

5.31

0.51

1.06

0.43

0.83

0.20

5.91

0.55

1.18

0.47

0.91

0.20

6.10

0.59

1.26

0.63

0.94

0.24

6.30

0.63

1.30

0.55

1.02

0.24

6.50

0.67

1.42

0.59

1.10

0.24

6.69

0.71

1.50

0.59

1.14

0.24

6.89

0.75

1.57

0.67

1.22

0.24

7.09

0.87

1.81

0.75

1.42

0.31

7.28

0.94

1.97

0.83

1.54

0.31

7.87

1.06

2.20

0.91

1.73

0.31

8.66

1.18

2.48

1.02

1.89

0.39

9.45

Your Contact

You are looking for a Winco partner near you?

Min	Max	Price
1	24	Can$54.44
25	49	Can$49.90
50	99	Can$45.37
≥ 100		Can$40.83
