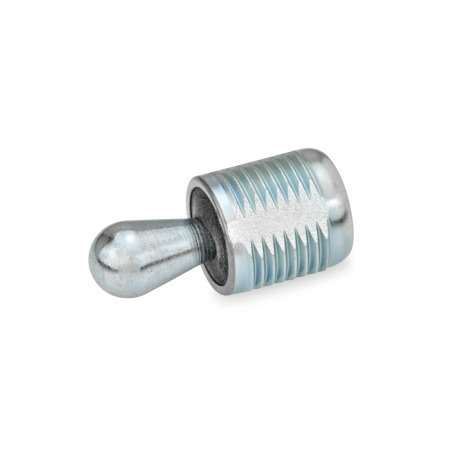

Side Thrust Pins GN 713

Type: SB - Steel thrust pin, with seal

Product description

Spring loaded side thrust pins GN 713 are versatile and practical elements for holding, positioning and clamping of workpieces.

They eliminate costly alternatives, are space saving and easy to install. The protruding height of the thrust pin can be adjusted with the threaded body.

Version with seal used in applications involving a fluid or liquid.

For easy insertion a suitable installation tool GN 713.1 is available (see table).

Specification

Housing
Steel, zinc plated, blue passivated finish

Thrust pin

Steel for Type SA / SB
- Hardened
- Zinc plated, blue passivated finish
Plastic, Polyacetal (POM) for Type KA / KB

Thrust spring

Side thrust force light
Stainless steel AISI 301
Side thrust force medium
Spring steel, blackened finish
Side thrust force heavy
Spring steel, zinc plated, blue passivated finish

Seal
Chloroprene rubber (CR)

RoHS

Accessory

Installation Tools GN 713.1 (Part Number, see Table)

GN 713 Steel Side Thrust Pins, Steel / Plastic Thrust Pin sketch

Hide technical drawing

Part Options / Table

Type

SA	Steel thrust pin, without seal
KA	Plastic thrust pin, without seal
SB	Steel thrust pin, with seal
KB	Plastic thrust pin, with seal

Show / Hide columns

Metric

Dimensions in: Inch (change to Metric)

d₁	Side thrust force F ≈ Type SA / SB			Type KA / KB	l₁ -0.08			d₂	l₂ Type SA / KA	Type SB / KB	l₃ Type SA / KA	Type SB / KB	s	w Type SA / KA	Type SB / KB	Part number installation tool

0.20	4.50 lbf (20 N)	11.24 lbf (50 N)	22.48 lbf (100 N)	4.50 lbf (20 N)	0.45	0.75	1.04	M 12	0.25	0.24	0.15	0.14	0.39	0.06	0.03	GN 713.1-5.6
0.24	8.99 lbf (40 N)	16.86 lbf (75 N)	22.48 lbf (100 N)	8.99 lbf (40 N)	0.45	0.75	1.04	M 12	0.41	0.39	0.29	0.28	0.39	0.08	0.04	GN 713.1-5.6
0.39	22.48 lbf (100 N)	33.72 lbf (150 N)	46.09 lbf (205 N)	22.48 lbf (100 N)	0.71	1.24	1.77	M 18 x 1.5	0.67	0.63	0.47	0.43	0.63	0.13	0.06	GN 713.1-10

Build & Price

Technical and Assembly Instructions


				The position of the mounting hole results from the workpiece length l_m plus the hole offset m, which is calculated as shown below: w = Maximum movement range of the thrust pin t = Workpiece height m = Hole offset
				Case 1: The workpiece height t is greater than the cone height l₃ `m = d~1~/2 - w/2` Case 2: The workpiece height t is smaller than the cone height l₃ `m = d~1~/2 - (l~3~ - t) x 0.123`
If the position of the mounting hole is determined as specified, the full movement of the side thrust pin will be available to cover the tolerance of the workpiece. In case 1, the lateral clamping force is coupled with a downward pull that presses the workpiece against the contact surface.

The use of a mounting tool GN 715.1 or mounting tool GN 713.1 is recommended for installation. Eccentric bushings GN 715.2 are an assembly aid for side thrust pins GN 714 / GN 715. They enable adjustment of the side thrust pins to the most favorable clamping position, e.g. to bridge larger tolerance ranges of a workpiece.

Selected Part

Part Number

Total (net)

Can$22.08

Available within 1-2 weeks

Quantity

Create Project List

Save as Favorites

Please note our quantity discounts (Canadian Dollars).

Min	Max	Price
1	49	Can$22.08
50	99	Can$20.24
100	249	Can$18.40
≥ 250		Can$16.56

Prop 65: Not compliant

WARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov

RoHS: Compliant

This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).

Weight: 0.008 lbs

If weight is not listed, please contact our Sales Department for additional information regarding weight.
Phone: 1-800-397-6993

CAD Download

Other Data Formats

About CAD Downloads

Need Help?

Our service team is available from Monday to Friday between 8:00 AM and 5:30 PM Eastern Time: 800-397-6993

Special Requests | Contact our sales team

JW Winco Services

Request Callback

JW Winco Handbook

Your Contact

GN 713 Side Thrust Pins Steel Housing, Steel / Plastic Thrust Pin

Product description

Specification

Accessory

Part Options / Table

Type

Metric

Build & Price

Technical and Assembly Instructions

Selected Part

CAD Download

CAD data

Login

Email CAD File

Need Help?

This could also be interesting...

GN 715

GN 714

GN 716

GN 614.1

Your Contact

JW Winco Services

Part Number KA - Plastic thrust pin, without seal	Part Number KB - Plastic thrust pin, with seal	Part Number SA - Steel thrust pin, without seal	Part Number SB - Steel thrust pin, with seal	d₁	Side thrust force F ≈ Type SA / SB	Type KA / KB	l₁ -0.08	d₂	l₂ Type SA / KA	Type SB / KB	l₃ Type SA / KA	Type SB / KB	s	w Type SA / KA	Type SB / KB	Part number installation tool


713-5-20-11.5-KA				0.20	-	4.50 lbf (20 N)	0.45 -0.08	M 12	0.25	-	0.15	-	0.39	0.06	-	713.1-5.6
	713-5-20-11.5-KB			0.20	-	4.50 lbf (20 N)	0.45 -0.08	M 12	-	0.24	-	0.14	0.39	-	0.03	713.1-5.6
		713-5-20-11.5-SA		0.20	4.50 lbf (20 N)	-	0.45 -0.08	M 12	0.25	-	0.15	-	0.39	0.06	-	713.1-5.6
			713-5-20-11.5-SB	0.20	4.50 lbf (20 N)	-	0.45 -0.08	M 12	-	0.24	-	0.14	0.39	-	0.03	713.1-5.6
		713-5-50-11.5-SA		0.20	11.24 lbf (50 N)	-	0.45 -0.08	M 12	0.25	-	0.15	-	0.39	0.06	-	713.1-5.6
			713-5-50-11.5-SB	0.20	11.24 lbf (50 N)	-	0.45 -0.08	M 12	-	0.24	-	0.14	0.39	-	0.03	713.1-5.6
		713-5-100-11.5-SA		0.20	22.48 lbf (100 N)	-	0.45 -0.08	M 12	0.25	-	0.15	-	0.39	0.06	-	713.1-5.6
			713-5-100-11.5-SB	0.20	22.48 lbf (100 N)	-	0.45 -0.08	M 12	-	0.24	-	0.14	0.39	-	0.03	713.1-5.6
713-5-20-19-KA				0.20	-	4.50 lbf (20 N)	0.75 -0.08	M 12	0.25	-	0.15	-	0.39	0.06	-	713.1-5.6
	713-5-20-19-KB			0.20	-	4.50 lbf (20 N)	0.75 -0.08	M 12	-	0.24	-	0.14	0.39	-	0.03	713.1-5.6
		713-5-20-19-SA		0.20	4.50 lbf (20 N)	-	0.75 -0.08	M 12	0.25	-	0.15	-	0.39	0.06	-	713.1-5.6
			713-5-20-19-SB	0.20	4.50 lbf (20 N)	-	0.75 -0.08	M 12	-	0.24	-	0.14	0.39	-	0.03	713.1-5.6
		713-5-50-19-SA		0.20	11.24 lbf (50 N)	-	0.75 -0.08	M 12	0.25	-	0.15	-	0.39	0.06	-	713.1-5.6
			713-5-50-19-SB	0.20	11.24 lbf (50 N)	-	0.75 -0.08	M 12	-	0.24	-	0.14	0.39	-	0.03	713.1-5.6
		713-5-100-19-SA		0.20	22.48 lbf (100 N)	-	0.75 -0.08	M 12	0.25	-	0.15	-	0.39	0.06	-	713.1-5.6
			713-5-100-19-SB	0.20	22.48 lbf (100 N)	-	0.75 -0.08	M 12	-	0.24	-	0.14	0.39	-	0.03	713.1-5.6
713-5-20-26.5-KA				0.20	-	4.50 lbf (20 N)	1.04 -0.08	M 12	0.25	-	0.15	-	0.39	0.06	-	713.1-5.6
	713-5-20-26.5-KB			0.20	-	4.50 lbf (20 N)	1.04 -0.08	M 12	-	0.24	-	0.14	0.39	-	0.03	713.1-5.6
		713-5-20-26.5-SA		0.20	4.50 lbf (20 N)	-	1.04 -0.08	M 12	0.25	-	0.15	-	0.39	0.06	-	713.1-5.6
			713-5-20-26.5-SB	0.20	4.50 lbf (20 N)	-	1.04 -0.08	M 12	-	0.24	-	0.14	0.39	-	0.03	713.1-5.6
		713-5-50-26.5-SA		0.20	11.24 lbf (50 N)	-	1.04 -0.08	M 12	0.25	-	0.15	-	0.39	0.06	-	713.1-5.6
			713-5-50-26.5-SB	0.20	11.24 lbf (50 N)	-	1.04 -0.08	M 12	-	0.24	-	0.14	0.39	-	0.03	713.1-5.6
		713-5-100-26.5-SA		0.20	22.48 lbf (100 N)	-	1.04 -0.08	M 12	0.25	-	0.15	-	0.39	0.06	-	713.1-5.6
			713-5-100-26.5-SB	0.20	22.48 lbf (100 N)	-	1.04 -0.08	M 12	-	0.24	-	0.14	0.39	-	0.03	713.1-5.6
713-6-40-11.5-KA				0.24	-	8.99 lbf (40 N)	0.45 -0.08	M 12	0.41	-	0.29	-	0.39	0.08	-	713.1-5.6
	713-6-40-11.5-KB			0.24	-	8.99 lbf (40 N)	0.45 -0.08	M 12	-	0.39	-	0.28	0.39	-	0.04	713.1-5.6
		713-6-40-11.5-SA		0.24	8.99 lbf (40 N)	-	0.45 -0.08	M 12	0.41	-	0.29	-	0.39	0.08	-	713.1-5.6
			713-6-40-11.5-SB	0.24	8.99 lbf (40 N)	-	0.45 -0.08	M 12	-	0.39	-	0.28	0.39	-	0.04	713.1-5.6
		713-6-75-11.5-SA		0.24	16.86 lbf (75 N)	-	0.45 -0.08	M 12	0.41	-	0.29	-	0.39	0.08	-	713.1-5.6
			713-6-75-11.5-SB	0.24	16.86 lbf (75 N)	-	0.45 -0.08	M 12	-	0.39	-	0.28	0.39	-	0.04	713.1-5.6
		713-6-100-11.5-SA		0.24	22.48 lbf (100 N)	-	0.45 -0.08	M 12	0.41	-	0.29	-	0.39	0.08	-	713.1-5.6
			713-6-100-11.5-SB	0.24	22.48 lbf (100 N)	-	0.45 -0.08	M 12	-	0.39	-	0.28	0.39	-	0.04	713.1-5.6
713-6-40-19-KA				0.24	-	8.99 lbf (40 N)	0.75 -0.08	M 12	0.41	-	0.29	-	0.39	0.08	-	713.1-5.6
	713-6-40-19-KB			0.24	-	8.99 lbf (40 N)	0.75 -0.08	M 12	-	0.39	-	0.28	0.39	-	0.04	713.1-5.6
		713-6-40-19-SA		0.24	8.99 lbf (40 N)	-	0.75 -0.08	M 12	0.41	-	0.29	-	0.39	0.08	-	713.1-5.6
			713-6-40-19-SB	0.24	8.99 lbf (40 N)	-	0.75 -0.08	M 12	-	0.39	-	0.28	0.39	-	0.04	713.1-5.6
		713-6-75-19-SA		0.24	16.86 lbf (75 N)	-	0.75 -0.08	M 12	0.41	-	0.29	-	0.39	0.08	-	713.1-5.6
			713-6-75-19-SB	0.24	16.86 lbf (75 N)	-	0.75 -0.08	M 12	-	0.39	-	0.28	0.39	-	0.04	713.1-5.6
		713-6-100-19-SA		0.24	22.48 lbf (100 N)	-	0.75 -0.08	M 12	0.41	-	0.29	-	0.39	0.08	-	713.1-5.6
			713-6-100-19-SB	0.24	22.48 lbf (100 N)	-	0.75 -0.08	M 12	-	0.39	-	0.28	0.39	-	0.04	713.1-5.6
713-6-40-26.5-KA				0.24	-	8.99 lbf (40 N)	1.04 -0.08	M 12	0.41	-	0.29	-	0.39	0.08	-	713.1-5.6
	713-6-40-26.5-KB			0.24	-	8.99 lbf (40 N)	1.04 -0.08	M 12	-	0.39	-	0.28	0.39	-	0.04	713.1-5.6
		713-6-40-26.5-SA		0.24	8.99 lbf (40 N)	-	1.04 -0.08	M 12	0.41	-	0.29	-	0.39	0.08	-	713.1-5.6
			713-6-40-26.5-SB	0.24	8.99 lbf (40 N)	-	1.04 -0.08	M 12	-	0.39	-	0.28	0.39	-	0.04	713.1-5.6
		713-6-75-26.5-SA		0.24	16.86 lbf (75 N)	-	1.04 -0.08	M 12	0.41	-	0.29	-	0.39	0.08	-	713.1-5.6
			713-6-75-26.5-SB	0.24	16.86 lbf (75 N)	-	1.04 -0.08	M 12	-	0.39	-	0.28	0.39	-	0.04	713.1-5.6
		713-6-100-26.5-SA		0.24	22.48 lbf (100 N)	-	1.04 -0.08	M 12	0.41	-	0.29	-	0.39	0.08	-	713.1-5.6
			713-6-100-26.5-SB	0.24	22.48 lbf (100 N)	-	1.04 -0.08	M 12	-	0.39	-	0.28	0.39	-	0.04	713.1-5.6
713-10-100-18-KA				0.39	-	22.48 lbf (100 N)	0.71 -0.08	M 18 x 1.5	0.67	-	0.47	-	0.63	0.13	-	713.1-10
	713-10-100-18-KB			0.39	-	22.48 lbf (100 N)	0.71 -0.08	M 18 x 1.5	-	0.63	-	0.43	0.63	-	0.06	713.1-10
		713-10-100-18-SA		0.39	22.48 lbf (100 N)	-	0.71 -0.08	M 18 x 1.5	0.67	-	0.47	-	0.63	0.13	-	713.1-10
			713-10-100-18-SB	0.39	22.48 lbf (100 N)	-	0.71 -0.08	M 18 x 1.5	-	0.63	-	0.43	0.63	-	0.06	713.1-10
		713-10-150-18-SA		0.39	33.72 lbf (150 N)	-	0.71 -0.08	M 18 x 1.5	0.67	-	0.47	-	0.63	0.13	-	713.1-10
			713-10-150-18-SB	0.39	33.72 lbf (150 N)	-	0.71 -0.08	M 18 x 1.5	-	0.63	-	0.43	0.63	-	0.06	713.1-10
		713-10-205-18-SA		0.39	46.09 lbf (205 N)	-	0.71 -0.08	M 18 x 1.5	0.67	-	0.47	-	0.63	0.13	-	713.1-10
			713-10-205-18-SB	0.39	46.09 lbf (205 N)	-	0.71 -0.08	M 18 x 1.5	-	0.63	-	0.43	0.63	-	0.06	713.1-10
713-10-100-31.5-KA				0.39	-	22.48 lbf (100 N)	1.24 -0.08	M 18 x 1.5	0.67	-	0.47	-	0.63	0.13	-	713.1-10
	713-10-100-31.5-KB			0.39	-	22.48 lbf (100 N)	1.24 -0.08	M 18 x 1.5	-	0.63	-	0.43	0.63	-	0.06	713.1-10
		713-10-100-31.5-SA		0.39	22.48 lbf (100 N)	-	1.24 -0.08	M 18 x 1.5	0.67	-	0.47	-	0.63	0.13	-	713.1-10
			713-10-100-31.5-SB	0.39	22.48 lbf (100 N)	-	1.24 -0.08	M 18 x 1.5	-	0.63	-	0.43	0.63	-	0.06	713.1-10
		713-10-150-31.5-SA		0.39	33.72 lbf (150 N)	-	1.24 -0.08	M 18 x 1.5	0.67	-	0.47	-	0.63	0.13	-	713.1-10
			713-10-150-31.5-SB	0.39	33.72 lbf (150 N)	-	1.24 -0.08	M 18 x 1.5	-	0.63	-	0.43	0.63	-	0.06	713.1-10
		713-10-205-31.5-SA		0.39	46.09 lbf (205 N)	-	1.24 -0.08	M 18 x 1.5	0.67	-	0.47	-	0.63	0.13	-	713.1-10
			713-10-205-31.5-SB	0.39	46.09 lbf (205 N)	-	1.24 -0.08	M 18 x 1.5	-	0.63	-	0.43	0.63	-	0.06	713.1-10
713-10-100-45-KA				0.39	-	22.48 lbf (100 N)	1.77 -0.08	M 18 x 1.5	0.67	-	0.47	-	0.63	0.13	-	713.1-10
	713-10-100-45-KB			0.39	-	22.48 lbf (100 N)	1.77 -0.08	M 18 x 1.5	-	0.63	-	0.43	0.63	-	0.06	713.1-10
		713-10-100-45-SA		0.39	22.48 lbf (100 N)	-	1.77 -0.08	M 18 x 1.5	0.67	-	0.47	-	0.63	0.13	-	713.1-10
			713-10-100-45-SB	0.39	22.48 lbf (100 N)	-	1.77 -0.08	M 18 x 1.5	-	0.63	-	0.43	0.63	-	0.06	713.1-10
		713-10-150-45-SA		0.39	33.72 lbf (150 N)	-	1.77 -0.08	M 18 x 1.5	0.67	-	0.47	-	0.63	0.13	-	713.1-10
			713-10-150-45-SB	0.39	33.72 lbf (150 N)	-	1.77 -0.08	M 18 x 1.5	-	0.63	-	0.43	0.63	-	0.06	713.1-10
		713-10-205-45-SA		0.39	46.09 lbf (205 N)	-	1.77 -0.08	M 18 x 1.5	0.67	-	0.47	-	0.63	0.13	-	713.1-10
			713-10-205-45-SB	0.39	46.09 lbf (205 N)	-	1.77 -0.08	M 18 x 1.5	-	0.63	-	0.43	0.63	-	0.06	713.1-10
