Push button color: O - Orange, RAL 2004
Product description

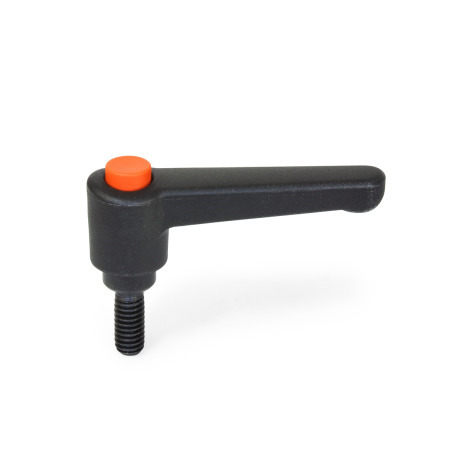

Made in the USA, adjustable levers WN 304 with push button have a straight lever parallel to the clamping surface. For some applications this presents an advantage due to limits of space or for visual reasons.
These levers have proven to be ideal wherever parts have to be clamped in a confined space or in a particular lever position. The insert is connected to the lever via serrations that can easily be disengaged.
Pulling the lever upwards disengages the serrations, allowing it to be swiveled to the ideal clamping position. When releasing the lever, the serrations automatically re-engage.
The push button is a design element and allows for effortless release action. However, this design is limited to applications that do not require the lever to be disassembled.
Specification
- Lever body
PlasticKT, nylon thermoplastic- Glass fiber reinforced
- With molded-in stainless steel inlay
- Temperature resistant up to 230 °F (110 °C)
- Color
Black, RAL 9005, textured finishSW
Orange, RAL 2004, textured finishOS
- Push button
Nylon plastic
Black, RAL 9005S
Orange, RAL 2004O
Gray, RAL 7035G
- Threaded stud
Steel, blackened finish
RoHS
On request
Special colors, stud lengths, and threads
