Five-Lobed Knobs EN 5331

ELESA original design
code: VCRT-N / VCRT-FP

Type: B - With cover cap
Color of the cover cap: DOR - Orange, RAL 2004, matte finish

Plastic Characteristics ISO Fundamental Tolerances

Product description

These EN 5331 knobs are characterized by their 5 lobes and recessed grips. They not only give them an attractive design, but their shape also allows a high torque to be achieved.

Specification

Five-lobed knob
Plastic
Technopolymer (Polyamide PA)
- Glass fiber reinforced
- Temperature resistant up to 266 °F (130 °C)
- Black, matte finish

Color of the color cap
Orange, RAL 2004, matte finishDOR
Gray, RAL 7035, matte finishDGR
Yellow, RAL 1021, matte finishDGB
Blue, RAL 5024, matte finishDBL
Red, RAL 3000, matte finishDRT
Green, RAL 6017, matte finishDGN

Tapped / square insert
Brass

RoHS

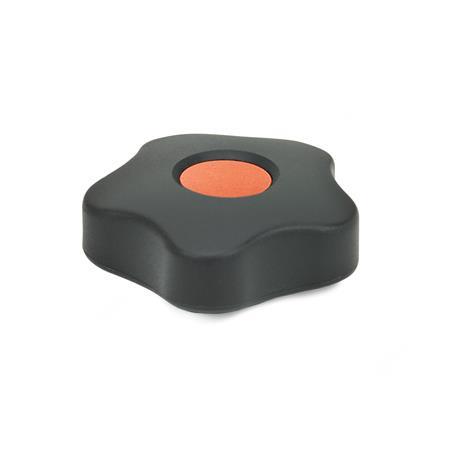

EN 5331 Technopolymer Plastic Five-Lobed Knobs, with Brass Square or Tapped Insert, Low Type, with Colored Cover Caps sketch

Hide technical drawing

Part Options / Table

Type

B	With cover cap

Color of the cover cap: DGR

Show / Hide columns

Dimensions in: Inch (change to Metric)

Part Number	d₁	d₂ Thread	s +0.001 Square	d₃	d₄ -0.02	h₁	h₂	l₁	l₂	l₃ +0.02

5331-32-M5-B-DGR	1.26	M 5	-	0.67	0.43 -0.02	0.67	0.04	0.31	0.53	0.26 +0.02
5331-32-M6-B-DGR	1.26	M 6	-	0.67	0.43 -0.02	0.67	0.04	0.31	0.53	0.26 +0.02
5331-32-V5-B-DGR	1.26	-	V 5 +0.001	0.67	0.43 -0.02	0.67	0.04	0.31	0.53	0.26 +0.02
5331-32-V6-B-DGR	1.26	-	V 6 +0.001	0.67	0.43 -0.02	0.67	0.04	0.31	0.53	0.26 +0.02
5331-40-V6-B-DGR	1.57	-	V 6 +0.001	0.67	0.51 -0.02	0.67	0.04	0.39	0.57	0.37 +0.02
5331-40-M6-B-DGR	1.57	M 6	-	0.67	0.51 -0.02	0.67	0.04	0.39	0.57	0.37 +0.02
5331-40-M8-B-DGR	1.57	M 8	-	0.67	0.51 -0.02	0.67	0.04	0.39	0.57	0.37 +0.02
5331-50-V6-B-DGR	1.97	-	V 6 +0.001	0.75	0.63 -0.02	0.79	0.05	0.39	0.69	0.37 +0.02
5331-50-V7-B-DGR	1.97	-	V 7 +0.001	0.75	0.63 -0.02	0.79	0.05	0.39	0.69	0.37 +0.02
5331-50-M8-B-DGR	1.97	M 8	-	0.75	0.63 -0.02	0.79	0.05	0.39	0.69	0.37 +0.02
5331-50-M10-B-DGR	1.97	M 10	-	0.75	0.63 -0.02	0.79	0.05	0.39	0.69	0.37 +0.02
5331-63-V6-B-DGR	2.48	-	V 6 +0.001	0.89	0.79 -0.02	0.85	0.05	0.39	0.75	0.37 +0.02
5331-63-V7-B-DGR	2.48	-	V 7 +0.001	0.89	0.79 -0.02	0.85	0.05	0.39	0.75	0.37 +0.02
5331-63-V8-B-DGR	2.48	-	V 8 +0.001	0.89	0.79 -0.02	0.85	0.05	0.39	0.75	0.37 +0.02
5331-63-M10-B-DGR	2.48	M 10	-	0.89	0.79 -0.02	0.85	0.05	0.39	0.75	0.37 +0.02
5331-63-M12-B-DGR	2.48	M 12	-	0.89	0.79 -0.02	0.85	0.05	0.39	0.75	0.37 +0.02
5331-74-V7-B-DGR	2.91	-	V 7 +0.001	1.04	0.79 -0.02	0.96	0.08	0.59	0.83	0.53 +0.02
5331-74-V8-B-DGR	2.91	-	V 8 +0.001	1.04	0.79 -0.02	0.96	0.08	0.59	0.83	0.53 +0.02
5331-74-V9-B-DGR	2.91	-	V 9 +0.001	1.04	0.79 -0.02	0.96	0.08	0.59	0.83	0.53 +0.02
5331-74-V10-B-DGR	2.91	-	V 10 +0.001	1.04	0.79 -0.02	0.96	0.08	0.59	0.83	0.53 +0.02
5331-74-M10-B-DGR	2.91	M 10	-	1.04	0.79 -0.02	0.96	0.08	0.59	0.83	0.53 +0.02
5331-74-M12-B-DGR	2.91	M 12	-	1.04	0.79 -0.02	0.96	0.08	0.59	0.83	0.53 +0.02
5331-95-M16-B-DGR	3.74	M 16	-	1.26	0.71 -0.02	1.16	0.18	0.59	1.04	0.53 +0.02
5331-95-V8-B-DGR	3.74	-	V 8 +0.001	1.26	0.71 -0.02	1.16	0.18	0.59	1.04	0.53 +0.02
5331-95-V10-B-DGR	3.74	-	V 10 +0.001	1.26	0.71 -0.02	1.16	0.18	0.59	1.04	0.53 +0.02

Color of the cover cap: DGB

Show / Hide columns

Dimensions in: Inch (change to Metric)

Part Number	d₁	d₂ Thread	s +0.001 Square	d₃	d₄ -0.02	h₁	h₂	l₁	l₂	l₃ +0.02

5331-32-M5-B-DGB	1.26	M 5	-	0.67	0.43 -0.02	0.67	0.04	0.31	0.53	0.26 +0.02
5331-32-M6-B-DGB	1.26	M 6	-	0.67	0.43 -0.02	0.67	0.04	0.31	0.53	0.26 +0.02
5331-32-V5-B-DGB	1.26	-	V 5 +0.001	0.67	0.43 -0.02	0.67	0.04	0.31	0.53	0.26 +0.02
5331-32-V6-B-DGB	1.26	-	V 6 +0.001	0.67	0.43 -0.02	0.67	0.04	0.31	0.53	0.26 +0.02
5331-40-V6-B-DGB	1.57	-	V 6 +0.001	0.67	0.51 -0.02	0.67	0.04	0.39	0.57	0.37 +0.02
5331-40-M6-B-DGB	1.57	M 6	-	0.67	0.51 -0.02	0.67	0.04	0.39	0.57	0.37 +0.02
5331-40-M8-B-DGB	1.57	M 8	-	0.67	0.51 -0.02	0.67	0.04	0.39	0.57	0.37 +0.02
5331-50-V6-B-DGB	1.97	-	V 6 +0.001	0.75	0.63 -0.02	0.79	0.05	0.39	0.69	0.37 +0.02
5331-50-V7-B-DGB	1.97	-	V 7 +0.001	0.75	0.63 -0.02	0.79	0.05	0.39	0.69	0.37 +0.02
5331-50-M8-B-DGB	1.97	M 8	-	0.75	0.63 -0.02	0.79	0.05	0.39	0.69	0.37 +0.02
5331-50-M10-B-DGB	1.97	M 10	-	0.75	0.63 -0.02	0.79	0.05	0.39	0.69	0.37 +0.02
5331-63-V6-B-DGB	2.48	-	V 6 +0.001	0.89	0.79 -0.02	0.85	0.05	0.39	0.75	0.37 +0.02
5331-63-V7-B-DGB	2.48	-	V 7 +0.001	0.89	0.79 -0.02	0.85	0.05	0.39	0.75	0.37 +0.02
5331-63-V8-B-DGB	2.48	-	V 8 +0.001	0.89	0.79 -0.02	0.85	0.05	0.39	0.75	0.37 +0.02
5331-63-M10-B-DGB	2.48	M 10	-	0.89	0.79 -0.02	0.85	0.05	0.39	0.75	0.37 +0.02
5331-63-M12-B-DGB	2.48	M 12	-	0.89	0.79 -0.02	0.85	0.05	0.39	0.75	0.37 +0.02
5331-74-V7-B-DGB	2.91	-	V 7 +0.001	1.04	0.79 -0.02	0.96	0.08	0.59	0.83	0.53 +0.02
5331-74-V8-B-DGB	2.91	-	V 8 +0.001	1.04	0.79 -0.02	0.96	0.08	0.59	0.83	0.53 +0.02
5331-74-V9-B-DGB	2.91	-	V 9 +0.001	1.04	0.79 -0.02	0.96	0.08	0.59	0.83	0.53 +0.02
5331-74-V10-B-DGB	2.91	-	V 10 +0.001	1.04	0.79 -0.02	0.96	0.08	0.59	0.83	0.53 +0.02
5331-74-M10-B-DGB	2.91	M 10	-	1.04	0.79 -0.02	0.96	0.08	0.59	0.83	0.53 +0.02
5331-74-M12-B-DGB	2.91	M 12	-	1.04	0.79 -0.02	0.96	0.08	0.59	0.83	0.53 +0.02
5331-95-M16-B-DGB	3.74	M 16	-	1.26	0.71 -0.02	1.16	0.18	0.59	1.04	0.53 +0.02
5331-95-V8-B-DGB	3.74	-	V 8 +0.001	1.26	0.71 -0.02	1.16	0.18	0.59	1.04	0.53 +0.02
5331-95-V10-B-DGB	3.74	-	V 10 +0.001	1.26	0.71 -0.02	1.16	0.18	0.59	1.04	0.53 +0.02

Color of the cover cap: DBL

Show / Hide columns

Dimensions in: Inch (change to Metric)

Part Number	d₁	d₂ Thread	s +0.001 Square	d₃	d₄ -0.02	h₁	h₂	l₁	l₂	l₃ +0.02

5331-32-M5-B-DBL	1.26	M 5	-	0.67	0.43 -0.02	0.67	0.04	0.31	0.53	0.26 +0.02
5331-32-M6-B-DBL	1.26	M 6	-	0.67	0.43 -0.02	0.67	0.04	0.31	0.53	0.26 +0.02
5331-32-V5-B-DBL	1.26	-	V 5 +0.001	0.67	0.43 -0.02	0.67	0.04	0.31	0.53	0.26 +0.02
5331-32-V6-B-DBL	1.26	-	V 6 +0.001	0.67	0.43 -0.02	0.67	0.04	0.31	0.53	0.26 +0.02
5331-40-V6-B-DBL	1.57	-	V 6 +0.001	0.67	0.51 -0.02	0.67	0.04	0.39	0.57	0.37 +0.02
5331-40-M6-B-DBL	1.57	M 6	-	0.67	0.51 -0.02	0.67	0.04	0.39	0.57	0.37 +0.02
5331-40-M8-B-DBL	1.57	M 8	-	0.67	0.51 -0.02	0.67	0.04	0.39	0.57	0.37 +0.02
5331-50-V6-B-DBL	1.97	-	V 6 +0.001	0.75	0.63 -0.02	0.79	0.05	0.39	0.69	0.37 +0.02
5331-50-V7-B-DBL	1.97	-	V 7 +0.001	0.75	0.63 -0.02	0.79	0.05	0.39	0.69	0.37 +0.02
5331-50-M8-B-DBL	1.97	M 8	-	0.75	0.63 -0.02	0.79	0.05	0.39	0.69	0.37 +0.02
5331-50-M10-B-DBL	1.97	M 10	-	0.75	0.63 -0.02	0.79	0.05	0.39	0.69	0.37 +0.02
5331-63-V6-B-DBL	2.48	-	V 6 +0.001	0.89	0.79 -0.02	0.85	0.05	0.39	0.75	0.37 +0.02
5331-63-V7-B-DBL	2.48	-	V 7 +0.001	0.89	0.79 -0.02	0.85	0.05	0.39	0.75	0.37 +0.02
5331-63-V8-B-DBL	2.48	-	V 8 +0.001	0.89	0.79 -0.02	0.85	0.05	0.39	0.75	0.37 +0.02
5331-63-M10-B-DBL	2.48	M 10	-	0.89	0.79 -0.02	0.85	0.05	0.39	0.75	0.37 +0.02
5331-63-M12-B-DBL	2.48	M 12	-	0.89	0.79 -0.02	0.85	0.05	0.39	0.75	0.37 +0.02
5331-74-V7-B-DBL	2.91	-	V 7 +0.001	1.04	0.79 -0.02	0.96	0.08	0.59	0.83	0.53 +0.02
5331-74-V8-B-DBL	2.91	-	V 8 +0.001	1.04	0.79 -0.02	0.96	0.08	0.59	0.83	0.53 +0.02
5331-74-V9-B-DBL	2.91	-	V 9 +0.001	1.04	0.79 -0.02	0.96	0.08	0.59	0.83	0.53 +0.02
5331-74-V10-B-DBL	2.91	-	V 10 +0.001	1.04	0.79 -0.02	0.96	0.08	0.59	0.83	0.53 +0.02
5331-74-M10-B-DBL	2.91	M 10	-	1.04	0.79 -0.02	0.96	0.08	0.59	0.83	0.53 +0.02
5331-74-M12-B-DBL	2.91	M 12	-	1.04	0.79 -0.02	0.96	0.08	0.59	0.83	0.53 +0.02
5331-95-M16-B-DBL	3.74	M 16	-	1.26	0.71 -0.02	1.16	0.18	0.59	1.04	0.53 +0.02
5331-95-V8-B-DBL	3.74	-	V 8 +0.001	1.26	0.71 -0.02	1.16	0.18	0.59	1.04	0.53 +0.02
5331-95-V10-B-DBL	3.74	-	V 10 +0.001	1.26	0.71 -0.02	1.16	0.18	0.59	1.04	0.53 +0.02

Color of the cover cap: DRT

Show / Hide columns

Dimensions in: Inch (change to Metric)

Part Number	d₁	d₂ Thread	s +0.001 Square	d₃	d₄ -0.02	h₁	h₂	l₁	l₂	l₃ +0.02

5331-32-M5-B-DRT	1.26	M 5	-	0.67	0.43 -0.02	0.67	0.04	0.31	0.53	0.26 +0.02
5331-32-M6-B-DRT	1.26	M 6	-	0.67	0.43 -0.02	0.67	0.04	0.31	0.53	0.26 +0.02
5331-32-V5-B-DRT	1.26	-	V 5 +0.001	0.67	0.43 -0.02	0.67	0.04	0.31	0.53	0.26 +0.02
5331-32-V6-B-DRT	1.26	-	V 6 +0.001	0.67	0.43 -0.02	0.67	0.04	0.31	0.53	0.26 +0.02
5331-40-V6-B-DRT	1.57	-	V 6 +0.001	0.67	0.51 -0.02	0.67	0.04	0.39	0.57	0.37 +0.02
5331-40-M6-B-DRT	1.57	M 6	-	0.67	0.51 -0.02	0.67	0.04	0.39	0.57	0.37 +0.02
5331-40-M8-B-DRT	1.57	M 8	-	0.67	0.51 -0.02	0.67	0.04	0.39	0.57	0.37 +0.02
5331-50-V6-B-DRT	1.97	-	V 6 +0.001	0.75	0.63 -0.02	0.79	0.05	0.39	0.69	0.37 +0.02
5331-50-V7-B-DRT	1.97	-	V 7 +0.001	0.75	0.63 -0.02	0.79	0.05	0.39	0.69	0.37 +0.02
5331-50-M8-B-DRT	1.97	M 8	-	0.75	0.63 -0.02	0.79	0.05	0.39	0.69	0.37 +0.02
5331-50-M10-B-DRT	1.97	M 10	-	0.75	0.63 -0.02	0.79	0.05	0.39	0.69	0.37 +0.02
5331-63-V6-B-DRT	2.48	-	V 6 +0.001	0.89	0.79 -0.02	0.85	0.05	0.39	0.75	0.37 +0.02
5331-63-V7-B-DRT	2.48	-	V 7 +0.001	0.89	0.79 -0.02	0.85	0.05	0.39	0.75	0.37 +0.02
5331-63-V8-B-DRT	2.48	-	V 8 +0.001	0.89	0.79 -0.02	0.85	0.05	0.39	0.75	0.37 +0.02
5331-63-M10-B-DRT	2.48	M 10	-	0.89	0.79 -0.02	0.85	0.05	0.39	0.75	0.37 +0.02
5331-63-M12-B-DRT	2.48	M 12	-	0.89	0.79 -0.02	0.85	0.05	0.39	0.75	0.37 +0.02
5331-74-V7-B-DRT	2.91	-	V 7 +0.001	1.04	0.79 -0.02	0.96	0.08	0.59	0.83	0.53 +0.02
5331-74-V8-B-DRT	2.91	-	V 8 +0.001	1.04	0.79 -0.02	0.96	0.08	0.59	0.83	0.53 +0.02
5331-74-V9-B-DRT	2.91	-	V 9 +0.001	1.04	0.79 -0.02	0.96	0.08	0.59	0.83	0.53 +0.02
5331-74-V10-B-DRT	2.91	-	V 10 +0.001	1.04	0.79 -0.02	0.96	0.08	0.59	0.83	0.53 +0.02
5331-74-M10-B-DRT	2.91	M 10	-	1.04	0.79 -0.02	0.96	0.08	0.59	0.83	0.53 +0.02
5331-74-M12-B-DRT	2.91	M 12	-	1.04	0.79 -0.02	0.96	0.08	0.59	0.83	0.53 +0.02
5331-95-M16-B-DRT	3.74	M 16	-	1.26	0.71 -0.02	1.16	0.18	0.59	1.04	0.53 +0.02
5331-95-V8-B-DRT	3.74	-	V 8 +0.001	1.26	0.71 -0.02	1.16	0.18	0.59	1.04	0.53 +0.02
5331-95-V10-B-DRT	3.74	-	V 10 +0.001	1.26	0.71 -0.02	1.16	0.18	0.59	1.04	0.53 +0.02

Color of the cover cap: DGN

Show / Hide columns

Dimensions in: Inch (change to Metric)

Part Number	d₁	d₂ Thread	s +0.001 Square	d₃	d₄ -0.02	h₁	h₂	l₁	l₂	l₃ +0.02

5331-32-M5-B-DGN	1.26	M 5	-	0.67	0.43 -0.02	0.67	0.04	0.31	0.53	0.26 +0.02
5331-32-M6-B-DGN	1.26	M 6	-	0.67	0.43 -0.02	0.67	0.04	0.31	0.53	0.26 +0.02
5331-32-V5-B-DGN	1.26	-	V 5 +0.001	0.67	0.43 -0.02	0.67	0.04	0.31	0.53	0.26 +0.02
5331-32-V6-B-DGN	1.26	-	V 6 +0.001	0.67	0.43 -0.02	0.67	0.04	0.31	0.53	0.26 +0.02
5331-40-V6-B-DGN	1.57	-	V 6 +0.001	0.67	0.51 -0.02	0.67	0.04	0.39	0.57	0.37 +0.02
5331-40-M6-B-DGN	1.57	M 6	-	0.67	0.51 -0.02	0.67	0.04	0.39	0.57	0.37 +0.02
5331-40-M8-B-DGN	1.57	M 8	-	0.67	0.51 -0.02	0.67	0.04	0.39	0.57	0.37 +0.02
5331-50-V6-B-DGN	1.97	-	V 6 +0.001	0.75	0.63 -0.02	0.79	0.05	0.39	0.69	0.37 +0.02
5331-50-V7-B-DGN	1.97	-	V 7 +0.001	0.75	0.63 -0.02	0.79	0.05	0.39	0.69	0.37 +0.02
5331-50-M8-B-DGN	1.97	M 8	-	0.75	0.63 -0.02	0.79	0.05	0.39	0.69	0.37 +0.02
5331-50-M10-B-DGN	1.97	M 10	-	0.75	0.63 -0.02	0.79	0.05	0.39	0.69	0.37 +0.02
5331-63-V6-B-DGN	2.48	-	V 6 +0.001	0.89	0.79 -0.02	0.85	0.05	0.39	0.75	0.37 +0.02
5331-63-V7-B-DGN	2.48	-	V 7 +0.001	0.89	0.79 -0.02	0.85	0.05	0.39	0.75	0.37 +0.02
5331-63-V8-B-DGN	2.48	-	V 8 +0.001	0.89	0.79 -0.02	0.85	0.05	0.39	0.75	0.37 +0.02
5331-63-M10-B-DGN	2.48	M 10	-	0.89	0.79 -0.02	0.85	0.05	0.39	0.75	0.37 +0.02
5331-63-M12-B-DGN	2.48	M 12	-	0.89	0.79 -0.02	0.85	0.05	0.39	0.75	0.37 +0.02
5331-74-V7-B-DGN	2.91	-	V 7 +0.001	1.04	0.79 -0.02	0.96	0.08	0.59	0.83	0.53 +0.02
5331-74-V8-B-DGN	2.91	-	V 8 +0.001	1.04	0.79 -0.02	0.96	0.08	0.59	0.83	0.53 +0.02
5331-74-V9-B-DGN	2.91	-	V 9 +0.001	1.04	0.79 -0.02	0.96	0.08	0.59	0.83	0.53 +0.02
5331-74-V10-B-DGN	2.91	-	V 10 +0.001	1.04	0.79 -0.02	0.96	0.08	0.59	0.83	0.53 +0.02
5331-74-M10-B-DGN	2.91	M 10	-	1.04	0.79 -0.02	0.96	0.08	0.59	0.83	0.53 +0.02
5331-74-M12-B-DGN	2.91	M 12	-	1.04	0.79 -0.02	0.96	0.08	0.59	0.83	0.53 +0.02
5331-95-M16-B-DGN	3.74	M 16	-	1.26	0.71 -0.02	1.16	0.18	0.59	1.04	0.53 +0.02
5331-95-V8-B-DGN	3.74	-	V 8 +0.001	1.26	0.71 -0.02	1.16	0.18	0.59	1.04	0.53 +0.02
5331-95-V10-B-DGN	3.74	-	V 10 +0.001	1.26	0.71 -0.02	1.16	0.18	0.59	1.04	0.53 +0.02

Show / Hide columns

Metric

Dimensions in: Inch (change to Metric)

d₁	d₂ Thread		s +0.001 Square				d₃	d₄ -0.02	h₁	h₂	l₁	l₂	l₃ +0.02

1.26	M 5	M 6	V 5	V 6	-	-	0.67	0.43	0.67	0.04	0.31	0.53	0.26
1.57	M 6	M 8	V 6	-	-	-	0.67	0.51	0.67	0.04	0.39	0.57	0.37
1.97	M 8	M 10	V 6	V 7	-	-	0.75	0.63	0.79	0.05	0.39	0.69	0.37
2.48	M 10	M 12	V 6	V 7	V 8	-	0.89	0.79	0.85	0.05	0.39	0.75	0.37
2.91	M 10	M 12	V 7	V 8	V 9	V 10	1.04	0.79	0.96	0.08	0.59	0.83	0.53
3.74	M 16	-	V 8	V 10	-	-	1.26	0.71	1.16	0.18	0.59	1.04	0.53

Build & Price

Selected Part

Part Number

Total (net)

Can$6.84

Delivery time 5-7 days: 101
Contact for delivery time >101

Quantity

Create Project List

Save as Favorites

Please note our quantity discounts (Canadian Dollars).

Min	Max	Price
1	9	Can$6.84
10	249	Can$6.59
250	499	Can$6.22
≥ 500		Can$5.60

Prop 65: Not compliant

WARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov

RoHS: Compliant

This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).

Weight: 0.040 lbs

If weight is not listed, please contact our Sales Department for additional information regarding weight.
Phone: 1-800-397-6993

CAD Download

Other Data Formats

About CAD Downloads

Need Help?

Our service team is available from Monday to Friday between 8:00 AM and 5:30 PM Eastern Time: 800-397-6993

Special Requests | Contact our sales team

JW Winco Services

Request Callback

JW Winco Handbook

Your Contact

EN 5331 Five-Lobed Knobs Technopolymer Plastic, with Brass Square or Tapped Insert, Low Type, with Colored Cover Caps

Product description

Specification

Part Options / Table

Type

Color of the cover cap: DOR

Color of the cover cap: DGR

Color of the cover cap: DGB

Color of the cover cap: DBL

Color of the cover cap: DRT

Color of the cover cap: DGN

Metric

Build & Price

Selected Part

CAD Download

CAD data

Login

Email CAD File

Need Help?

This could also be interesting...

EN 5331

EN 5333

EN 5341

Your Contact

JW Winco Services

Part Number	d₁	d₂ Thread	s +0.001 Square	d₃	d₄ -0.02	h₁	h₂	l₁	l₂	l₃ +0.02

5331-32-M5-B-DOR	1.26	M 5	-	0.67	0.43 -0.02	0.67	0.04	0.31	0.53	0.26 +0.02
5331-32-M6-B-DOR	1.26	M 6	-	0.67	0.43 -0.02	0.67	0.04	0.31	0.53	0.26 +0.02
5331-32-V5-B-DOR	1.26	-	V 5 +0.001	0.67	0.43 -0.02	0.67	0.04	0.31	0.53	0.26 +0.02
5331-32-V6-B-DOR	1.26	-	V 6 +0.001	0.67	0.43 -0.02	0.67	0.04	0.31	0.53	0.26 +0.02
5331-40-V6-B-DOR	1.57	-	V 6 +0.001	0.67	0.51 -0.02	0.67	0.04	0.39	0.57	0.37 +0.02
5331-40-M6-B-DOR	1.57	M 6	-	0.67	0.51 -0.02	0.67	0.04	0.39	0.57	0.37 +0.02
5331-40-M8-B-DOR	1.57	M 8	-	0.67	0.51 -0.02	0.67	0.04	0.39	0.57	0.37 +0.02
5331-50-V6-B-DOR	1.97	-	V 6 +0.001	0.75	0.63 -0.02	0.79	0.05	0.39	0.69	0.37 +0.02
5331-50-V7-B-DOR	1.97	-	V 7 +0.001	0.75	0.63 -0.02	0.79	0.05	0.39	0.69	0.37 +0.02
5331-50-M8-B-DOR	1.97	M 8	-	0.75	0.63 -0.02	0.79	0.05	0.39	0.69	0.37 +0.02
5331-50-M10-B-DOR	1.97	M 10	-	0.75	0.63 -0.02	0.79	0.05	0.39	0.69	0.37 +0.02
5331-63-V6-B-DOR	2.48	-	V 6 +0.001	0.89	0.79 -0.02	0.85	0.05	0.39	0.75	0.37 +0.02
5331-63-V7-B-DOR	2.48	-	V 7 +0.001	0.89	0.79 -0.02	0.85	0.05	0.39	0.75	0.37 +0.02
5331-63-V8-B-DOR	2.48	-	V 8 +0.001	0.89	0.79 -0.02	0.85	0.05	0.39	0.75	0.37 +0.02
5331-63-M10-B-DOR	2.48	M 10	-	0.89	0.79 -0.02	0.85	0.05	0.39	0.75	0.37 +0.02
5331-63-M12-B-DOR	2.48	M 12	-	0.89	0.79 -0.02	0.85	0.05	0.39	0.75	0.37 +0.02
5331-74-V7-B-DOR	2.91	-	V 7 +0.001	1.04	0.79 -0.02	0.96	0.08	0.59	0.83	0.53 +0.02
5331-74-V8-B-DOR	2.91	-	V 8 +0.001	1.04	0.79 -0.02	0.96	0.08	0.59	0.83	0.53 +0.02
5331-74-V9-B-DOR	2.91	-	V 9 +0.001	1.04	0.79 -0.02	0.96	0.08	0.59	0.83	0.53 +0.02
5331-74-V10-B-DOR	2.91	-	V 10 +0.001	1.04	0.79 -0.02	0.96	0.08	0.59	0.83	0.53 +0.02
5331-74-M10-B-DOR	2.91	M 10	-	1.04	0.79 -0.02	0.96	0.08	0.59	0.83	0.53 +0.02
5331-74-M12-B-DOR	2.91	M 12	-	1.04	0.79 -0.02	0.96	0.08	0.59	0.83	0.53 +0.02
5331-95-M16-B-DOR	3.74	M 16	-	1.26	0.71 -0.02	1.16	0.18	0.59	1.04	0.53 +0.02
5331-95-V8-B-DOR	3.74	-	V 8 +0.001	1.26	0.71 -0.02	1.16	0.18	0.59	1.04	0.53 +0.02
5331-95-V10-B-DOR	3.74	-	V 10 +0.001	1.26	0.71 -0.02	1.16	0.18	0.59	1.04	0.53 +0.02
