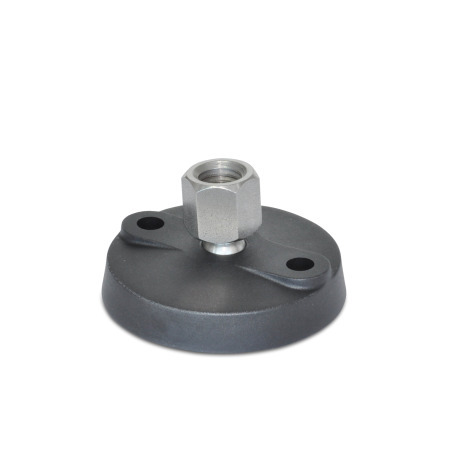

"NY-LEV®" Leveling Mounts WN 9000.1

Type: A - Without rubber pad

Product Family Stainless Steel

Standard parts made of rustproof stainless steel have been designed for use in the food sector, in the chemical industry, for aggressive ambient conditions or for outdoor use.

corrosion-resistant
precise fit
environmentally friendly

Show all Stainless Steel products

Standard Sheet WN 9000.1 Print This Page Stainless Steel Characteristics

Product description

Made in the U.S.A., "NY-LEV^®" leveling mounts WN 9000.1 are a quality and economical solution to your leveling and height adjustment needs.

The tapped socket swivels freely 15° in all directions. Because of the way the tapped socket is manufactured from the hex bar stock, the hex acts as a stop when moving the socket beyond its 15° swivel point; therefore, the socket will not separate from the nylon base.

The optional rubber pad is used for non-skid, noise and vibration reduction. A unique solid squared waffle pattern on the pad provides for a more positive non-skid surface. The rubber pad resists many organic acids, most chemicals, alkalines, salt, water and corrosion.

To insure a proper leveling mount size, divide the machine weight by the number of mounts required. This will equal the pounds or load per mount.

The maximum load ratings for these leveling mounts are based on a calculation of 40% distortion to the rubber pad. This insures the proper application requirements when using the base with the non-skid pad.

Specification

Base
Nylon plastic, glass filled

Tapped socket
Stainless steel AISI 303

Rubber pad
Elastomer, non-skid

RoHS

Selected Part

Part Number A - Without rubber pad	Part Number G - With rubber pad	d₁	d₂	l₁	l₂	l₃	d₃	k	t	A/F	Max. load Without rubber pad	With rubber pad


10NWP7	10NWP7N	1.97	M 10	1.75	0.70	0.125	0.256	1.32	0.375	0.625	4000 lbf (17792.89 N)	800 lbf (3558.58 N)
12NWP7	12NWP7N	1.97	M 12	1.75	0.70	0.125	0.256	1.32	0.500	0.750	4000 lbf (17792.89 N)	800 lbf (3558.58 N)
16NWP7	16NWP7N	1.97	M 16	1.75	0.70	0.125	0.256	1.32	0.560	0.875	4000 lbf (17792.89 N)	800 lbf (3558.58 N)
10NWP8	10NWP8N	3.15	M 10	1.75	0.70	0.125	0.354	2.19	0.375	0.625	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
12NWP8	12NWP8N	3.15	M 12	1.75	0.70	0.125	0.354	2.19	0.500	0.750	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
16NWP8	16NWP8N	3.15	M 16	1.75	0.70	0.125	0.354	2.19	0.560	0.875	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
20NWP8	20NWP8N	3.15	M 20	1.75	0.70	0.125	0.354	2.19	0.625	1.000	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
16NWP9	16NWP9N	4.33	M 16	1.99	0.95	0.125	0.410	2.98	0.560	0.875	7500 lbf (33361.66 N)	2700 lbf (12010.2 N)
20NWP9	20NWP9N	4.33	M 20	2.13	0.95	0.125	0.410	2.98	0.625	1.000	7500 lbf (33361.66 N)	2700 lbf (12010.2 N)
24NWP9	24NWP9N	4.33	M 24	2.42	0.95	0.125	0.410	2.98	0.900	1.250	7500 lbf (33361.66 N)	2700 lbf (12010.2 N)
6TWP7	6TWP7N	1.97	3/8 x 16	1.75	0.70	0.125	0.256	1.32	0.375	0.625	4000 lbf (17792.89 N)	800 lbf (3558.58 N)
8TWP7	8TWP7N	1.97	1/2 x 13	1.75	0.70	0.125	0.256	1.32	0.500	0.750	4000 lbf (17792.89 N)	800 lbf (3558.58 N)
10TWP7	10TWP7N	1.97	5/8 x 11	1.75	0.70	0.125	0.256	1.32	0.560	0.875	4000 lbf (17792.89 N)	800 lbf (3558.58 N)
6TWP8	6TWP8N	3.15	3/8 x 16	1.75	0.70	0.125	0.354	2.19	0.375	0.625	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
8TWP8	8TWP8N	3.15	1/2 x 13	1.75	0.70	0.125	0.354	2.19	0.500	0.750	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
10TWP8	10TWP8N	3.15	5/8 x 11	1.75	0.70	0.125	0.354	2.19	0.560	0.875	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
11TWP8	11TWP8N	3.15	3/4 x 10	1.75	0.70	0.125	0.354	2.19	0.625	1.000	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
10TWP9	10TWP9N	4.33	5/8 x 11	1.99	0.95	0.125	0.410	2.98	0.560	0.875	7500 lbf (33361.66 N)	2700 lbf (12010.2 N)
11TWP9	11TWP9N	4.33	3/4 x 10	2.13	0.95	0.125	0.410	2.98	0.625	1.000	7500 lbf (33361.66 N)	2700 lbf (12010.2 N)
12TWP9	12TWP9N	4.33	1 x 8	2.42	0.95	0.125	0.410	2.98	0.900	1.250	7500 lbf (33361.66 N)	2700 lbf (12010.2 N)

d₁	d₂	l₁	l₂	l₃	d₃	k	t	A/F	Max. load Without rubber pad	With rubber pad

1.97	3/8 x 16	1.75	0.70	0.125	0.256	1.32	0.375	0.625	4000 lbf (17792.89 N)	800 lbf (3558.58 N)
1.97	1/2 x 13	1.75	0.70	0.125	0.256	1.32	0.500	0.750	4000 lbf (17792.89 N)	800 lbf (3558.58 N)
1.97	5/8 x 11	1.75	0.70	0.125	0.256	1.32	0.560	0.875	4000 lbf (17792.89 N)	800 lbf (3558.58 N)
3.15	3/8 x 16	1.75	0.70	0.125	0.354	2.19	0.375	0.625	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
3.15	1/2 x 13	1.75	0.70	0.125	0.354	2.19	0.500	0.750	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
3.15	5/8 x 11	1.75	0.70	0.125	0.354	2.19	0.560	0.875	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
3.15	3/4 x 10	1.75	0.70	0.125	0.354	2.19	0.625	1.000	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
4.33	5/8 x 11	1.99	0.95	0.125	0.410	2.98	0.560	0.875	7500 lbf (33361.66 N)	2700 lbf (12010.2 N)
4.33	3/4 x 10	2.13	0.95	0.125	0.410	2.98	0.625	1.000	7500 lbf (33361.66 N)	2700 lbf (12010.2 N)
4.33	1 x 8	2.42	0.95	0.125	0.410	2.98	0.900	1.250	7500 lbf (33361.66 N)	2700 lbf (12010.2 N)

d₁	d₂	l₁	l₂	l₃	d₃	k	t	A/F	Max. load Without rubber pad	With rubber pad

1.97	M 10	1.75	0.70	0.125	0.256	1.32	0.375	0.625	4000 lbf (17792.89 N)	800 lbf (3558.58 N)
1.97	M 12	1.75	0.70	0.125	0.256	1.32	0.500	0.750	4000 lbf (17792.89 N)	800 lbf (3558.58 N)
1.97	M 16	1.75	0.70	0.125	0.256	1.32	0.560	0.875	4000 lbf (17792.89 N)	800 lbf (3558.58 N)
3.15	M 10	1.75	0.70	0.125	0.354	2.19	0.375	0.625	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
3.15	M 12	1.75	0.70	0.125	0.354	2.19	0.500	0.750	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
3.15	M 16	1.75	0.70	0.125	0.354	2.19	0.560	0.875	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
3.15	M 20	1.75	0.70	0.125	0.354	2.19	0.625	1.000	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
4.33	M 16	1.99	0.95	0.125	0.410	2.98	0.560	0.875	7500 lbf (33361.66 N)	2700 lbf (12010.2 N)
4.33	M 20	2.13	0.95	0.125	0.410	2.98	0.625	1.000	7500 lbf (33361.66 N)	2700 lbf (12010.2 N)
4.33	M 24	2.42	0.95	0.125	0.410	2.98	0.900	1.250	7500 lbf (33361.66 N)	2700 lbf (12010.2 N)
