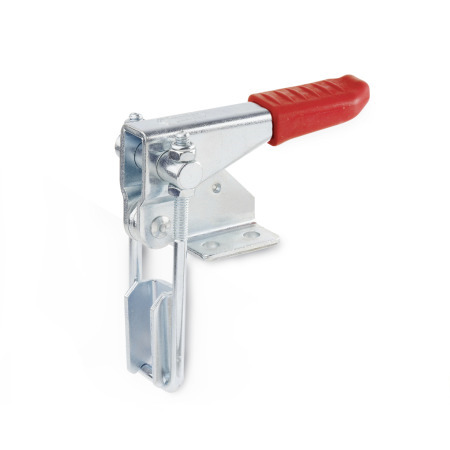

GN 851.1 Vertical Latch Type Toggle Clamps Steel, with Horizontal Mounting Base

Material: ST - Steel
Type: T3 - With U-bolt latch, with catch

Standard Sheet GN 851.1 Print This Page General Information on Toggle Clamps

Product description

The stroke of the U-bolt latch of vertical latch type toggle clamps GN 851.1 can be adjusted within its range.

In the clamped position the U-bolt latch with clamping arm is perpendicular to the clamping arm and the plane of the operating handle.

In addition to the standard lengths of the U-bolt latches shown in the table, a variety of other lengths are also available under the GN 951.1 series.

Specification

Toggle clamp
- Case-hardened steel C10
  Zinc plated, blue passivated finish
- U-bolt latch
  Steel St 37
  Zinc plated, blue passivated finish

All moving parts lubricated with special grease

Hand grip
High quality, oil resistant red plastic

RoHS

GN 851.1 Steel Vertical Latch Type Toggle Clamps, with Horizontal Mounting Base sketch

Hide technical drawing

Part Options / Table

Type

T3	With U-bolt latch, with catch
T	Without U-bolt latch, with catch

Part Number	Size	F_H Holding capacity	a₁	a₂	b₁	b₂	b₃	b₄	b₅	d₁	d₂	h₁	h₂

851.1-160-T3	160	360 lbf (1600 N)	0.20	0.98	1.02	1.38	0.83	1.00	0.55	M 4	0.17	1.46	0.39
851.1-160-T	160	360 lbf (1600 N)	0.20	0.98	1.02	1.38	0.83	1.00	0.55	M 4	0.17	1.46	0.39
851.1-320-T3	320	719 lbf (3200 N)	0.31	1.46	1.42	1.73	1.26	1.46	0.87	M 6	0.26	2.13	0.59
851.1-320-T	320	719 lbf (3200 N)	0.31	1.46	1.42	1.73	1.26	1.46	0.87	M 6	0.26	2.13	0.59
851.1-700-T3	700	1574 lbf (7000 N)	0.51	1.77	2.05	2.13	1.50	1.91	1.02	M 8	0.33	2.64	0.91
851.1-700-T	700	1574 lbf (7000 N)	0.51	1.77	2.05	2.13	1.50	1.91	1.02	M 8	0.33	2.64	0.91

Show / Hide columns

Metric

Dimensions in: Inch (change to Metric)

Size	F_H Holding capacity	a₁	a₂	b₁	b₂	b₃	b₄	b₅	d₁	d₂	h₁	h₂

160	360 lbf (1600 N)	0.20	0.98	1.02	1.38	0.83	1.00	0.55	M 4	0.17	1.46	0.39
320	719 lbf (3200 N)	0.31	1.46	1.42	1.73	1.26	1.46	0.87	M 6	0.26	2.13	0.59
700	1574 lbf (7000 N)	0.51	1.77	2.05	2.13	1.50	1.91	1.02	M 8	0.33	2.64	0.91

Show / Hide columns

Dimensions in: Inch (change to Metric)

Size	l₁ ≈	l₂ min.	m₁	m₂	m₃	m₄	m₅	r ≈ at w₂ = 0	s	w₁ Stroke	w₂ ≈ Adjustable range

160	2.68	0.18	0.87	0.26	0.51	0.26	0.56	2.05	0.08	1.26	0.39
320	4.17	0.24	1.00	0.33	0.75	0.41	0.81	3.07	0.12	2.09	0.83
700	5.79	0.31	1.44	0.39	1.26	0.53	1.06	4.02	0.14	2.52	0.98

Build & Price

Size

160

320

700

Type

T - Without U-bolt latch, with catch

T3 - With U-bolt latch, with catch

Selected Part

Part Number

Total (net)

Can$22.95

In Stock: 10

In Stock

Quantity

Create Project List

Save as Favorites

Please note our quantity discounts (Canadian Dollars).

Min	Max	Price
1	49	Can$22.95
50	99	Can$21.04
100	249	Can$19.12
≥ 250		Can$17.21

Prop 65: Not compliant

WARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov

RoHS: Compliant

This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).

Weight: 0.242 lbs

If weight is not listed, please contact our Sales Department for additional information regarding weight.
