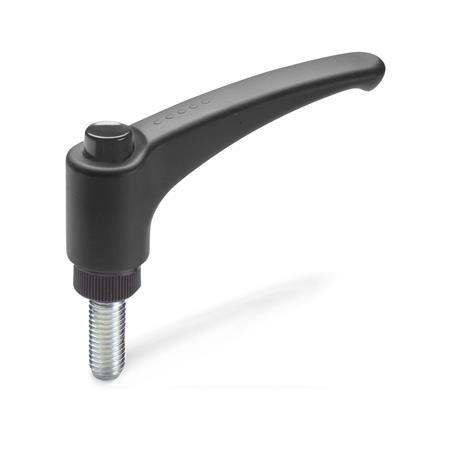

EN 603 Adjustable Levers Plastic, Threaded Stud Type, with Steel Components, with Push Button, Ergostyle®

The slightly arched ergonomic shape of the adjustable levers EN 603 gives the operator a comfortable and safe grip, while the thumb rests naturally on the push button.

These levers have proven to be ideal wherever parts have to be clamped in a confined space or in a particular lever position. The insert is connected to the lever via serrations that can easily be disengaged.

Pulling the lever upwards disengages the serrations, allowing it to be swiveled to the ideal clamping position. When releasing the lever, the mating serrations of the lever and the insert automatically re-engage via a spring and push button that holds the assembly together.

Resistant to solvents, oils, grease and other chemical agents.

Specification

Lever body
Plastic, Polyamide (PA)

• Glass fiber reinforced
• Operating temperature
  -22 °F to +266 °F (-30 °C to +130 °C)
• Black-gray, matte finish, similar to RAL 7021

Threaded stud
Plastic, Polyamide (PA)

• Glass fiber reinforced
• Black
• Threaded stud
  Steel zinc plated, blue passivated finish

Push button
Plastic, Polyamide (PA)

• Black-gray, RAL 7021, shiny finishDSG
• Orange, RAL 2004, shiny finishDOR
• Gray, RAL 7035, shiny finishDGR
• Yellow, RAL 1021, shiny finishDGB
• Blue, RAL 5024, shiny finishDBL
• Red, RAL 3000, shiny finishDRT
• Green, RAL 6017, shiny finishDGN

RoHS
